Family Selection / Meters / MGE-40 · ELECTRONIC

MGE-40 · ELECTRONIC

2-40 l/min · ±0.5% · F1/2"

Lubricant Lubricant
Dizel Dizel

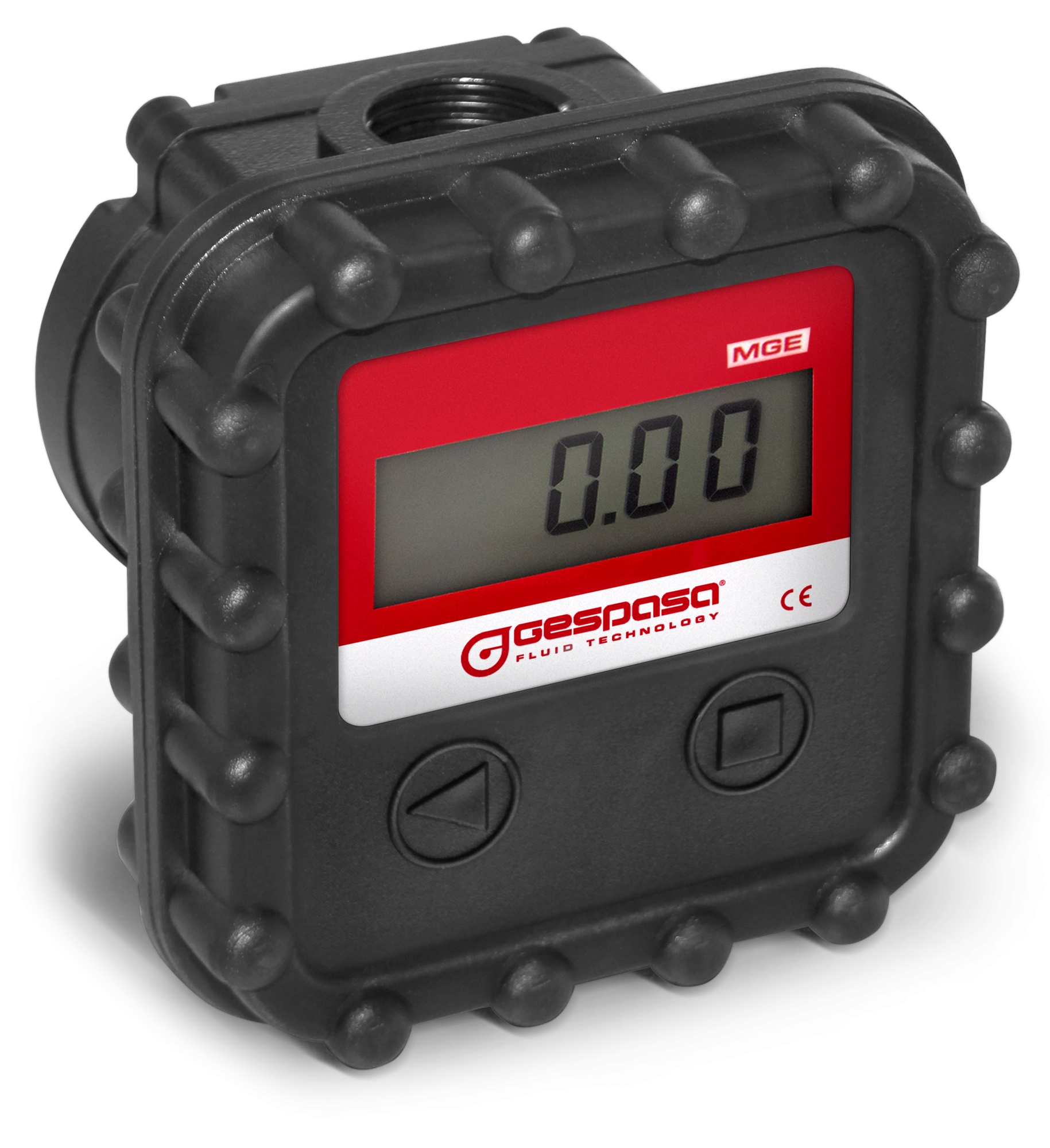

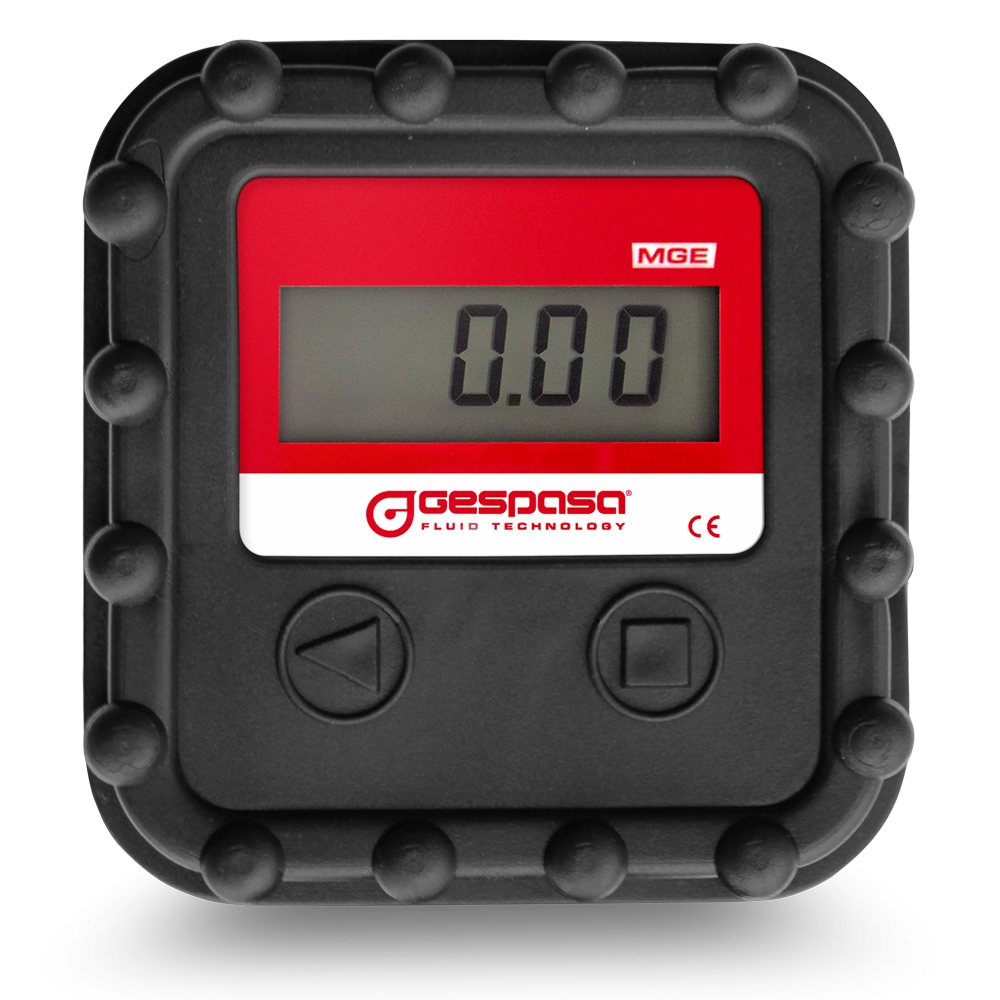

MGE-40 · Electronic gear meter
32350-CF00000

Electronic meter with aluminium measuring chamber, with high accuracy oval gears, with Display-LCD. It is included a removable protective case made of flexible rubber and with high Display button protection.

Technical data:

  • Flow (approx.):
    • from 2 to 40 l/min (lubricant)
    • from 2 to 50 l/min (diesel)
  • 5-digit totalizer
  • It stores the litres of the last service.
  • Maximum pressure: 50 bar
  • Min./max. temperature: -10 ºC / +50 ºC
  • Accuracy: ±0.5 %
  • Inlet/outlet connection thread: F1/2" GAS (BSP)
  • It is suitable for the lubricant measuring up to SAE-140 density
  • Feeding by button battery of long duration
  • Low battery display
  • It has calibration parameters and stored litre totalizer in a PERMANENT MEMORY.

Size and weight (approx.):

  • Dim.: 85x60x85 mm (length x width x height)
  • Weight: 0.5 kg
