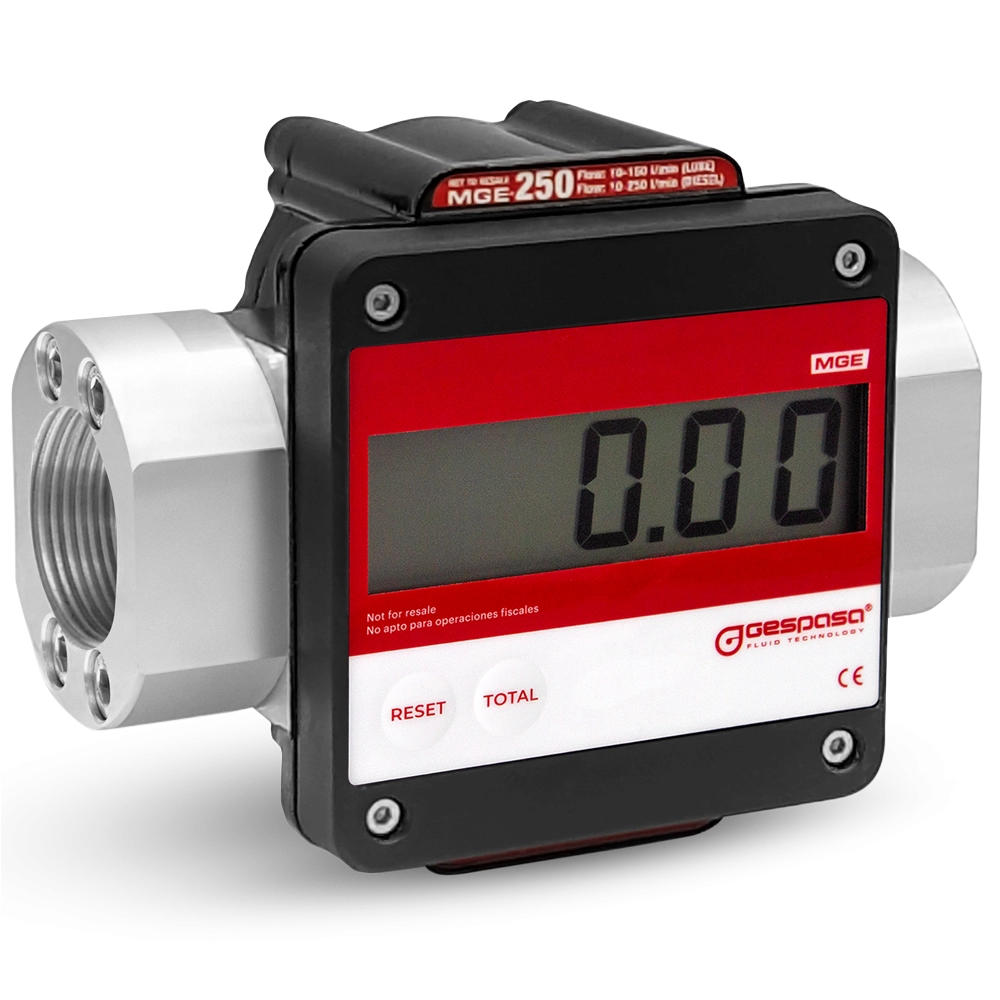

Electronic meter with aluminium measuring chamber, with high accuracy oval gears.
Technical data:
- Flow (approx.):
- 10-250 l/min (diesel)
- 10-150 l/min (lubricant)
- Tropicalised electronics
- 5-digit totalizer
- It stores the litres of the last service.
- Maximum pressure: 45 bar
- Min./Max. temperature: -10 ºC / +50 ºC
- Accuracy: ±0.5 %
- Inlet/outlet connection connection: F1" or 1 1/2" (flange) (according to the model)
- It is suitable for the lubricant measuring up to SAE-140 density.
- Feeding by button battery of long duration
- Low battery display
- It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY.
