MGE-180HP

10-180 l/min · 150 bar 1" NPT

Lubricant Lubricant

Yeni

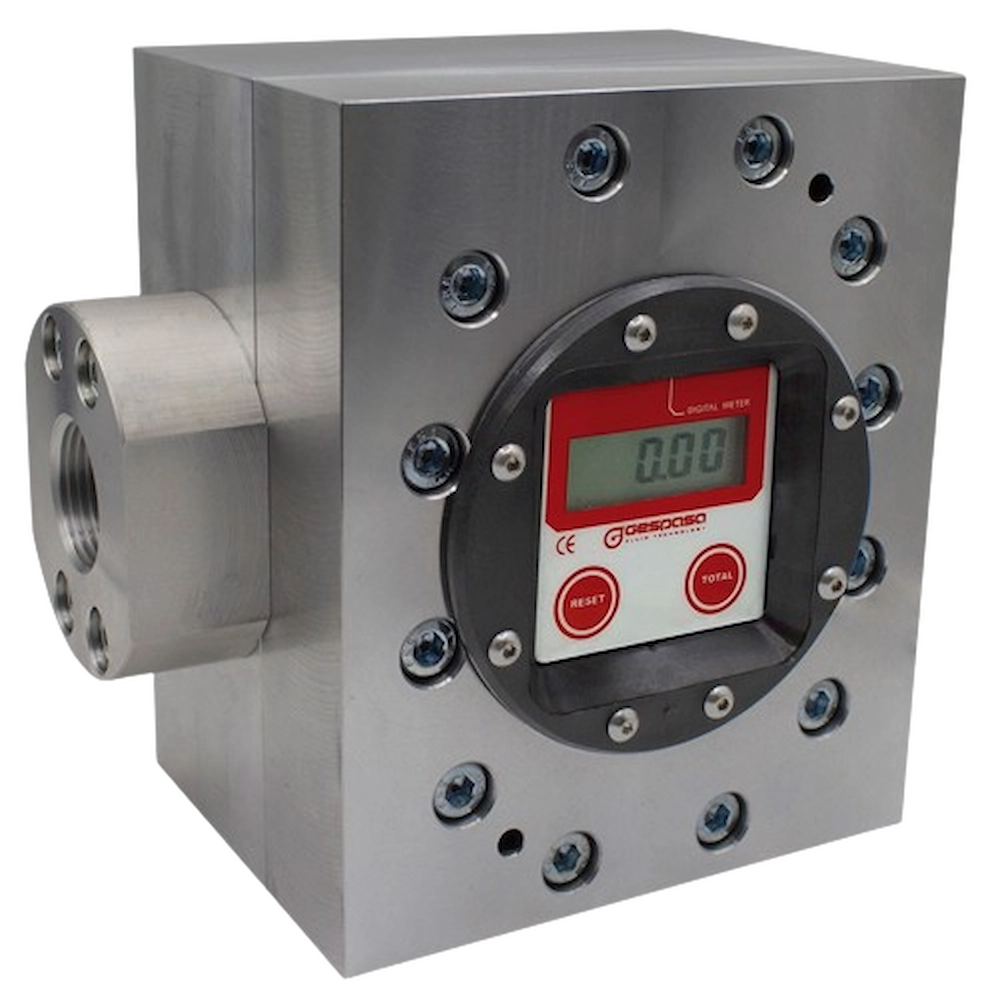

MGE-180HP · Electronic high pressure gear meter
32506-CF00000

Electronic high pressure meter with aluminium measuring chamber, with oval gear, with Display-LCD.

Technical data:

  • Flow (approx.): 10-180 l/min
  • 5-digit display
  • It saves the litres of the last supply.
  • Maximum pressure: 150 bar
  • Min./max. Temperature: - 10 ºC / +50 ºC
  • Accuracy: ±1 %
  • Inlet/outlect connection: F1" NPT
  • Feeding by button battery of long duration
  • Low battery display
  • It has calibration parameters and stored litre totalizer in a PERMANENT MEMORY.
Size and weight (approx.):
  • Dim.: 205x140x175 (length x width x height)
  • Weight: 7.45
