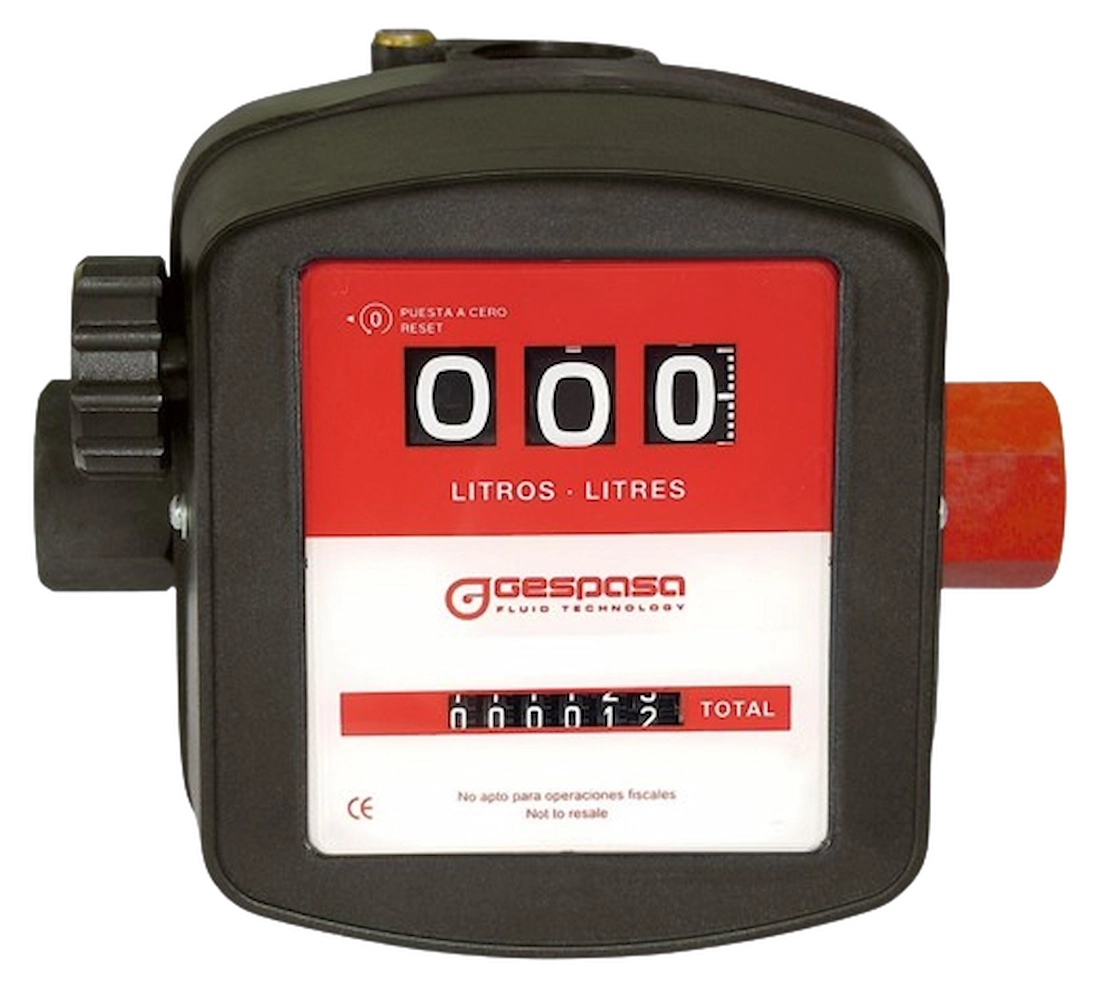

- Fireproof measuring chamber with oscillant disc
- Flow: 15-90 l/min
- Accuracy: ±1 %
- Partial indicator of 3 digits and totalizer of 6 digits
- Maximum operation pressure: 3,5 bar
- Maximum temperature: 60 ºC
- Minimum temperature: -10 ºC
- Polyamide + Fibreglass housing
- Connection 1" GAS (BSP) with 3 inlets and 2 outlets
- It is supplied with 2 additional Male/Female 1" GAS (BSP) adapters (other threads under order). The 1" GAS (BSP) red adapter has built-in the filter-sieve of 350 µm (micron).
- It is suitable for hydrocarbon liquid (please, consult other liquids).
- For private use, not suitable for fiscal operations
Size and weight (approx.):
- Dim.: 150x150x170 mm (length x width x height)
- Weight: 1.6 kg
