AdBlue/DEF Series M METERS

55 to 550 l/min · ±0.2 % · 2"

Adblue/Def Adblue/Def

Yeni

  • The M series meter is a positive displacement meter for liquids. It is designed for liquid measurement both in transfer and process control. Because of its design, it is easy to keep and can suit a wide range of applications.
  • The M series rotary flow meter has a simple and efficient design consisting of a housing and three rotors that rotate in unison (at the same time) within the measuring chamber.
  • The absence of wear, from no metal-to-metal contact inside the chamber, eliminates any deterioration in accuracy and provides a long service life.
  • The rotors are composed of bearings inserted into two bearing plates, where at the end of each rotor shaft there is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, which gives a consistent and superior measurement of accuracy.

FEATURES

  • It has built in an air eliminator.
  • The excellent stepless adjusting device allows a micro-adjustment of the meter.
  • High accuracy and repeatabiliy over the widest range of flow, superior accuracy at constant flow;
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
  • Accuracy regardless of the pressure fluctuations, temperature variation, viscosity;
  • Stainless steel body for AdBlue/DEF application;
  • Standard measurement in Litres / US GAL / IMP GAL (please, ask for it when ordering);
  • It is available its pulser version;
  • It includes a strainer with a mesh of 80/170 μm (micron).

OPTIONAL

  • Pulser
  • GE · Electronic console
  • GK-7Plus · Own consumptio controller with telematic shipment
  • Preset and automatic stop
  • Ticket printer

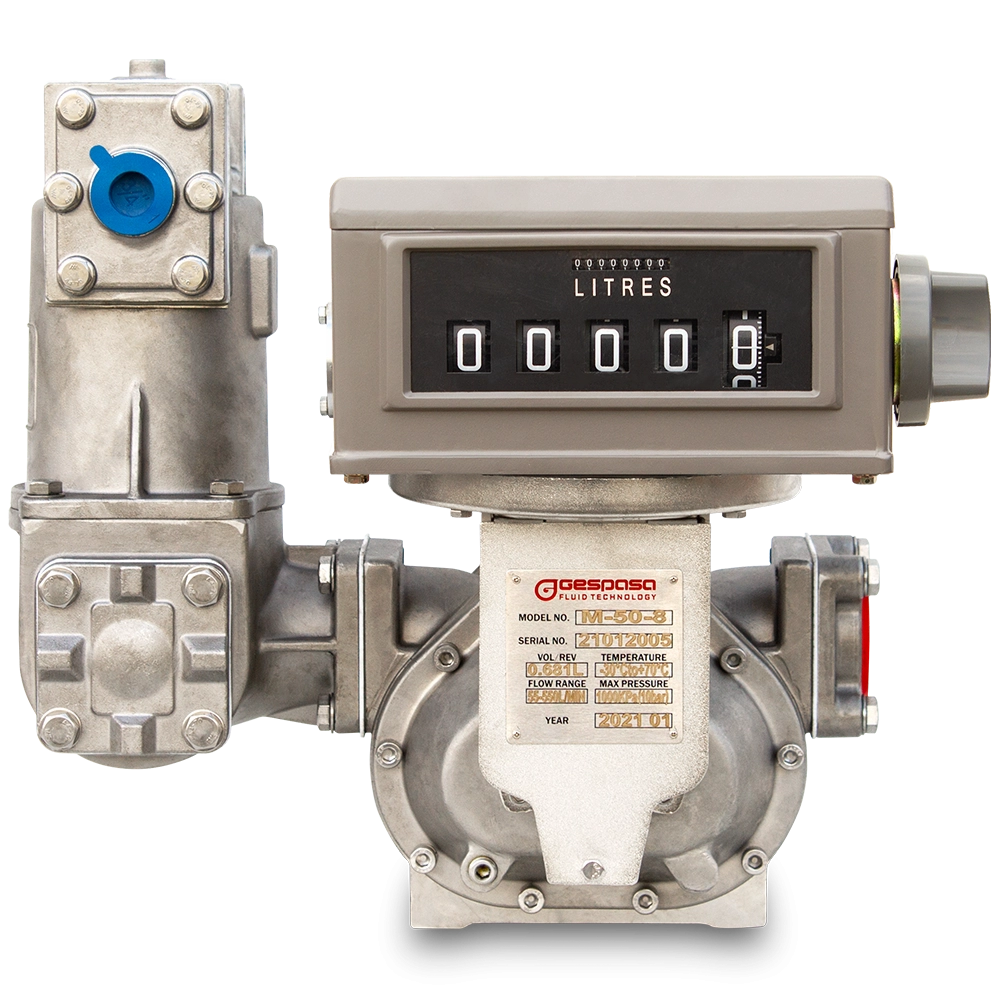

M-50 INOX · HIGH FLOW MECHANICAL INOX METER
808318040
  • Flow: 55-550 l/min
  • Volume per round: 0.681 L
  • Size: 2"
  • Working temperature: -40 ºC · 71 ºC
  • Max. pressure: 10 bar
  • Accuracy: 0.2 %
  • Repeat: < 0.07 %
  • Packing size: 510x460x490 mm (LxWxH)
  • Gross weight: 28 kg
