- The ATG level gauge is valid for all type of fuel and provides continuous and highly accurate readings of liquids inside of the tank because of the magnetostrictive technology.
APPLICATION

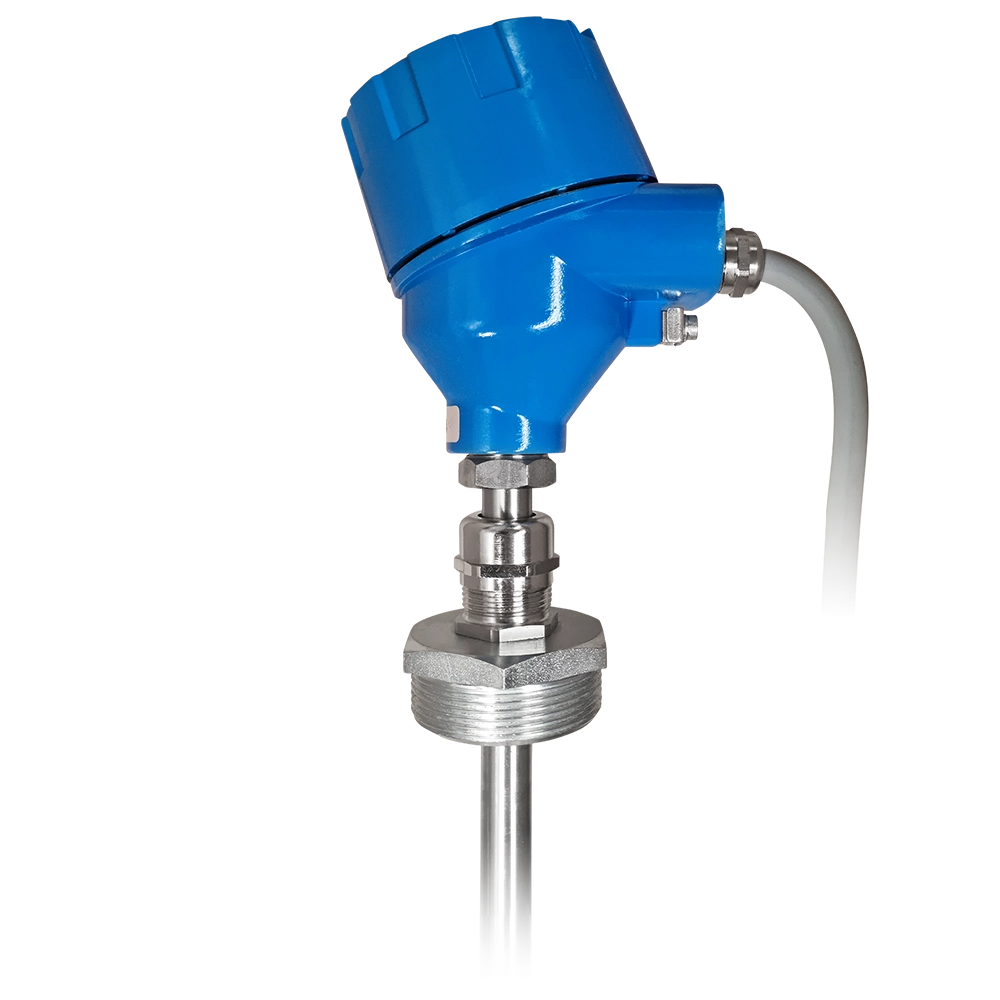

- GESPASA ATG magnetosrestrictive level gauge with direct connection to Tank Modem Plus.
- The modem offers automatic and wirelesscommunication to the cloud software, www.dieselplus.net, and the APP, Dieselplus Tanks, where it is possible to consult the level of your tanks.
- Suitable for all type of fuel without float change.
- It detects the level of water and fuel.
- Temperature sensor.
STANDARD FEATURES

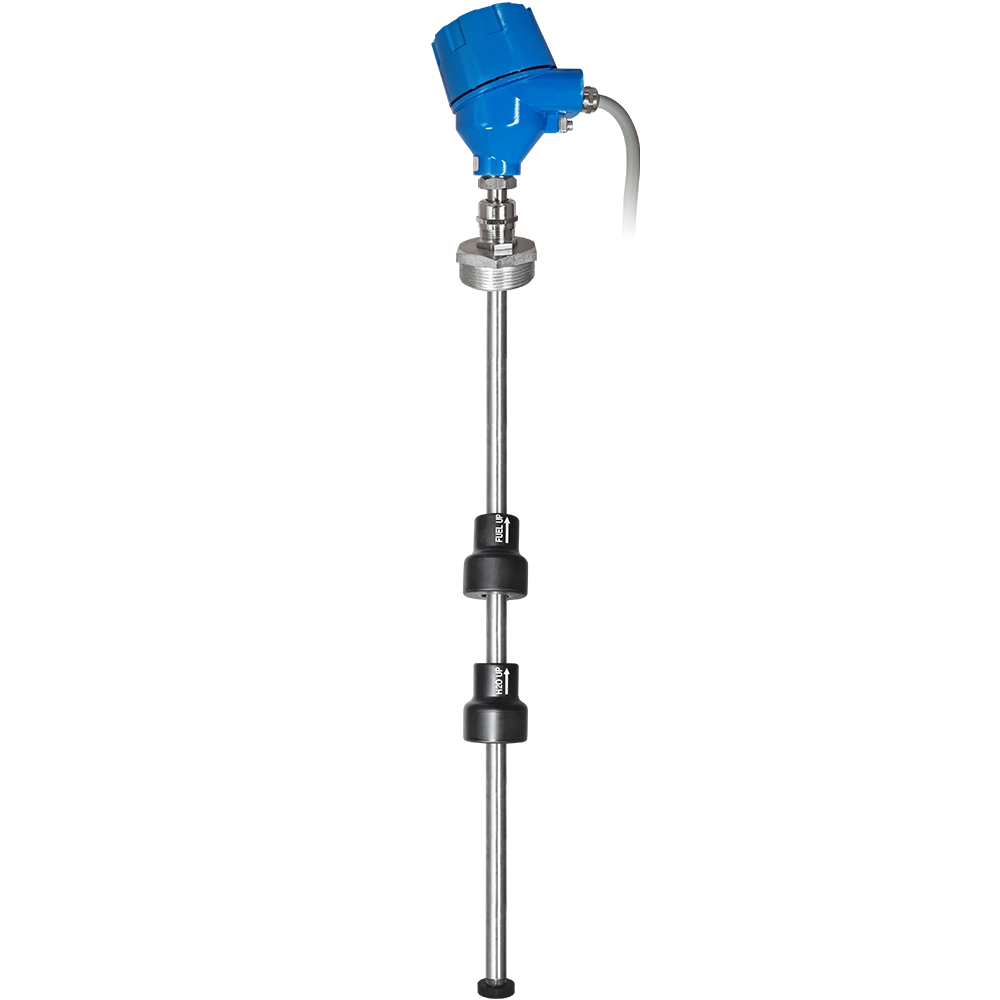

- 1 fuel float (diesel or petrol, equally) and 1 water float
- Remote configuraton of the operation parameters
- Riser or adjustable connection to the tank
- Stainless steel shaft
- Measure range: 500 to 5,500 mm
- Calculation of data relating to: the product level, the water presence (both given in measurements of 0.01 mm) and the product temperature
- Standard length of the gauge (mm): 1,500, 1,750, 2,000, 2,250, 2,500, 2,750, 3,000, 3,250 and 3,500.*
*It is possible to manufacture the gauge with a customised size.
TECHNICAL FEATURES
- Accuracy: ±0,5 mm
- Standard Resolution: ±0,01 mm
- Working temperature: -20 ºC / +70 ºC
- Enclosure of Ø50 mm in stainless steel, submersible up to 1,200 mm for 24 hours
- 7/8" circular connector with 2 m Ø9 mm cable, hydrocarbon resistant in accordance with ENI specification
- Power supply: 12 VDC
- Digigal inputs: 4
- Antenna / serial port: RS-485 with direct connection to Tank Modem Plus
