PARTICLE COUNTER

Lubricant Lubricant
Dizel Dizel

Yeni

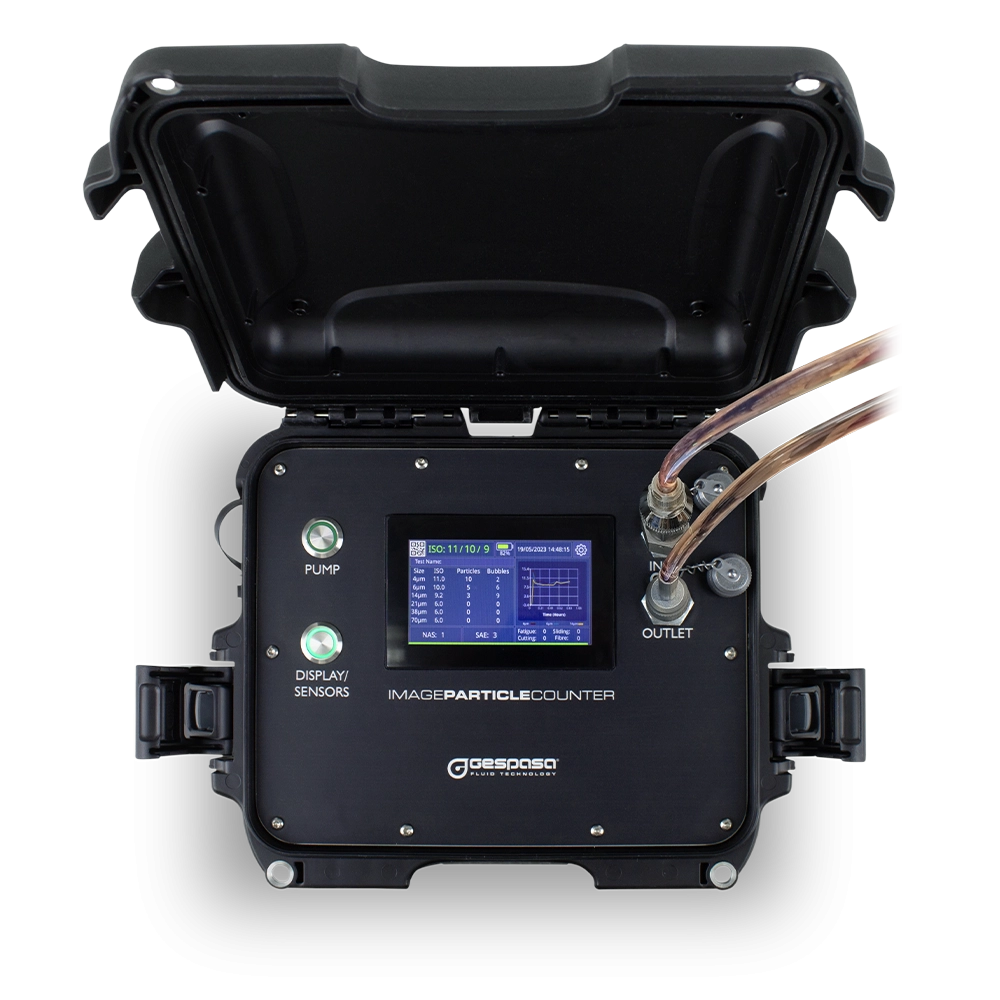

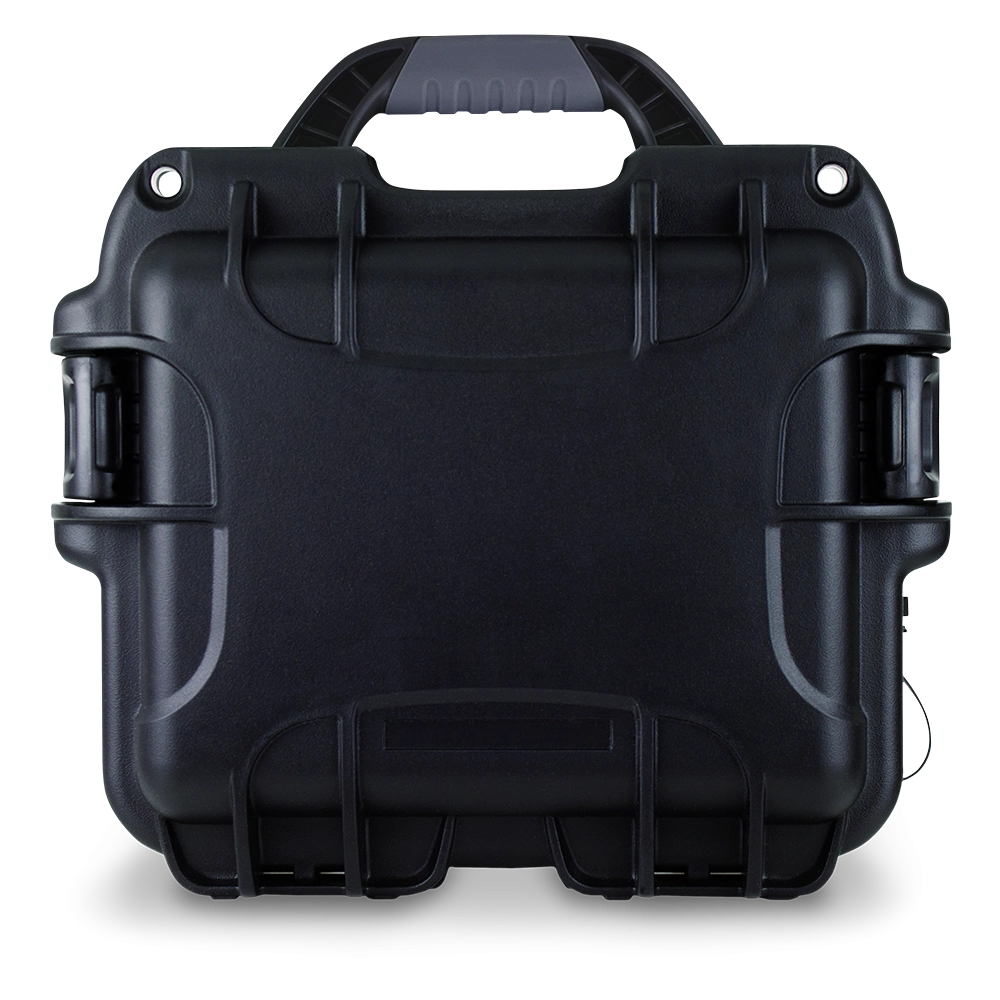

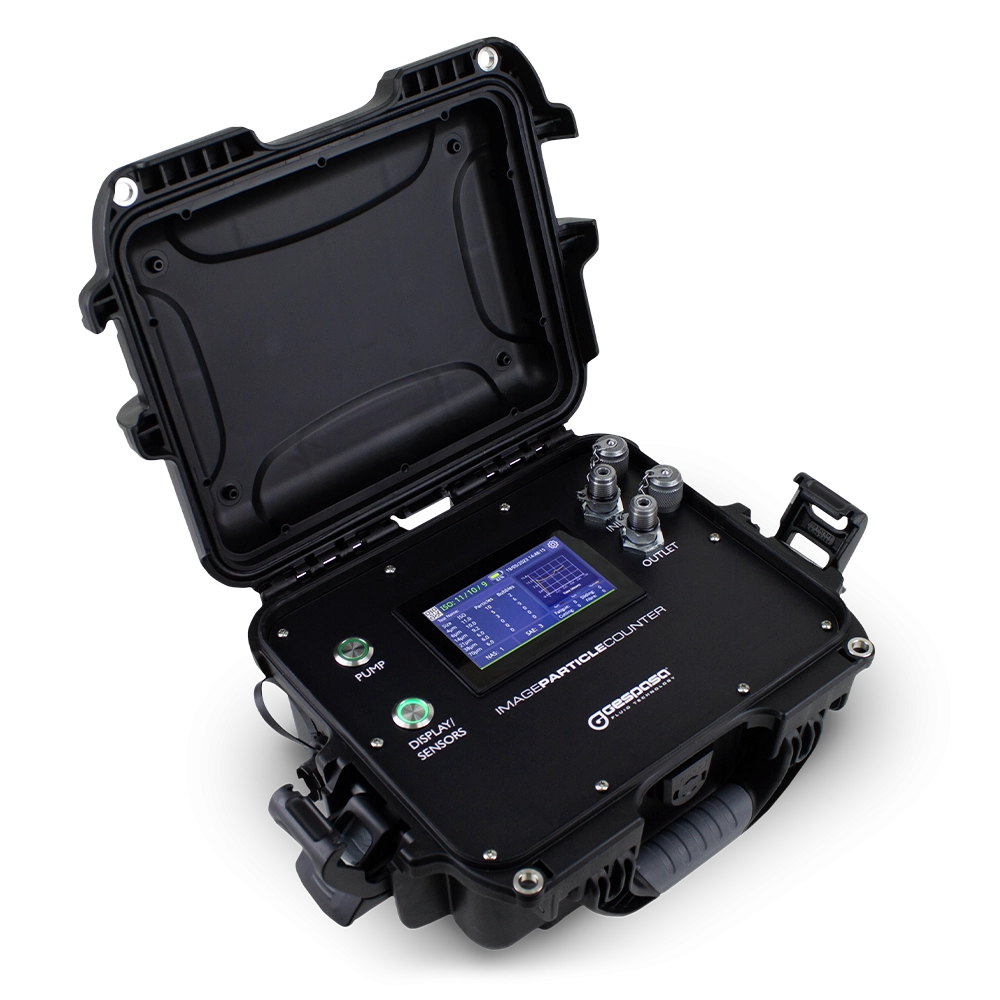

Portable particle counter
808316051
Particle counter for fixed installation
808316052

Features

  • Portable and autonomous measuring system (available the version for fixed installation)
  • Real-time level reading of ISO, NAS and SAE particles in diesel and lubricant
  • Analysis of the fluids stored in tanks or sample bottles
  • Detail of the size and ISO classification of particles
  • Detection of air bubbles and water droplets

Use

  • Ideal for the measuring the content of solid particles in diesel, heavy lubricant or cold motor oil or oil with viscosity up to 320 cSt
  • Measurement of pressurised systems using a high pressure adapter (up to 350 bar)
  • Results in ISO 4406 cleanliness standard
  • Particle measurements of 4, 6, 14, 21, 38 and 70 µm (micron)
  • The results are not affected by phantom particles or additives.
  • It includes a software that allows to export the data in *.csv or *.pdf format and print them as tables or graphics.
  • Configuration of alarm levels, indicating whether desired cleanliness levels are achieved.

Technical Data

  • Working temperature: 0-50 ºC
  • Viscosity range: up to 320 cSt
  • Pressure: 2.5 bar
  • IP-55 protection
  • Connection: ¼"
  • Rechargeable battery
