- It is suitable for particle microfiltration up to 15 µm (micron). The filtering paper is water absorbent.
- Optional: 50 µm (micron) for Biodiesel (non-absorbent)
- It is possible to drain through the manual drain valve placed in the microfilter bottom.

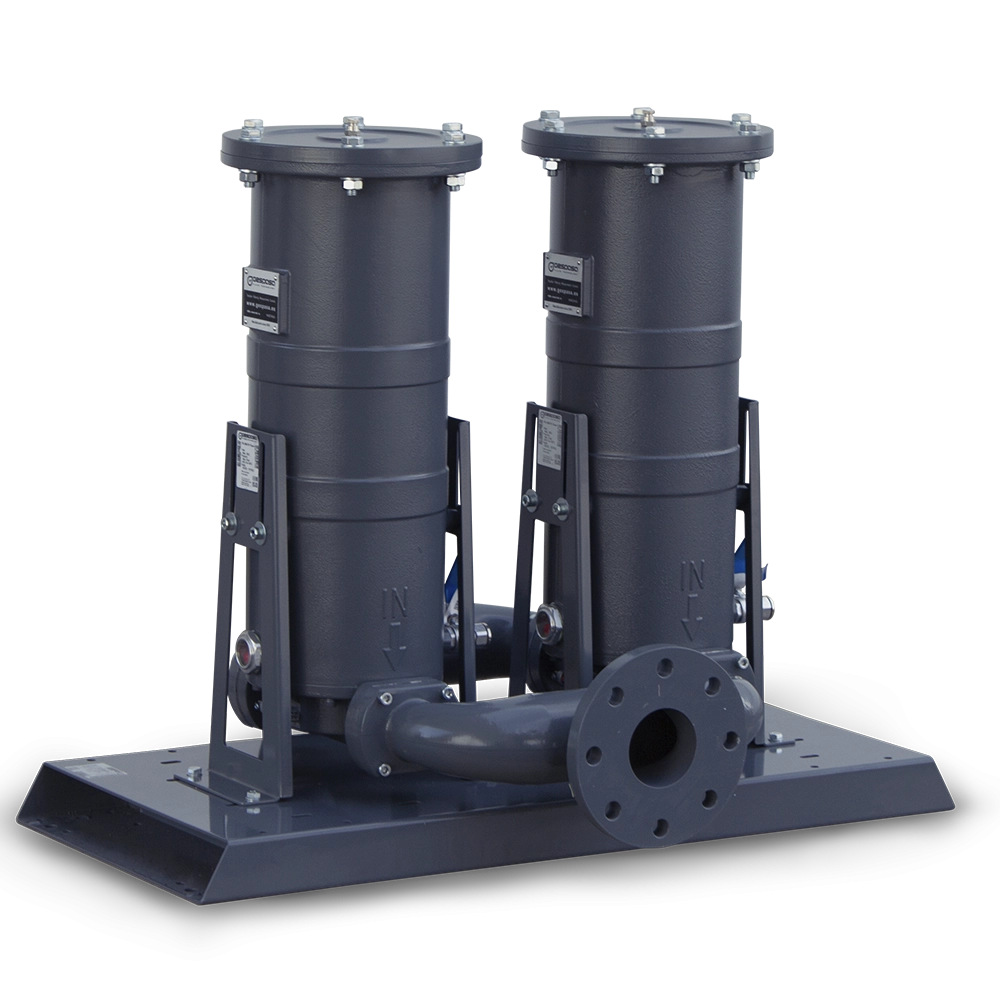

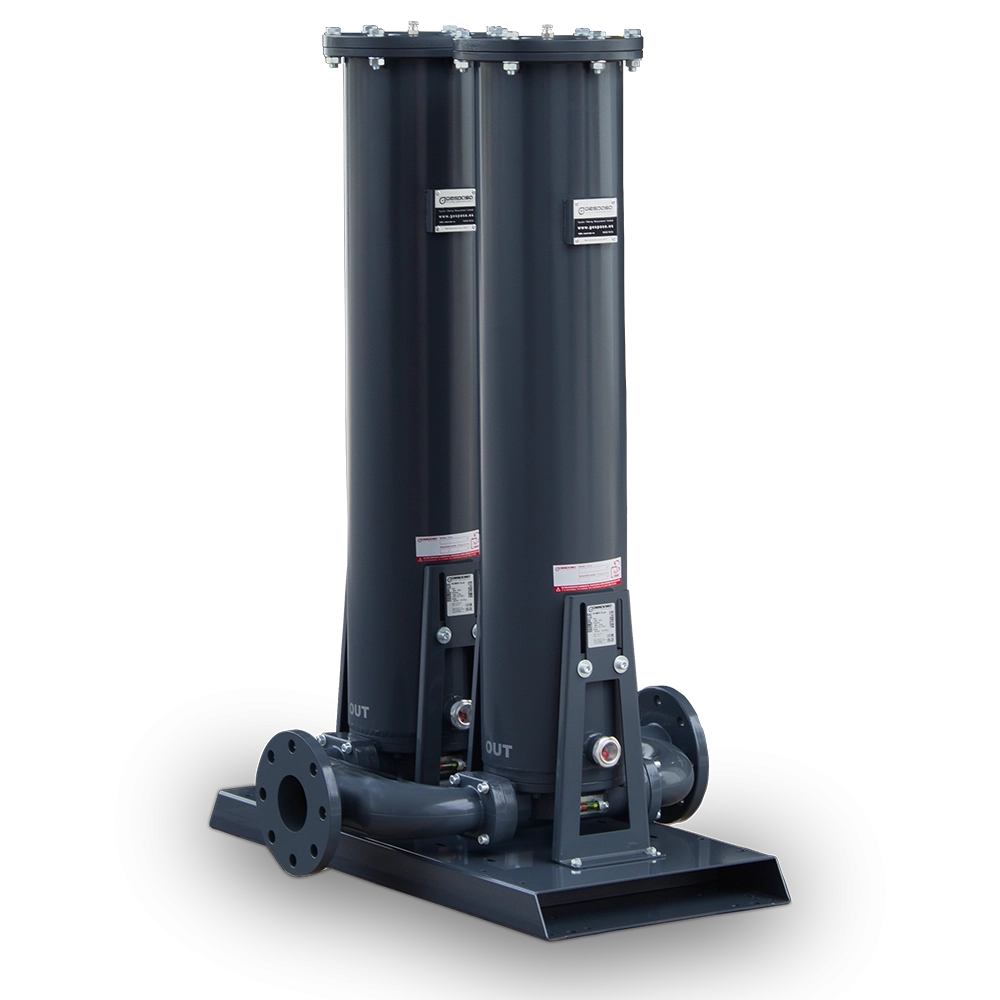

- Optional with 2 FG-300 or FG-450 elements in parallel to get more flow rate: 700 or 1,000 l/min
- This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.
- Differential manometer that shows when the level of the filter is exceeded.
- The microfilter is supplied with the filtering element installed.
Technical features: - Filtration: 15 µm (micron) *Ask for other models
- Capacity: 15 litres in the housing interior
- Flow: 700 or 1,000 l/min (according to the number of FG-300 or FG-450 elements)
- Microfilter cover and body: Aluminium
- Differential manometer
- Inlet / Outlet Connections: 3"
- Manual lower drain valve
- Installation: in the suction or delivery of the pumping kit
- Maximum operating pressure: 6 bar
- Maximum housing pressure: 10 bar
Dimensions (approx.):
- FG-700: 900x650x775 mm (LxWxH)
- FG-1000: 900x650x1,230 mm (LxWxH)

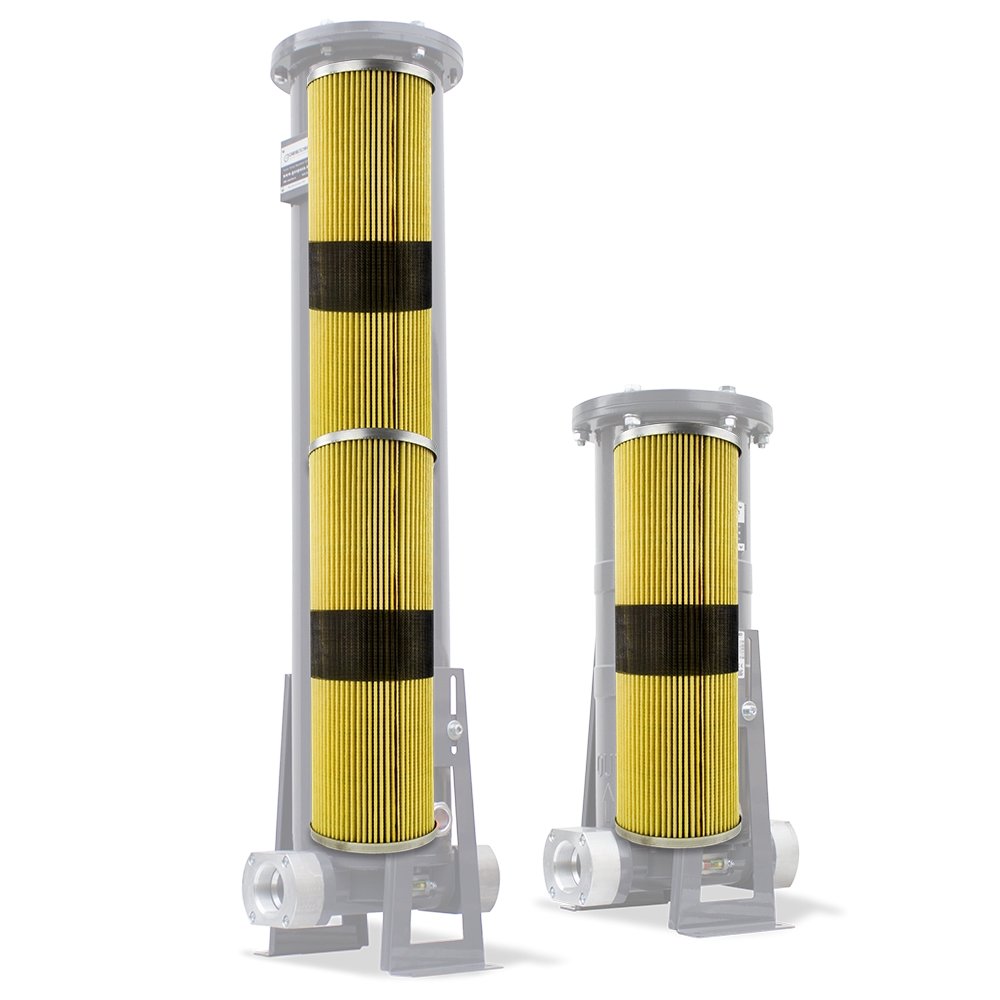

FG-300-450 filtering spare parts

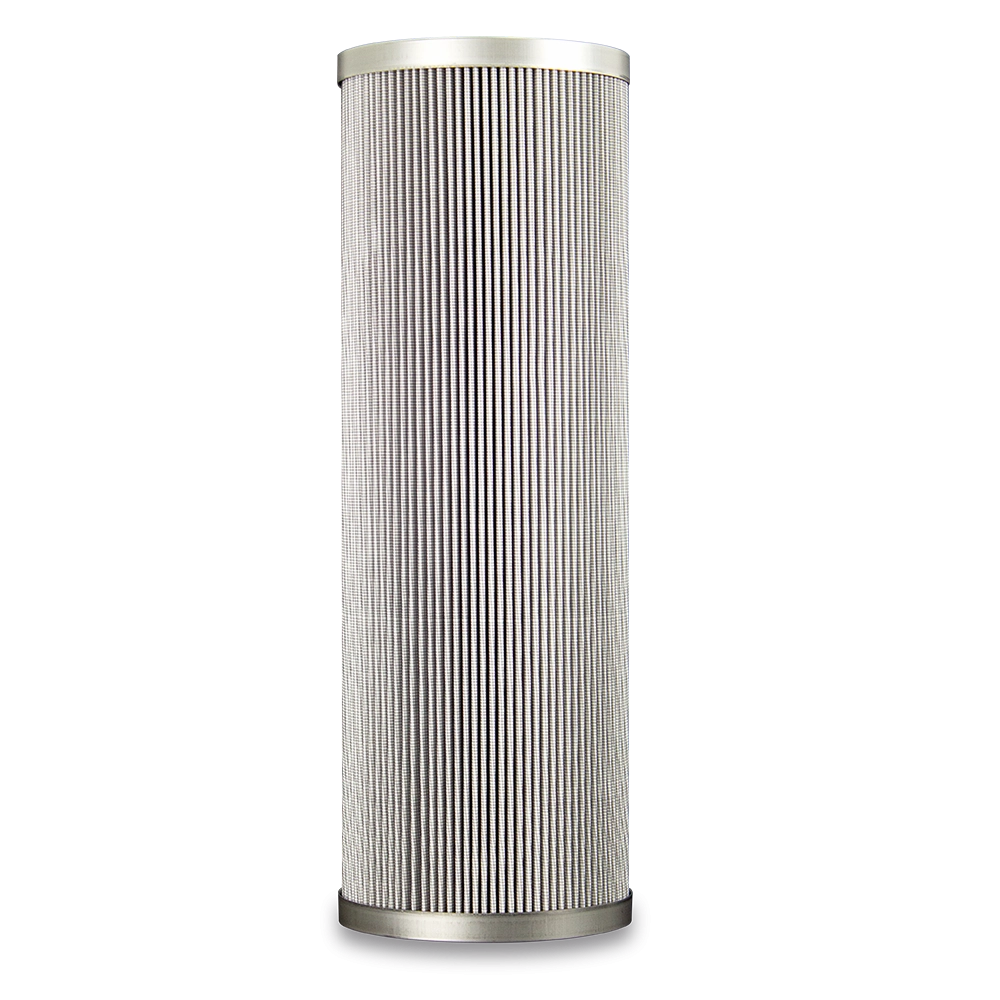

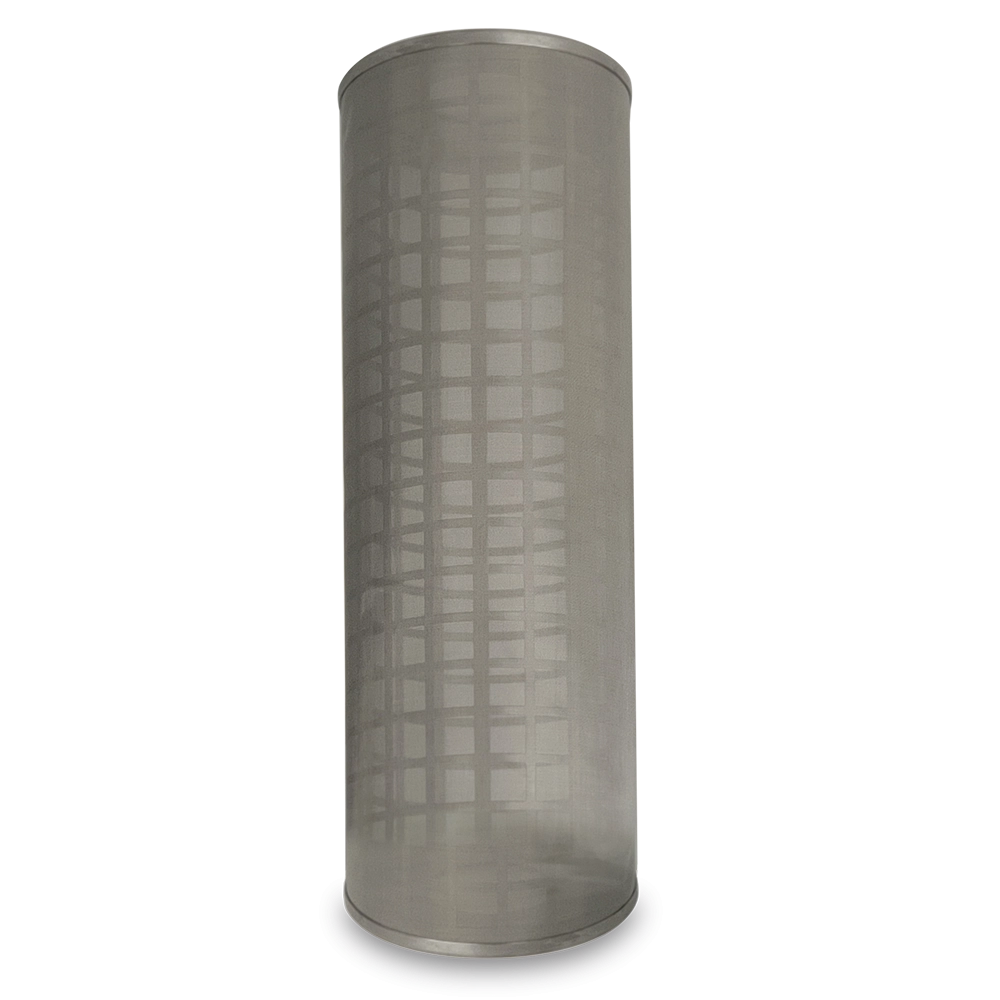

- 2.5 μm (micron) Fibreglass filtering element spare kit + joints ß2.5≥ 1000661908008- FG-300-450/3 ß10 ≥ 1000 · Absorbent filtering spare kit of 3 µm (micron) + joints661908002- FG-300-450/5 ß20 ≥ 1000 · Absorbent filtering spare kit of 5 µm (micron) + joints661908003- FG-300-450/15 ß30 ≥ 1000 · Absorbent filtering spare kit of 15 µm (micron) + joints661908000- FG-300-450/50 ß50 ≥ 1000 · Impact filtering spare kit of 50 µm (micron) + joints661908001- 100 µm (miron) stainless steel mesh filtering element kit + joints661908006- 200 µm (miron) stainless steel mesh filtering element kit + joints661908007
