More capacity, better filtration!

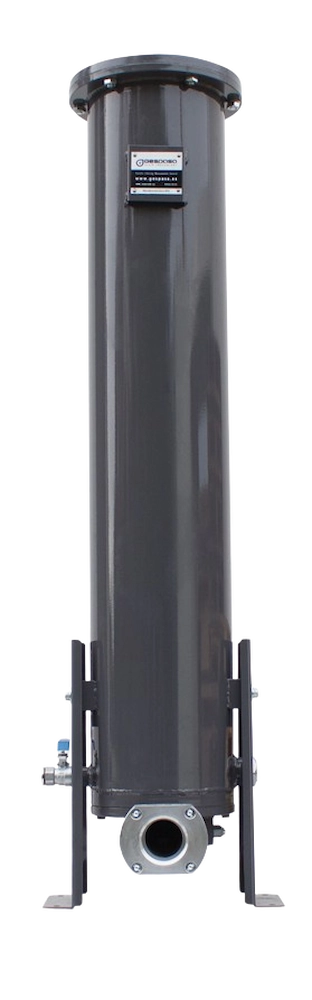

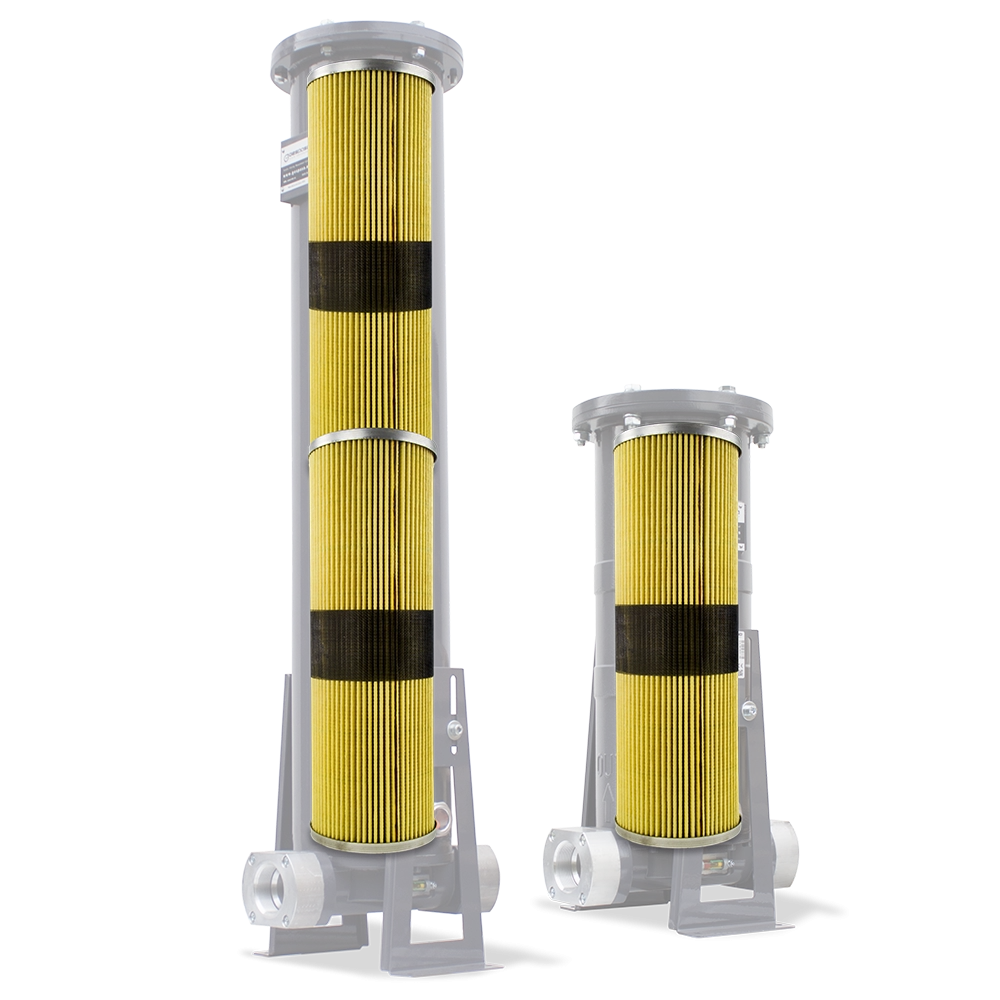

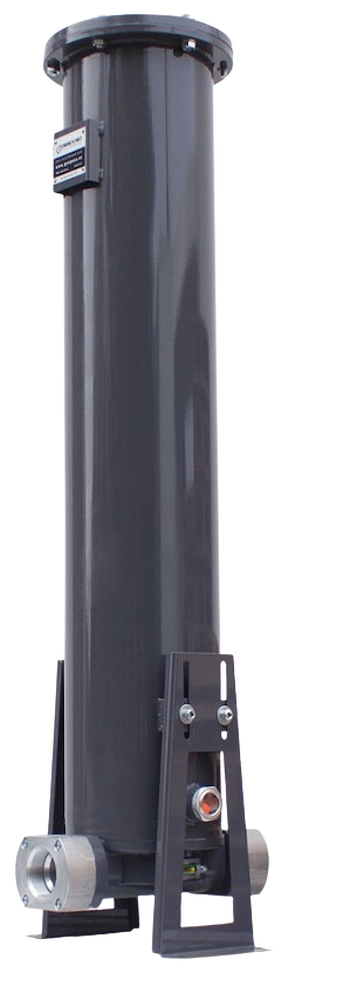

The FG-450 filter uses the same parts as the FG-300 microfilter model. Two cartridges in the same casing. This multiplies the durability of the cartridges when working at lower pressure, and improves the filtration capacity.
- Longer time before replacing cartridges.
- Higher durability of each cartridge. By having a higher capacity housing, the filters work at lower saturation per second. This results in the full utilization of the entire surface of the filter and/or absorbent paper.
- Better filtration. The larger the filter surface, the better filtration.
- It is suitable for particle microfiltration from 3 to 15 µm (micron) (the filtering paper is water absorbent) or 50 µm (micron). It is possible to drain through the manual drain valve placed in the microfilter bottom.
- This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.
- Differential manometer that shows the filter saturation level
- The microfilter is supplied with the filtering element installed.
TECHNICAL FEATURES
- Filtration
- 3 µm (micron) · water absorbent (mod. FG-450/3)
- 5 µm (micron) · water absorbent (mod. FG-450/5)
- 15 µm (micron) · water absorbent (mod. FG-450/15)
- 50 µm (micron) (mod. FG-450/50)
- Capacity: 30 litres in the housing interior
- Flow: 450 l/min
- Microfilter cover and heading: Aluminium
- Body made of AISI-304 stainless steel
- Differential manometer
- Inlet/Outlet Connections: F2" BSP or flange
- Manual lower drain valve
- Superior drain valve to eliminate the inner air of the filter
- Installation: in the suction or delivery of the dispenser
- Maximum operating pressure: 6 bar
- Maximum housing pressure: 10 bar
Size and weight (approx.):
- Dim.: Ø254x312x1150 mm (Ø x base x height)
- Weight: 27 kg
FG-300-450 filtering spare parts

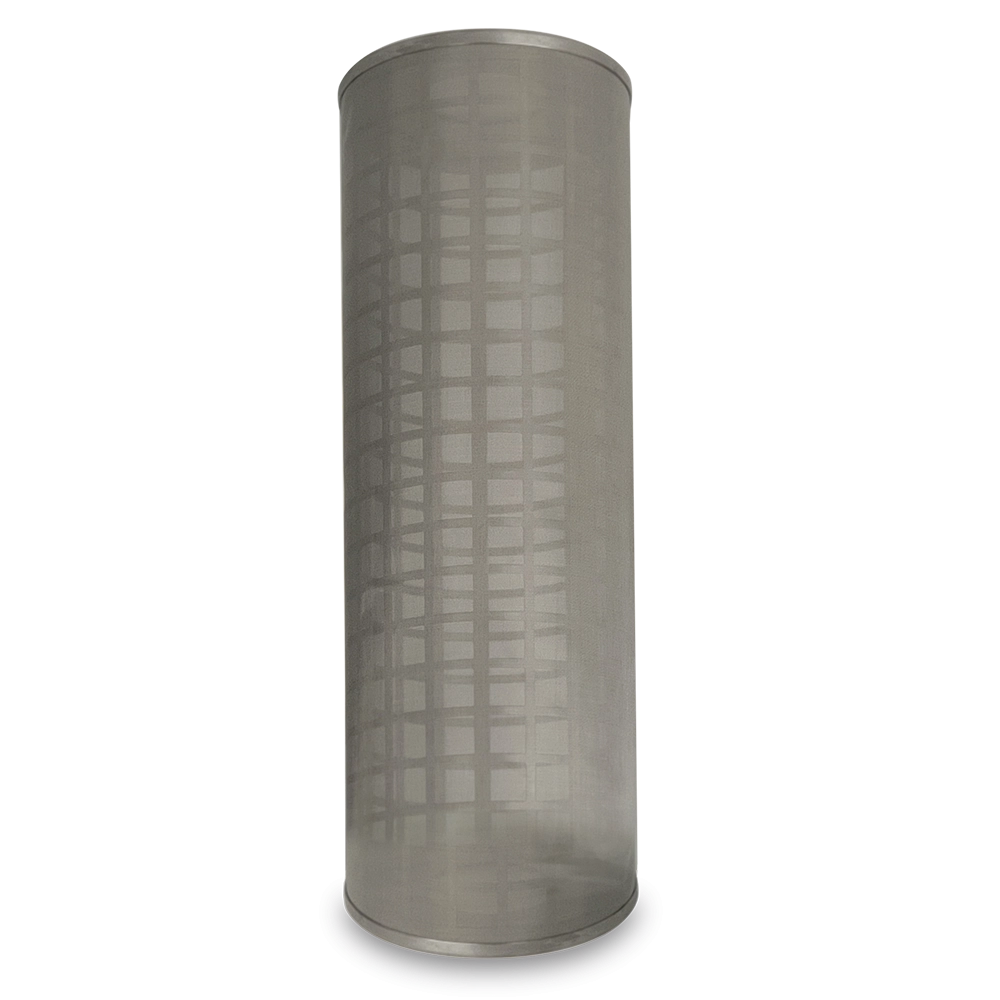

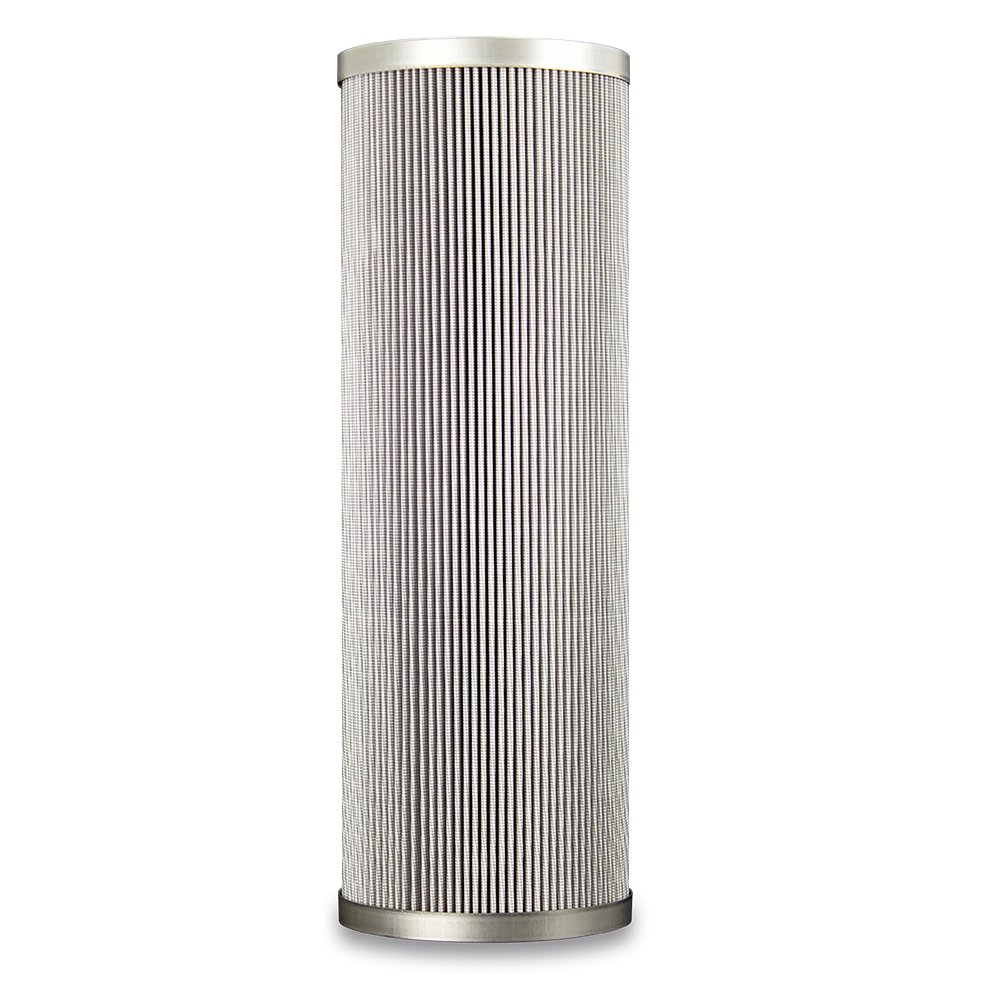

- 2.5 μm (micron) Fibreglass filtering element spare kit + joints ß2.5≥ 1000661908008- FG-300-450/3 ß10 ≥ 1000 · Absorbent filtering spare kit of 3 µm (micron) + joints661908002- FG-300-450/5 ß20 ≥ 1000 · Absorbent filtering spare kit of 5 µm (micron) + joints661908003- FG-300-450/15 ß30 ≥ 1000 · Absorbent filtering spare kit of 15 µm (micron) + joints661908000- FG-300-450/50 ß50 ≥ 1000 · Impact filtering spare kit of 50 µm (micron) + joints661908001- 100 µm (miron) stainless steel mesh filtering element kit + joints661908006- 200 µm (miron) stainless steel mesh filtering element kit + joints661908007
