Filters and tank cleaner kits
Family Selection / Filters and tank cleaner kits / FG-300x2 FIXED FILTERING KIT

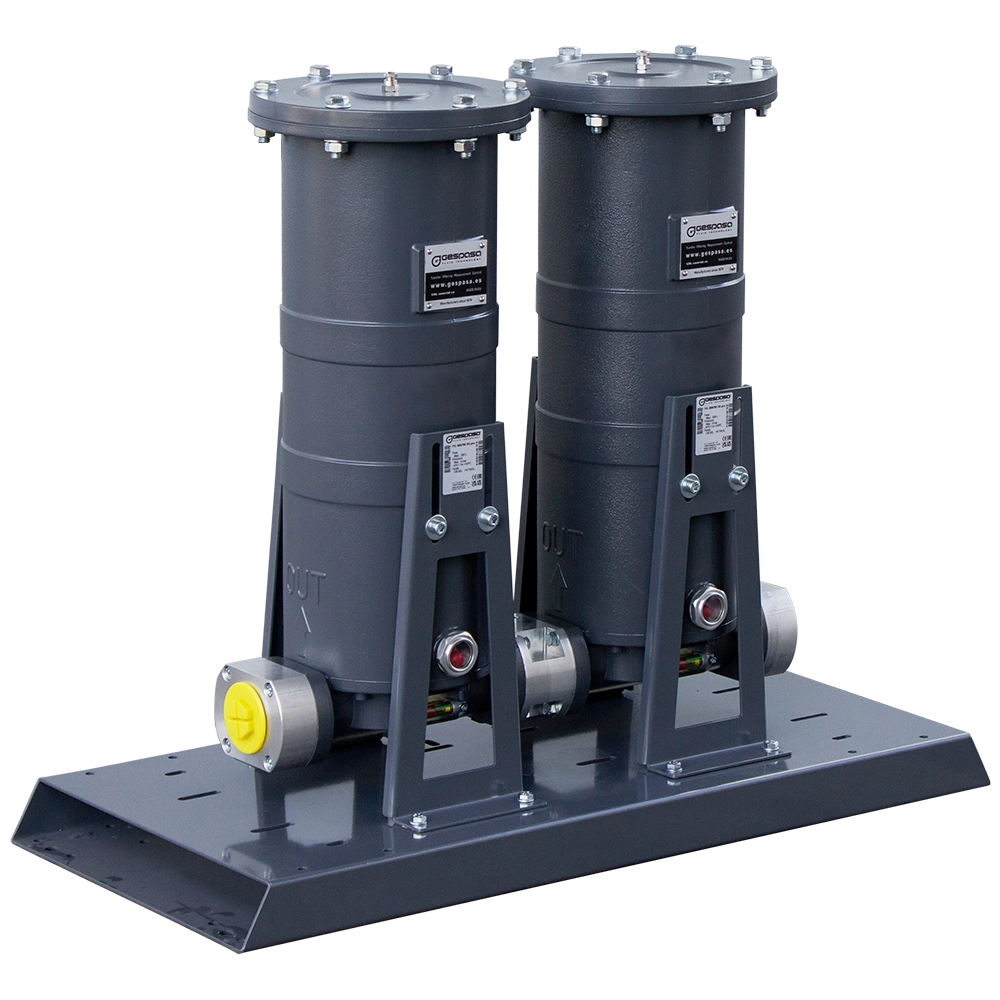

FG-300x2 FIXED FILTERING KIT

2"

Biodizel Biodizel
Dizel Dizel
Benzin Benzin
FG-300x2 Fixed Filtering Kit · 50/15 µm · 2"
66060-CF00001
  • Two-phase filtration kits designed for the fuel (diesel, petrol, kerosene and oil) filtering of buried or aerial tanks, getting the microfiltered fluid free of impurities.
  • First filtration phase of 50 µm (micron)
  • Second filtration phase for water absorption and impurity filtration of 15 µm (micron)
  • Special superficial interior and external finish against corrosion.

The kits are composed of:

  • 1 fixed platform
  • 2 manual drain valves to eliminate the residual air
  • 2 differential manometers which show when the filter has to be replaced or cleaned
  • 2 outlets for the filtered liquid sampling
  • 2 inlets for the connection of compressed air to clean the filters without being disassembled
  • 1 Ø150x458 mm impact filtering element of 50 µm (micron)
  • 1 final element of absorbent paper of 15 µm (micron)

Size and weight (approx.):

  • Dim.: 1,000x430x775 mm (length x width x height)
  • Weight: 55.5 kg

    FG-300-450 filtering spare parts

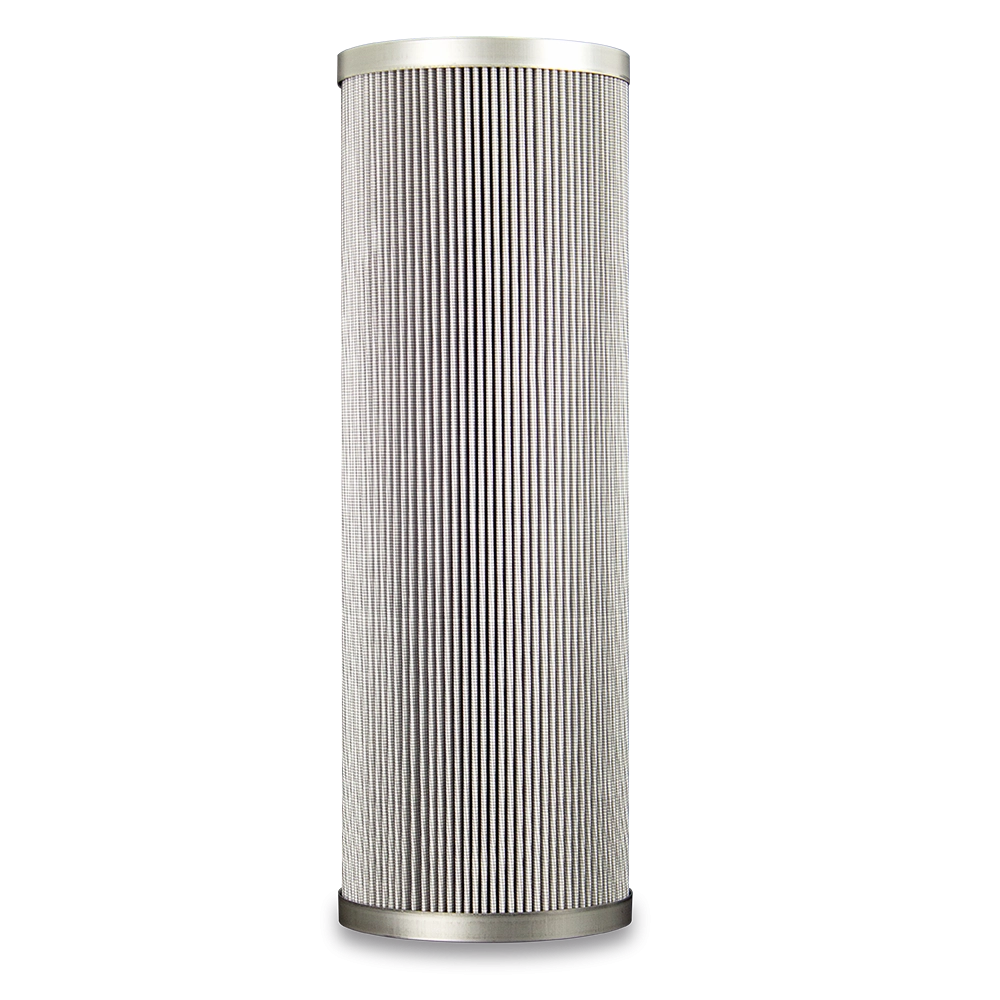

    - 2.5 μm (micron) Fibreglass filtering element spare kit + joints ß2.5≥ 1000
    661908008
    - FG-300-450/3 ß10 ≥ 1000 · Absorbent filtering spare kit of 3 µm (micron) + joints
    661908002
    - FG-300-450/5 ß20 ≥ 1000 · Absorbent filtering spare kit of 5 µm (micron) + joints
    661908003
    - FG-300-450/15 ß30 ≥ 1000 · Absorbent filtering spare kit of 15 µm (micron) + joints
    661908000
    - FG-300-450/50 ß50 ≥ 1000 · Impact filtering spare kit of 50 µm (micron) + joints
    661908001

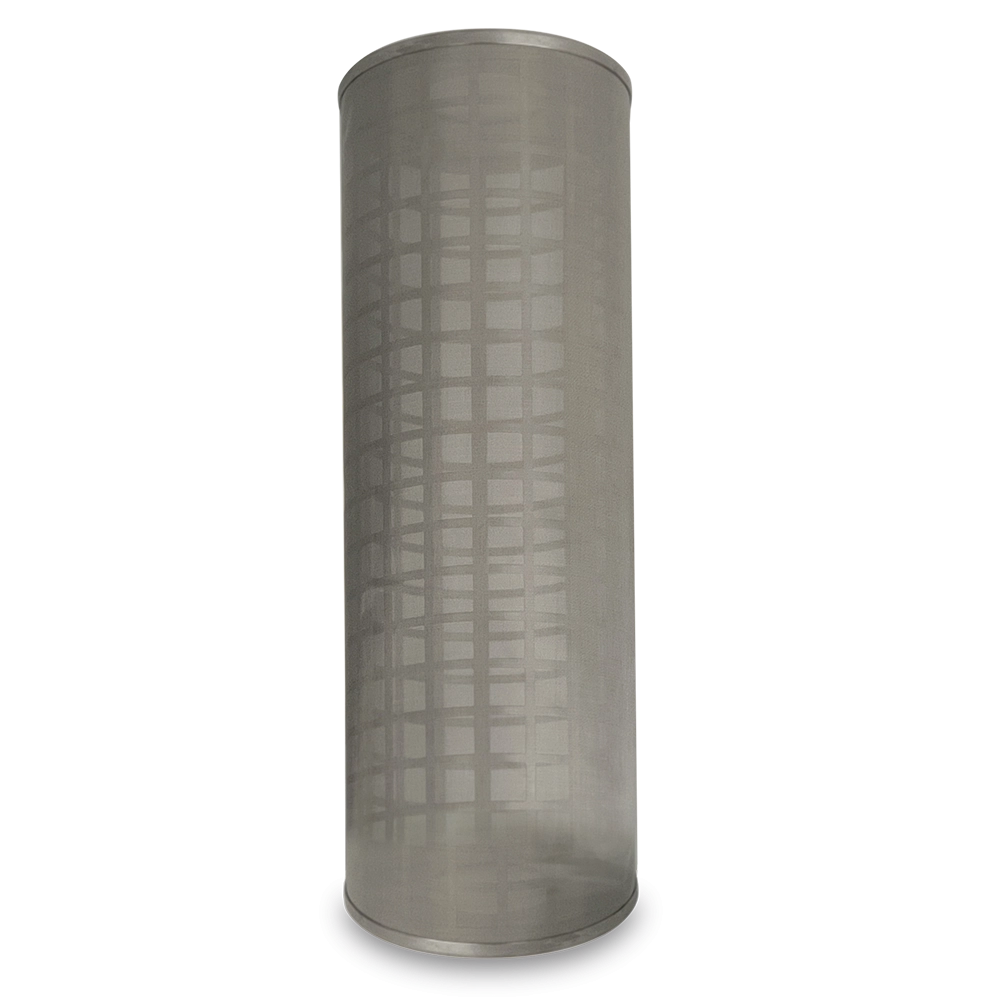

    - 100 µm (miron) stainless steel mesh filtering element kit + joints
    661908006
    - 200 µm (miron) stainless steel mesh filtering element kit + joints
    661908007
