- It is suitable for particle microfiltration from 3 to 15 µm (micron) (the filtering paper is water absorbent) or 50 µm (micron). It is possible to drain through the manual drain valve placed in the microfilter bottom.

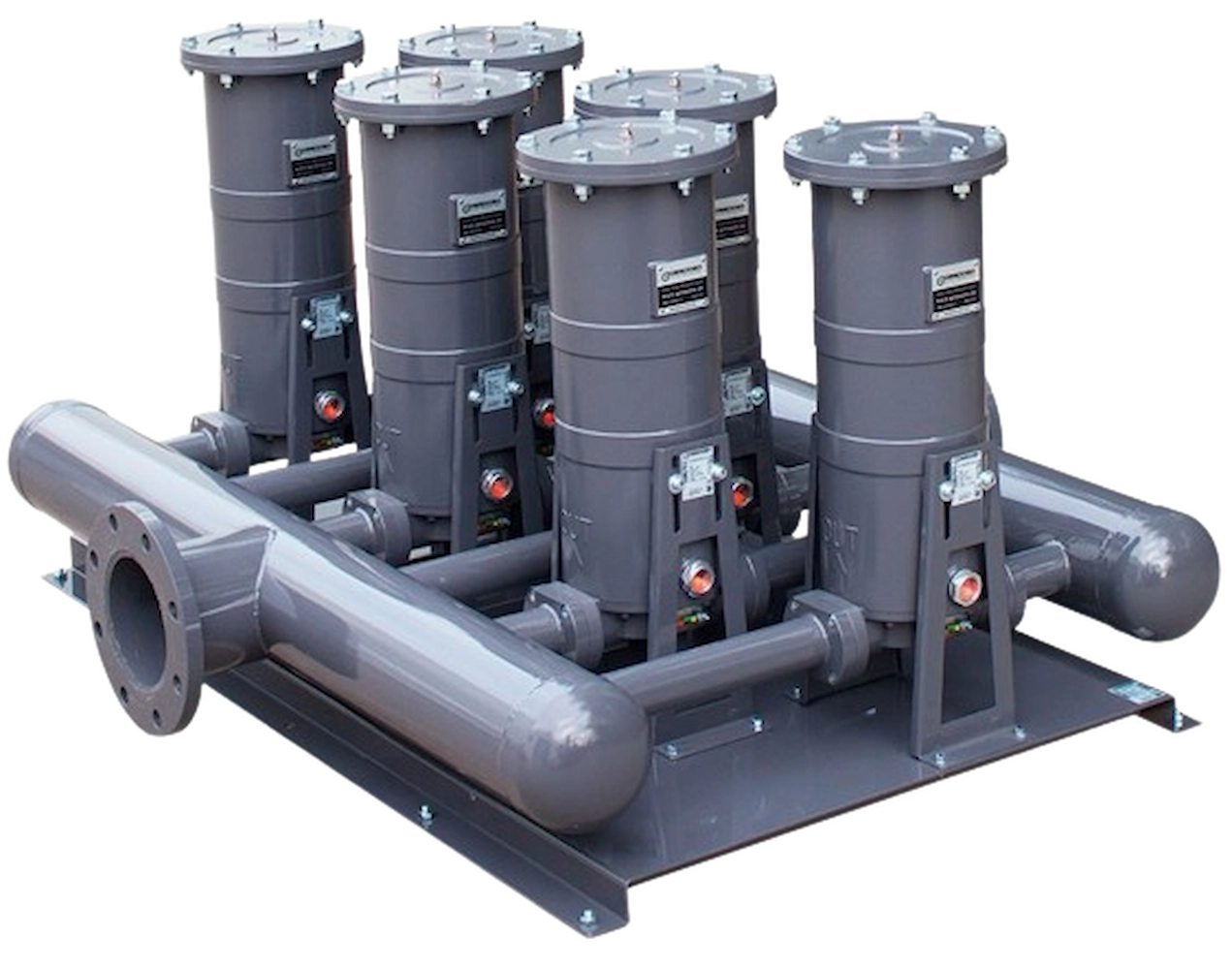

- Composed of 6 FG-300 elements to get a flow of 2,000 l/min
- This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1 and, in general, hydrocarbon liquid microfiltration.
- Differential manometer where you can see when the filter level is exceed.
- The microfilter is supplied with the filtering element installed.
TECHNICAL FEATURES:
- Filtration:
- 3 µm (micron) · water absorbent (mod. FG-2000/3)
- 5 µm (micron) · water absorbent (mod. FG-2000/5)
- 15 µm (micron) · water absorbent (mod. FG-2000/15)
- 50 µm (micron) (mod. FG-2000/50)
- Flow: 2,000 l/min
- Microfilter cover and body: Aluminium
- Differential manometer
- Inlet / Outlet Connections: 6" DIN.2576
- Manual lower drain valve
- Superior drain valve to eliminate the inner air of the filter
- Installation: in the suction or delivery of the pumping kit
- Maximum operating pressure: 6 bar
- Maximum housing pressure: 10 bar
Size and weight (approx.):
- Dim.: 1,470x1,260x800 mm (length x width x height)
- Weight: 241 kg

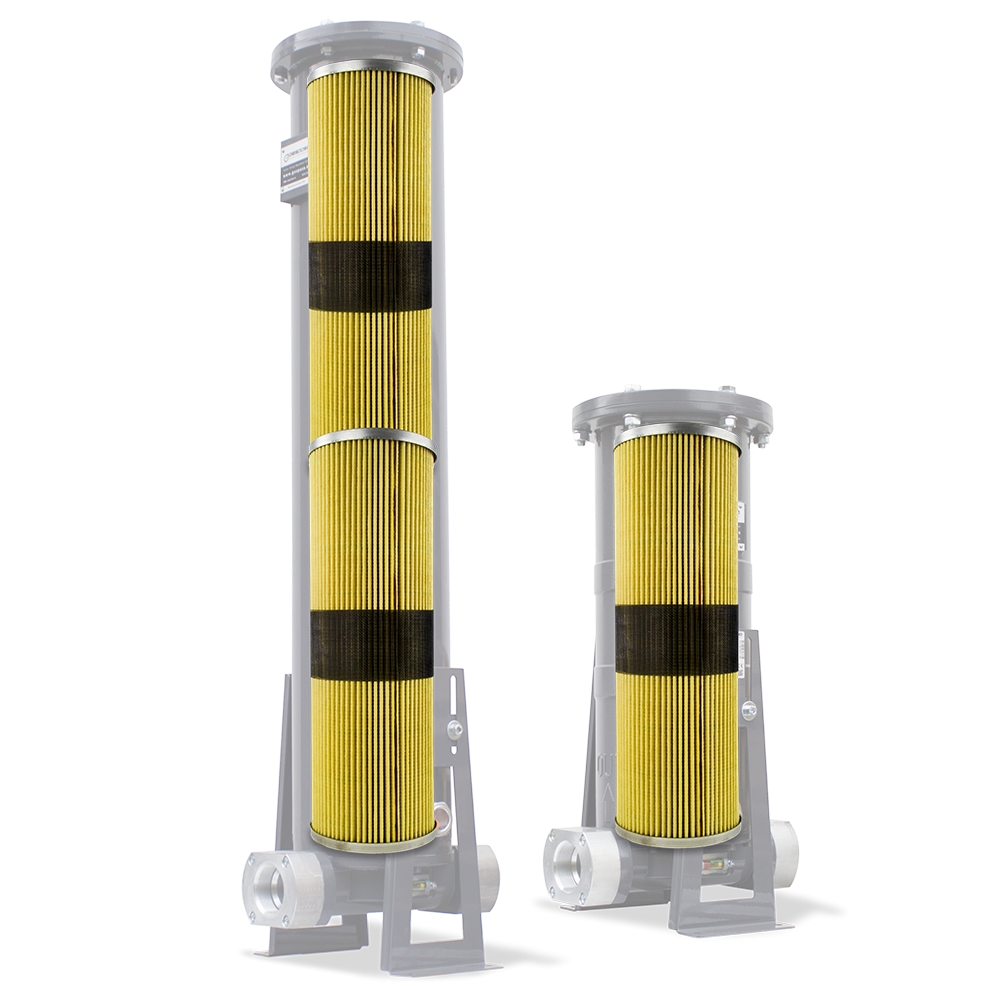

FG-300-450 filtering spare parts

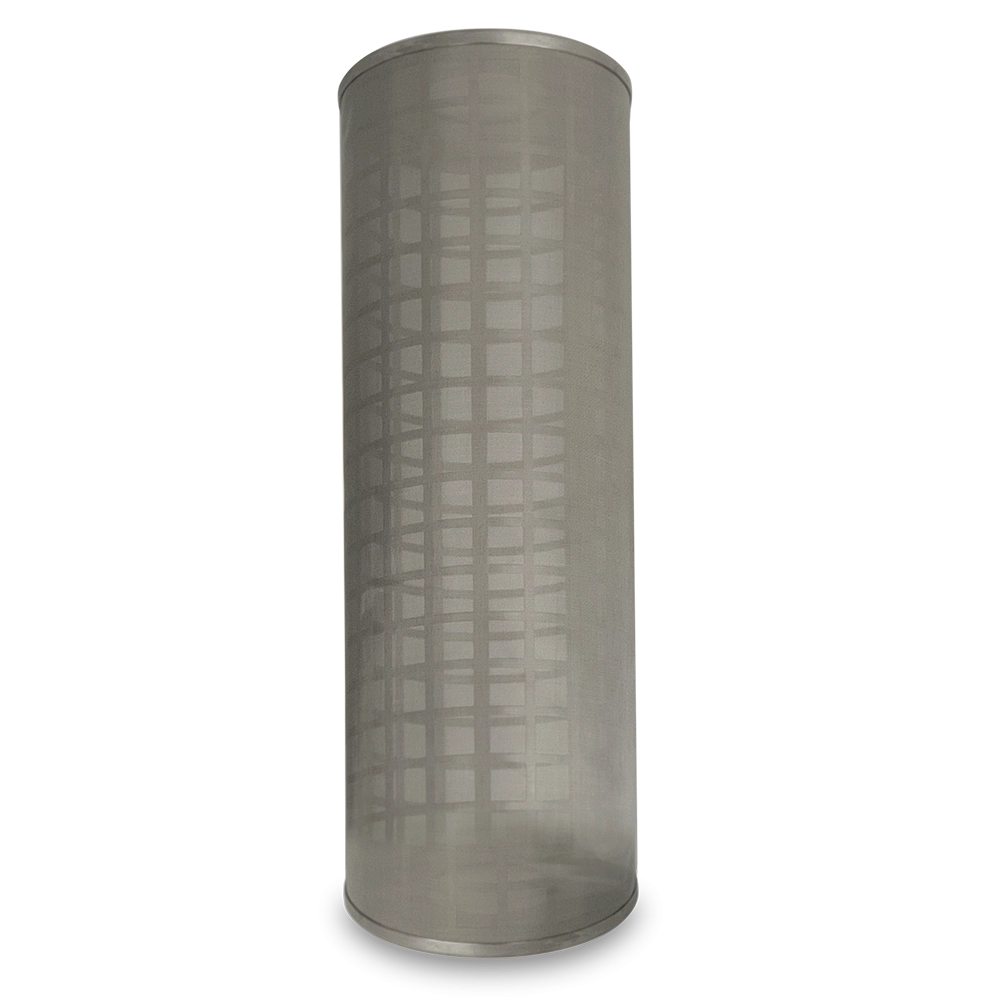

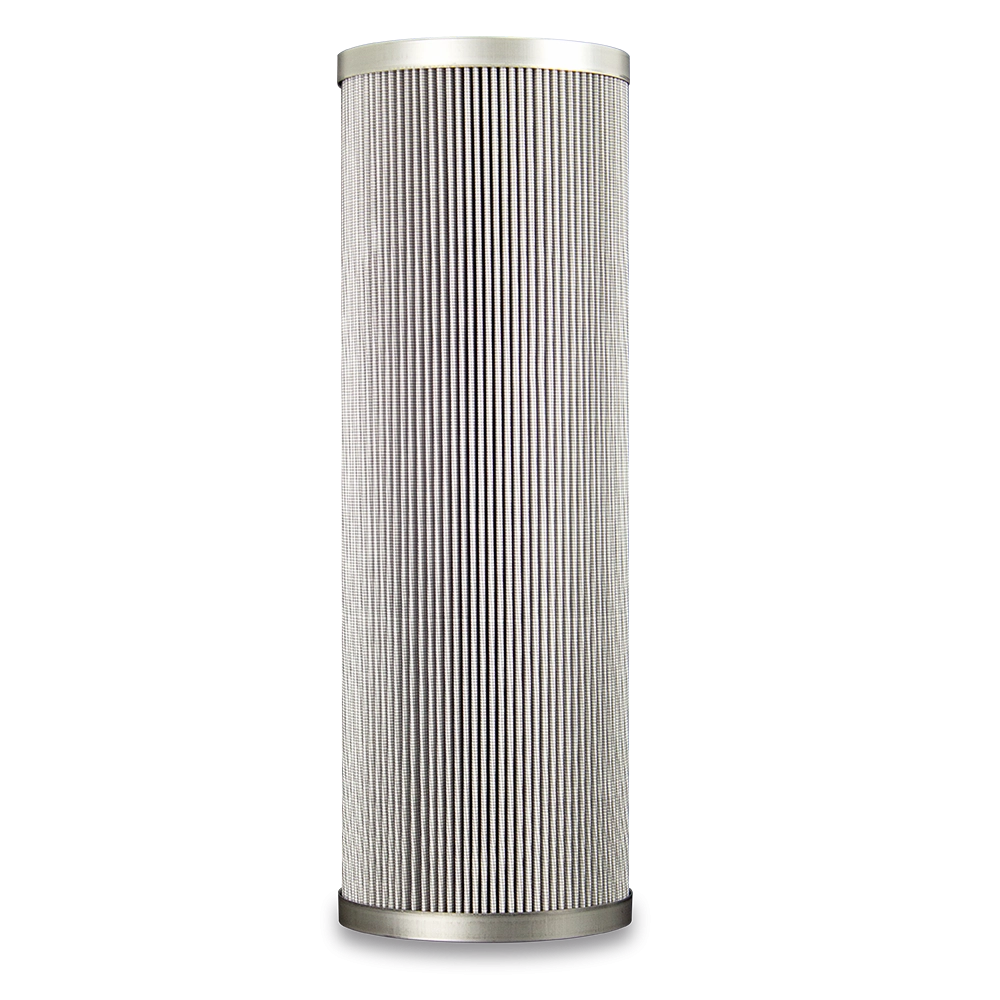

- 2.5 μm (micron) Fibreglass filtering element spare kit + joints ß2.5≥ 1000661908008- FG-300-450/3 ß10 ≥ 1000 · Absorbent filtering spare kit of 3 µm (micron) + joints661908002- FG-300-450/5 ß20 ≥ 1000 · Absorbent filtering spare kit of 5 µm (micron) + joints661908003- FG-300-450/15 ß30 ≥ 1000 · Absorbent filtering spare kit of 15 µm (micron) + joints661908000- FG-300-450/50 ß50 ≥ 1000 · Impact filtering spare kit of 50 µm (micron) + joints661908001- 100 µm (miron) stainless steel mesh filtering element kit + joints661908006- 200 µm (miron) stainless steel mesh filtering element kit + joints661908007
