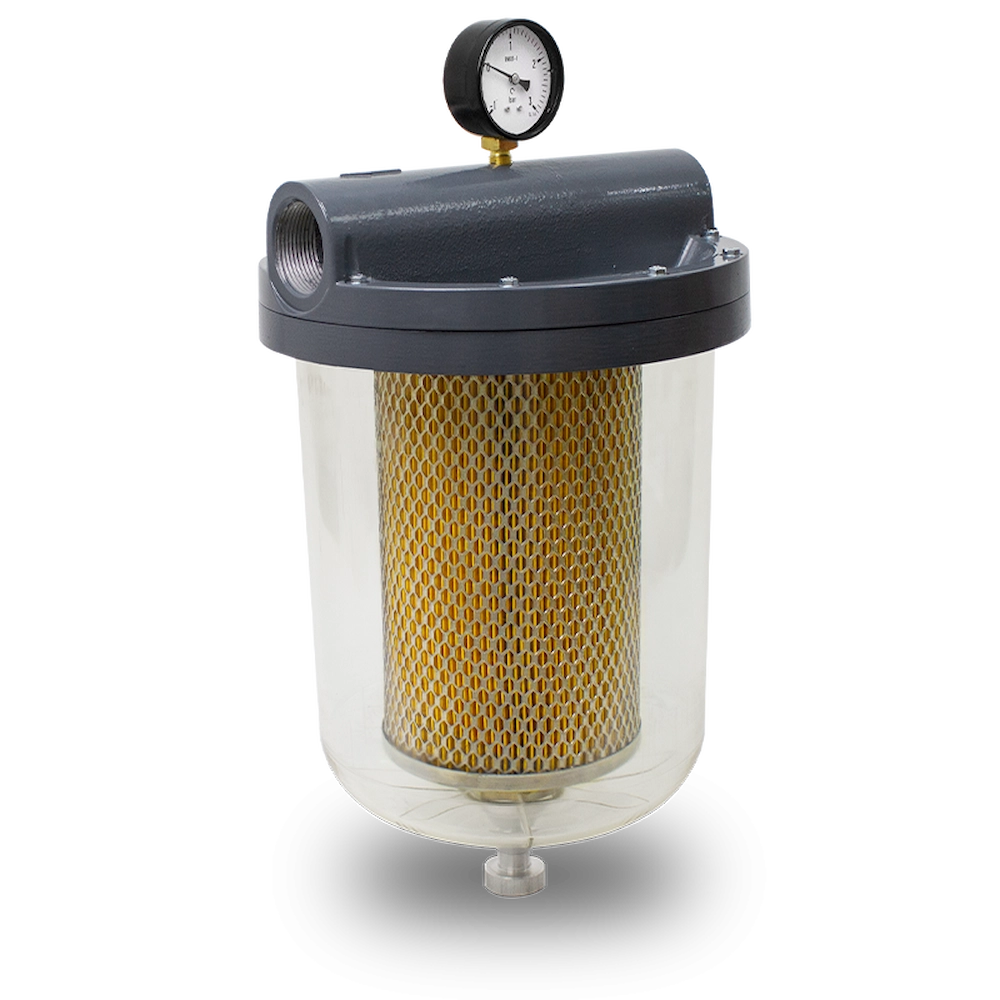

FG-150

Specially suitable for diesel, petrol, AVGAS, JET A-1

Specially suitable for biodiesel

Specially suitable for diesel · water absorbent

• These microlfilters are suitable for a trustworthy microfiltration, with the 5 µm (micron) water-repellent system (water separation) (only the FG-150 model).
• Because of their transparent vessel, it is shown the amount of the inner liquid. The polluted fuel and the impurities, kept between the filtering cartridge and the transparent vessel, can be extracted through the manual lower valve.
• It has built in a vacuum gauge.

Technical data:

• Volume: 10 litres
• Filtration:
  • diesel and petrol: 5 µm (micron) (with water separation at 93 %)
  • biodiesel: 25 µm (micron)
  • diesel · water absorbent: 15 µm (micron)
• Max. flow: 160 l/min
• Max. working pressure: 4 bar
• Vessel breaking pressure: 8 bar
• Temperature: -10 ºC · + 50 ºC
• Filter cover: aluminium casting
• Transparent vessel: PA
• Inlet / Outlet: F1 1/2" GAS (BSP)
• Manual lower drain valve to empty impurities
• Automatic degasser
• Installation: on the pumping kit suction or delivery

Size and weight (approx.):

• Size: 260x435 mm (Ø x height)
• Weight: 8 kg



  Specially suitable for diesel, petrol, AVGAS, JET A-1

  FG-150 · 5 µm (micron) · water-repellent filtering paper

  66050

  Specially suitable for biodiesel

  FG-150BIO · 25 µm (micron)

  66051

  Specially suitable for diesel · water absorbent

  FG-150A · 15 µm (micron) · water absorbent

  66053
  • These microlfilters are suitable for a trustworthy microfiltration, with the 5 µm (micron) water-repellent system (water separation) (only the FG-150 model).
  • Because of their transparent vessel, it is shown the amount of the inner liquid. The polluted fuel and the impurities, kept between the filtering cartridge and the transparent vessel, can be extracted through the manual lower valve.
  • It has built in a vacuum gauge.

  Technical data:

  • Volume: 10 litres
  • Filtration:
    • diesel and petrol: 5 µm (micron) (with water separation at 93 %)
    • biodiesel: 25 µm (micron)
    • diesel · water absorbent: 15 µm (micron)
  • Max. flow: 160 l/min
  • Max. working pressure: 4 bar
  • Vessel breaking pressure: 8 bar
  • Temperature: -10 ºC · + 50 ºC
  • Filter cover: aluminium casting
  • Transparent vessel: PA
  • Inlet / Outlet: F1 1/2" GAS (BSP)
  • Manual lower drain valve to empty impurities
  • Automatic degasser
  • Installation: on the pumping kit suction or delivery

  Size and weight (approx.):

  • Size: 260x435 mm (Ø x height)
  • Weight: 8 kg

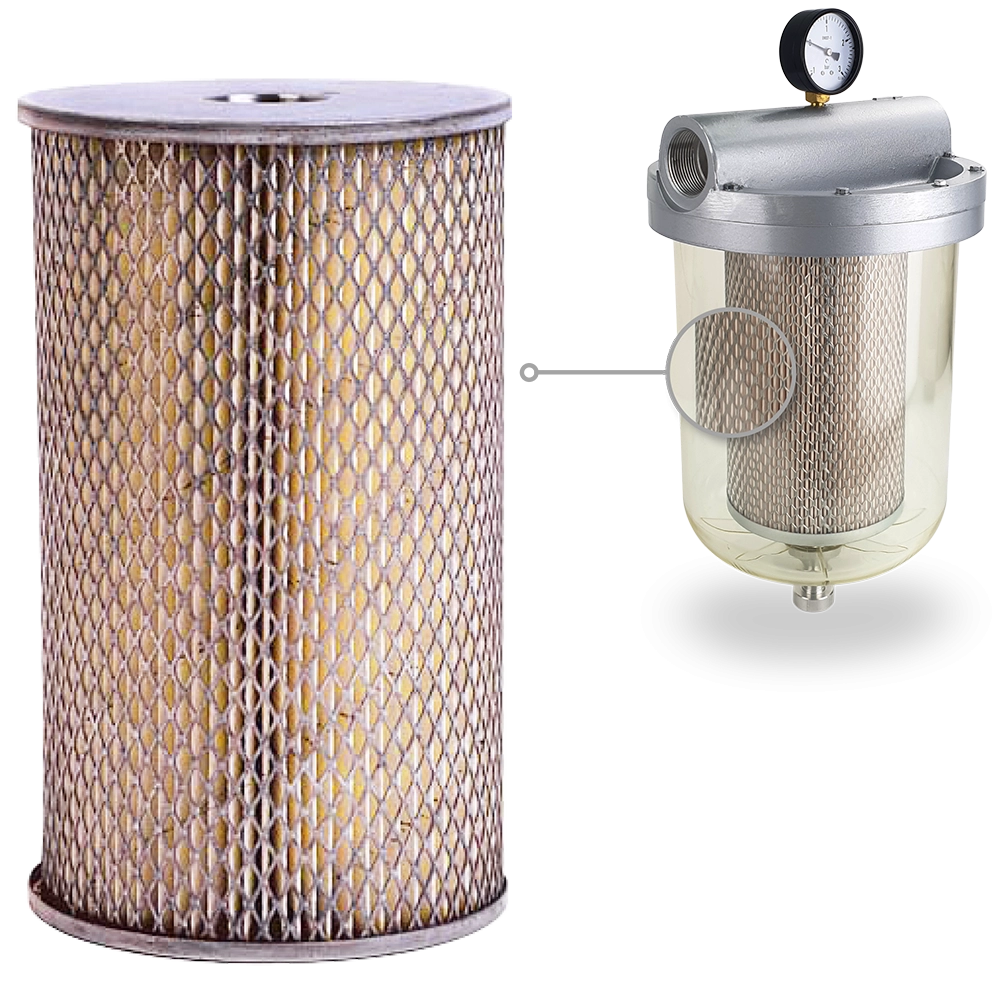

    FG-150 filtering spare-parts

    - Filtering element spare kit of 5 µm (micron) + joints

    660508001

    - Filtering element spare kit of 25 µm (micron) + joints

    660508002

    - Filtering element spare kit (water absorbent) of 15 µm (micron) + joints

    660508003
