- Two-stage filtration kits designed for the fuel (diesel, petrol, kerosene and oil) filtering of all type of tanks, getting the microfiltered fluid free of impuritiesand water, both free and disolved.
- Two-stage filtration:
- 1st filtering element to eliminate solid particles higher than 50 µm (micron)
- 2nd filter with monitor cartridge for water absorption (free and dissolved) and the elimination of solid particles higher than 15 µm (micron)
*ask for other micronages

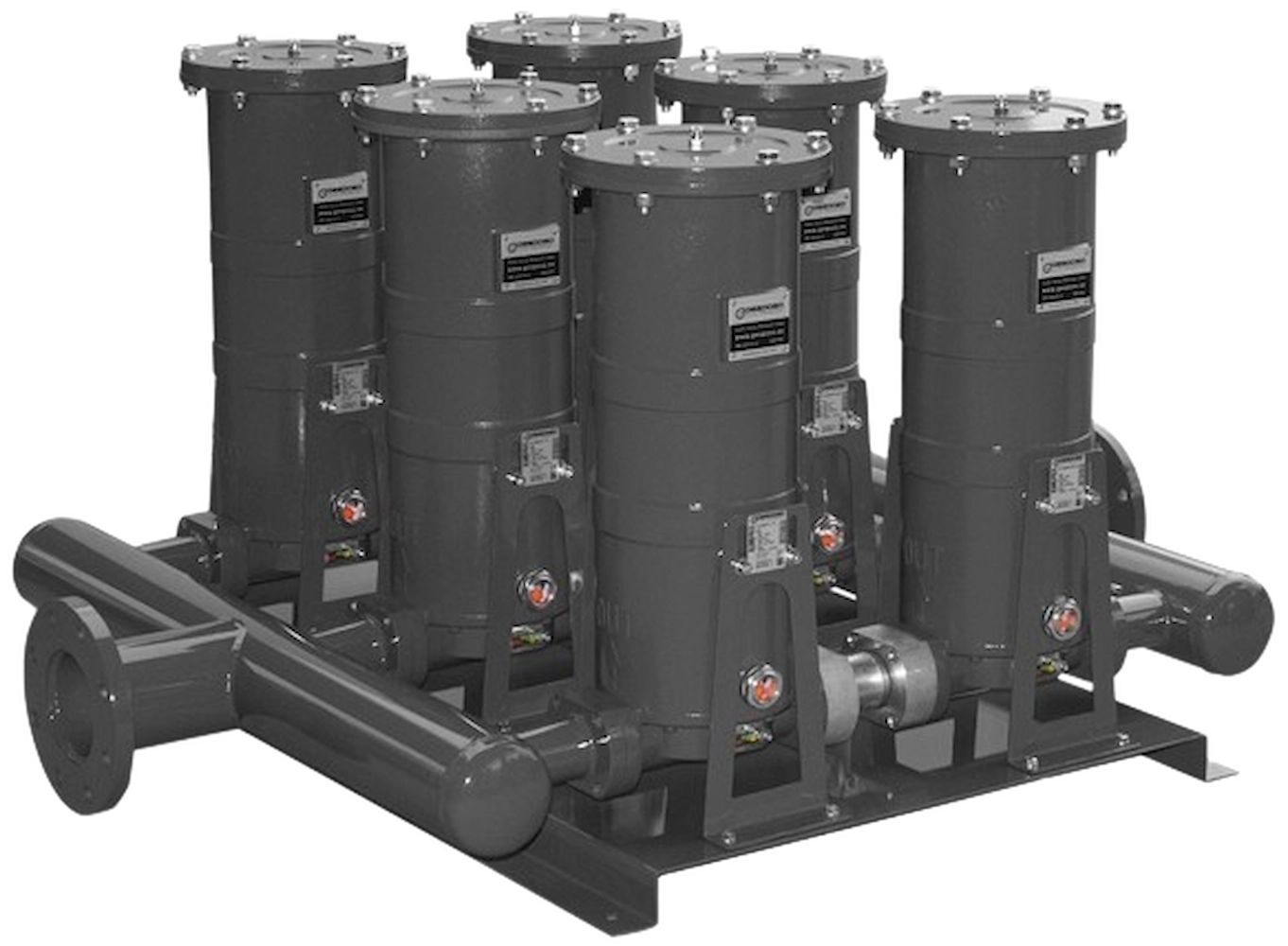

The kit is composed of:
- 1 fixed base made of steel

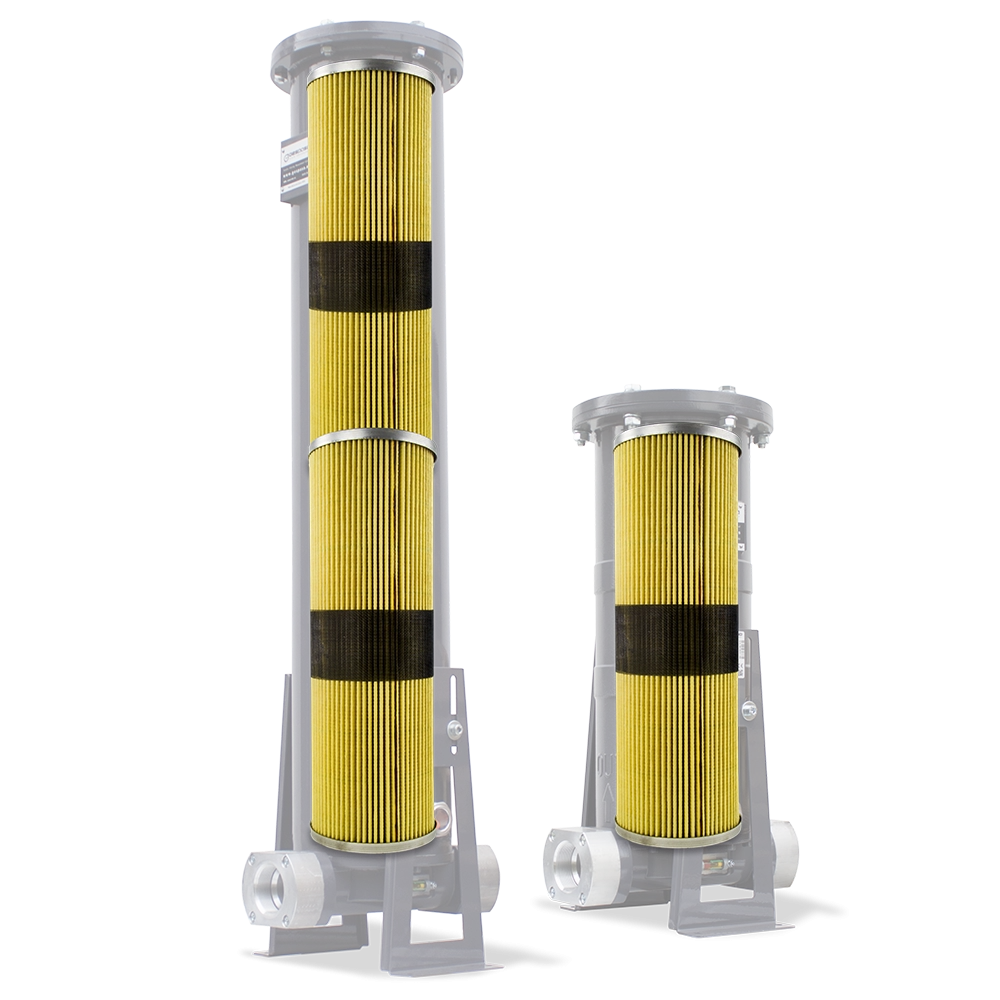

- 6 FG-300 filters:
- manual drain valves to eliminate the residual air
- differential manometer which shows when the filter has to be replaced or cleaned
- outlet for the filtered liquid sampling
- inlet for the connection of compressed air to clean the filters without being disassembled
TECHNICAL FEATURES:
- Maximum flow: 1,000 l/min
- Max. working pressure: 6 bar
- Max. housing pressure: 10 bar
- Material:
- Body: aluminium
- Collecteur: steel
- Base: steel
- Inlet/outlet connection: Flange DIN.2576: 4"
FG-300-450 filtering spare parts

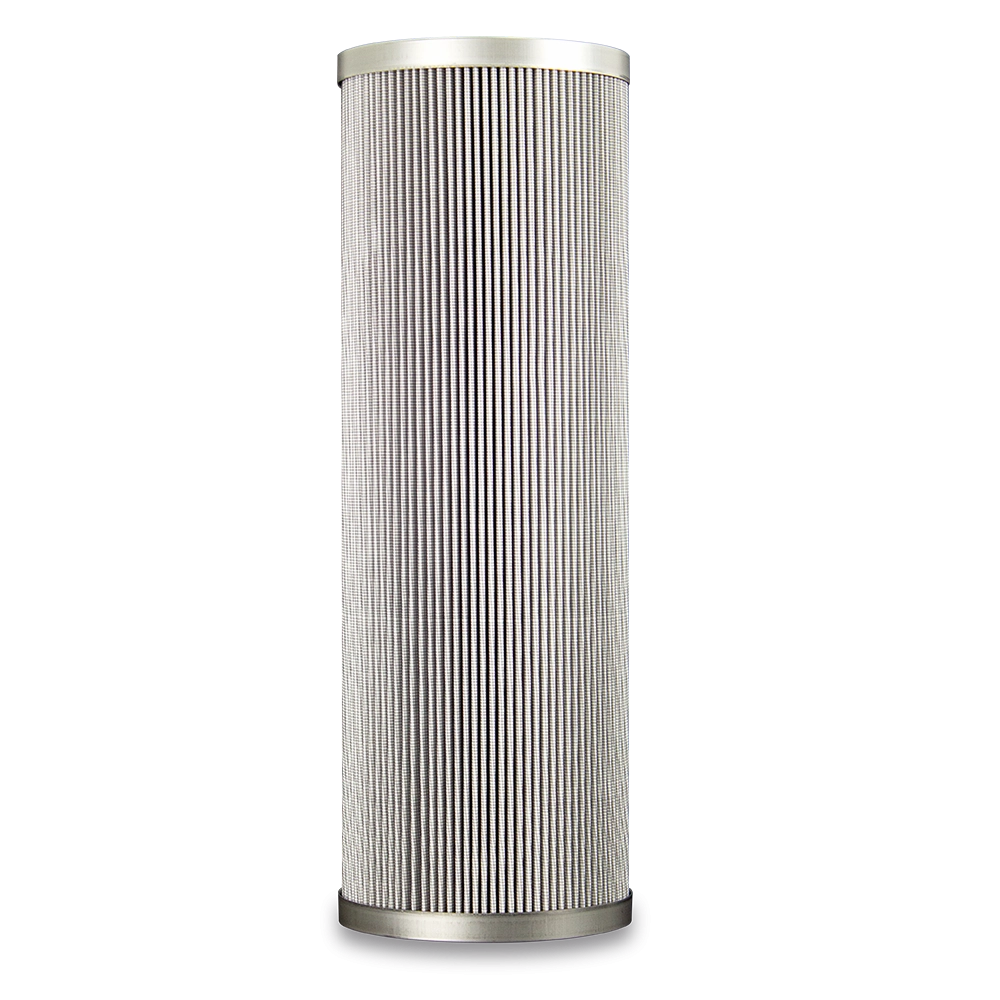

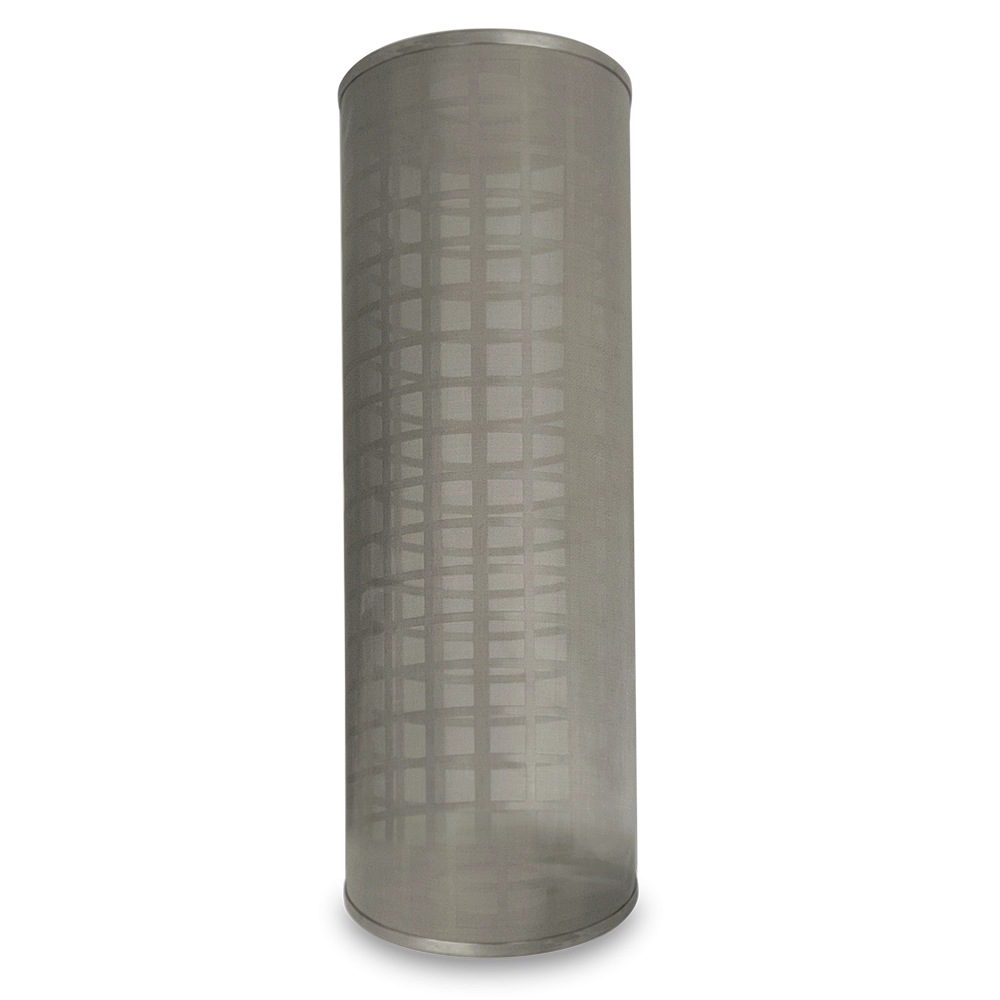

- 2.5 μm (micron) Fibreglass filtering element spare kit + joints ß2.5≥ 1000661908008- FG-300-450/3 ß10 ≥ 1000 · Absorbent filtering spare kit of 3 µm (micron) + joints661908002- FG-300-450/5 ß20 ≥ 1000 · Absorbent filtering spare kit of 5 µm (micron) + joints661908003- FG-300-450/15 ß30 ≥ 1000 · Absorbent filtering spare kit of 15 µm (micron) + joints661908000- FG-300-450/50 ß50 ≥ 1000 · Impact filtering spare kit of 50 µm (micron) + joints661908001- 100 µm (miron) stainless steel mesh filtering element kit + joints661908006- 200 µm (miron) stainless steel mesh filtering element kit + joints661908007
