FG-100

5 µm (micron) 105 l/min · F1" BSP

Biodizel

Dizel

Benzin

Specially suitable for diesel

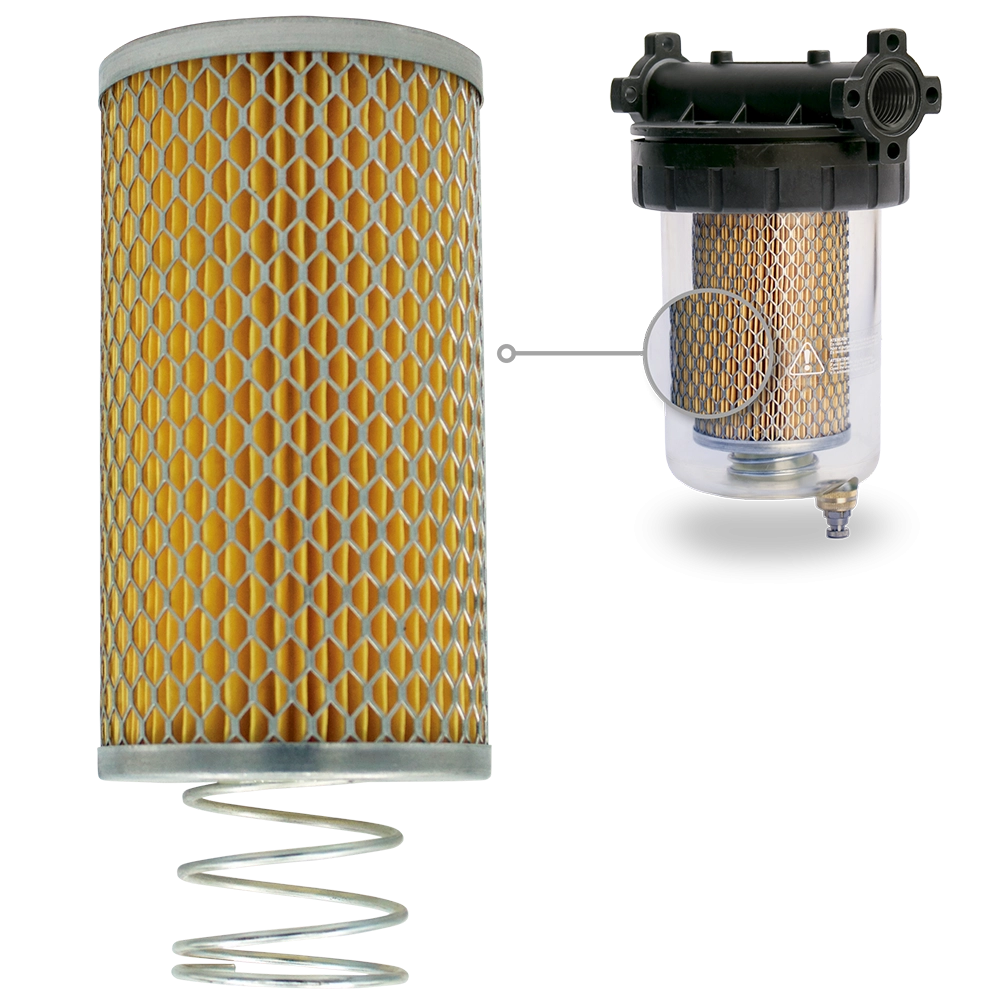

FG-100 · 5 µm (micron) · water repellent filtering paper

39023-CF00000

Specially suitable for the transfer of petrol, kerosene, AVGAS, JET A-1, diesel (ask for other liquids)

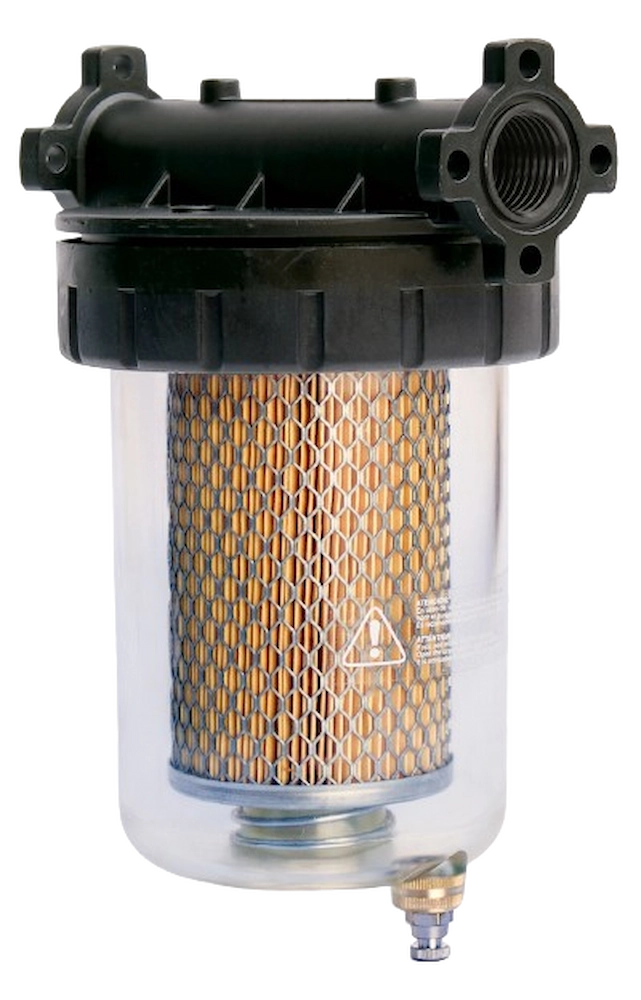

FG-100G · 5 µm (micron)

39071-CF00000

Specially suitable for biodiesel

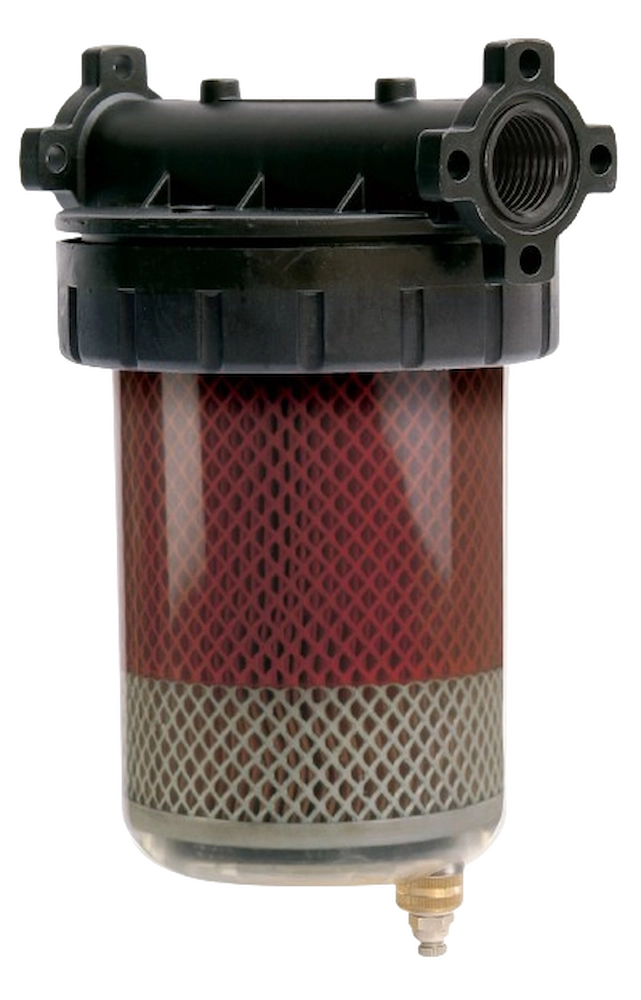

FG-100BIO · 25 µm (micron)

39023-CF00010

Diesel & Petrol Filtration: 5 µm (micron)
Biodiesel Filtration: 25 µm (micron)
Water decanter: by water repellent filtering paper, with water decanting of 93 % (FG-100 & FG-100G)
Capacity: 2 litres
Transfer capacity: 105 l/min
Upper microfilter housing: aluminium
Housing: transparent
Inlet / Outlet: F1" BSP flanges or threads
Installation: On the pumping kit suction or delivery
Max. working pressure: 5 bar
Vessel breaking pressure: 8 bar
Max. working depressure: -0,5 bar
Temperature: -10 ºC · + 50 ºC
Drain valve
*FG-100G - Viton joints

IT IS SUPPLIED WITH

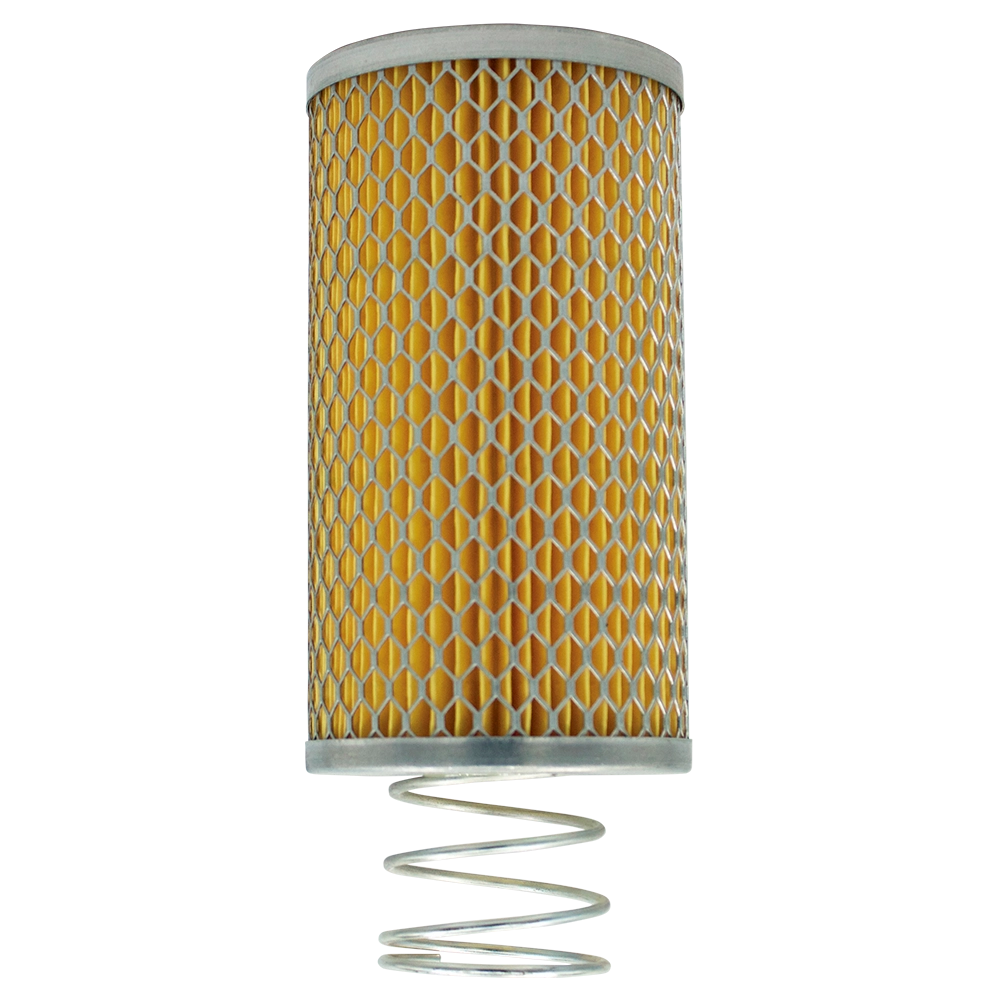

Housing (vessel) + filtering cartridge + Key for a QUICK replacing of the filtering cartridge, unscrewing its ring.

Size and weight (approx.):

FG-700 / FG-1000

FG-300x2 FIXED FILTERING KIT
