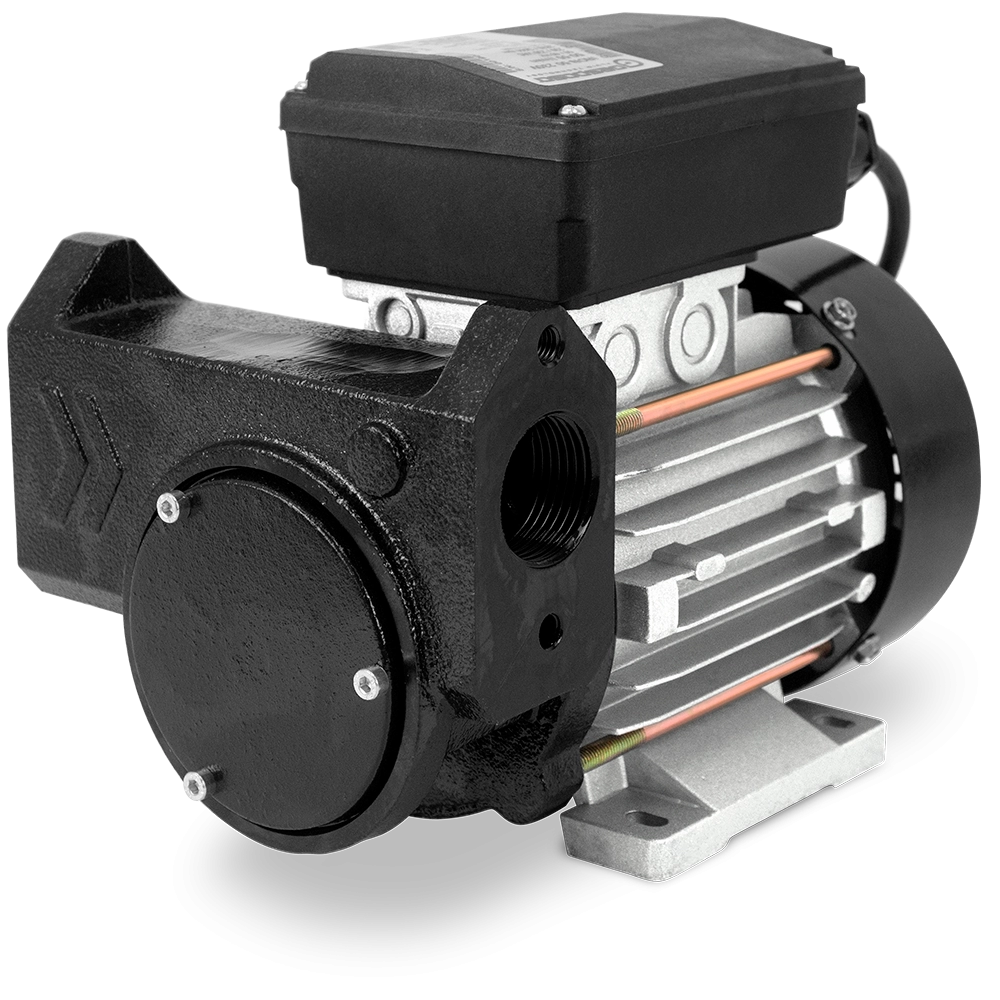

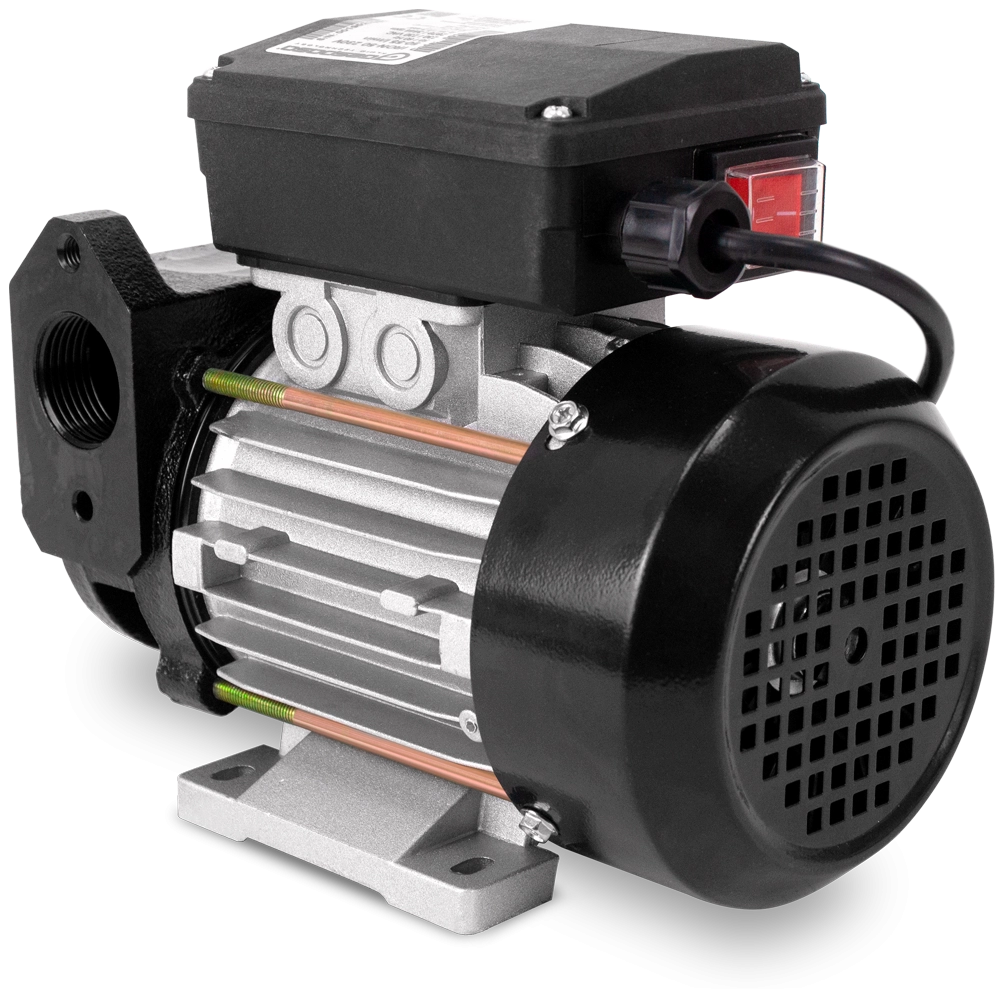

IRON-50 230 VAC

Self-suction with blades · 0.25 kW · 50 l/min

Biodizel Biodizel
Dizel Dizel
IRON-50 230 VAC · 50 l/min
00190
IRON-50 230 VAC · VITÓN · B100
001900500
  • Self-suction - self-priming. Eccentric of self-adjusting blades
  • With recirculation bypass
  • Suction: 2.7 m · Delivery: 30 m
  • Priming pipe suction: 5 m
  • Free flow: 50 l/min
  • Consumption: 1.2-2 A
  • Motor: 0.25 kW 230 VAC self-ventilated 50/60 Hz single-phase with thermal protector
  • S1 Continuous duty
  • IP-55 Protection
  • 3,000 rpm
  • Connection through F1" (BSP) threads and flanges
  • It has built in a cleaning steel filter of 350 µm (micron).
  • ON/OFF luminous switch with IP-55 protection
  • 3 m electric cable with homologated plug
  • Anti-rust treatment

Size and weight (approx.):

  • Dim.: 146x225x185 mm (LxWxH)
  • Weight: 8.50 kg
Optional:
