Electric Pumps
Family Selection / Electric Pumps / IRON-45 Ex 230 VAC

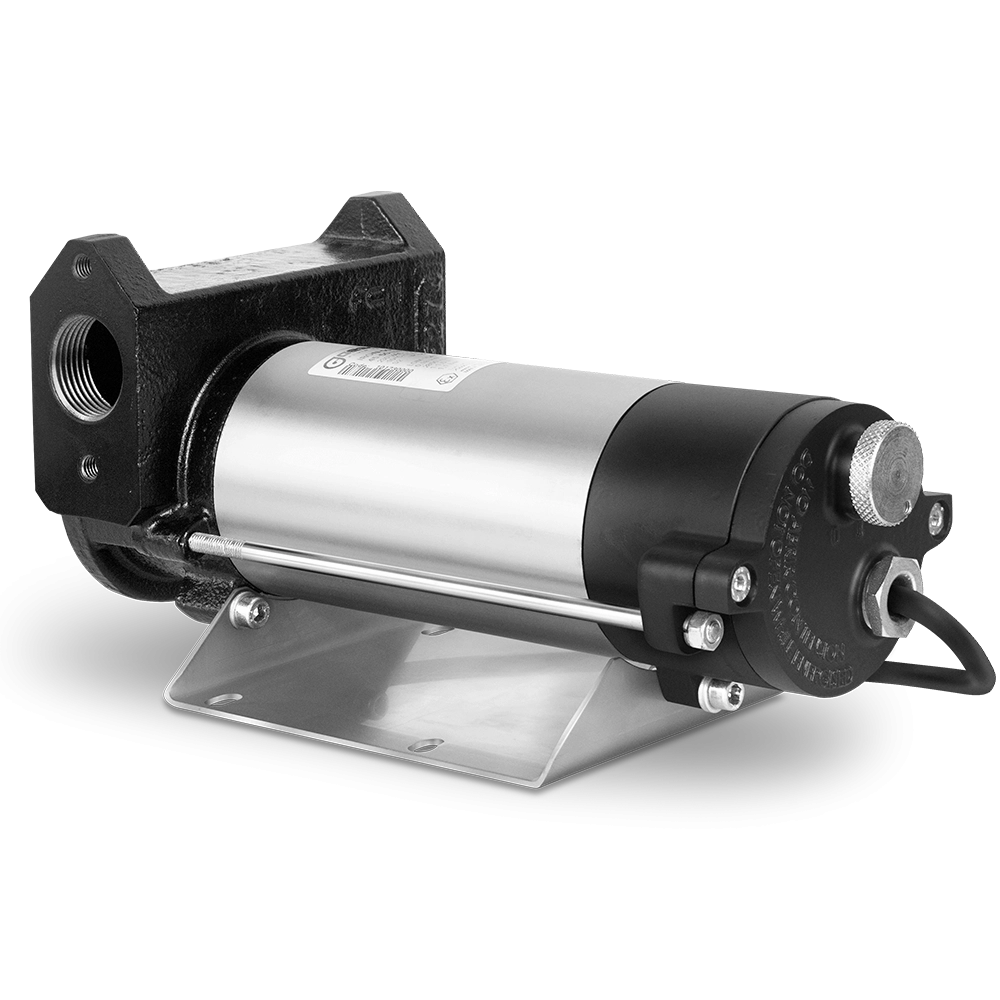

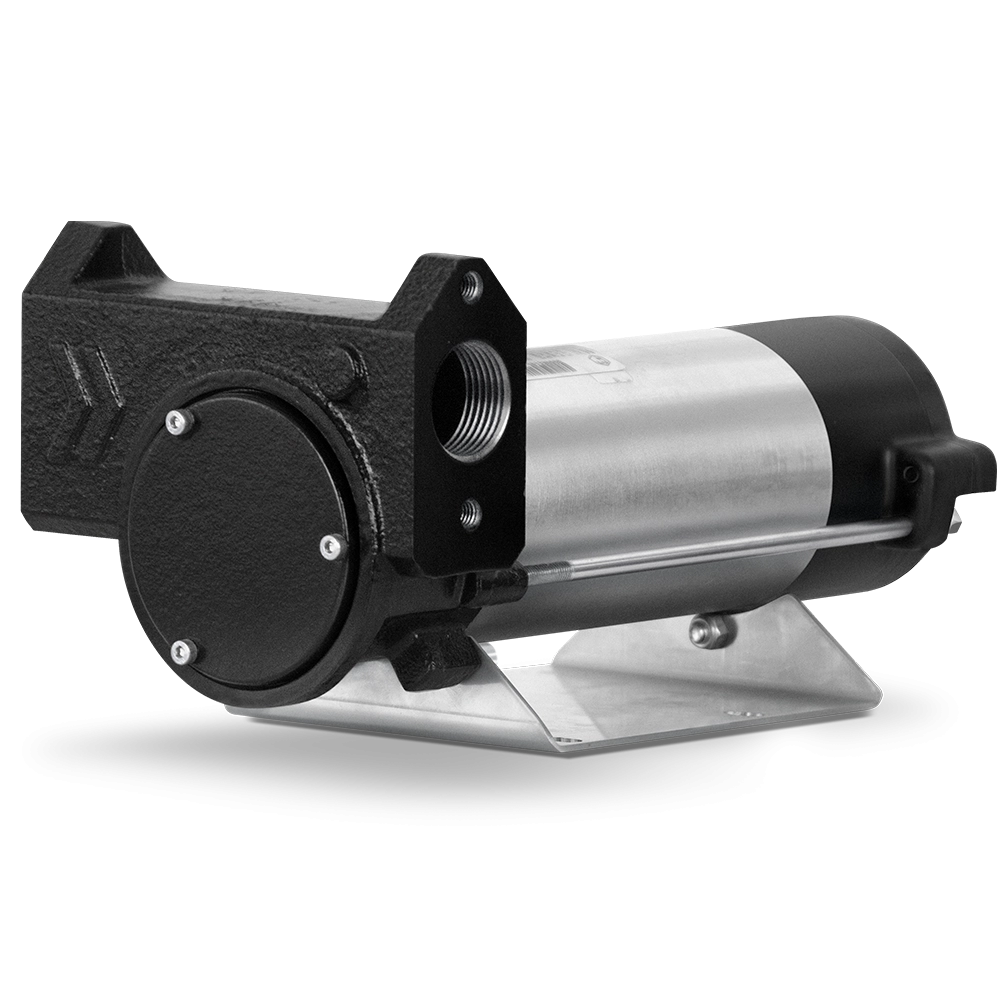

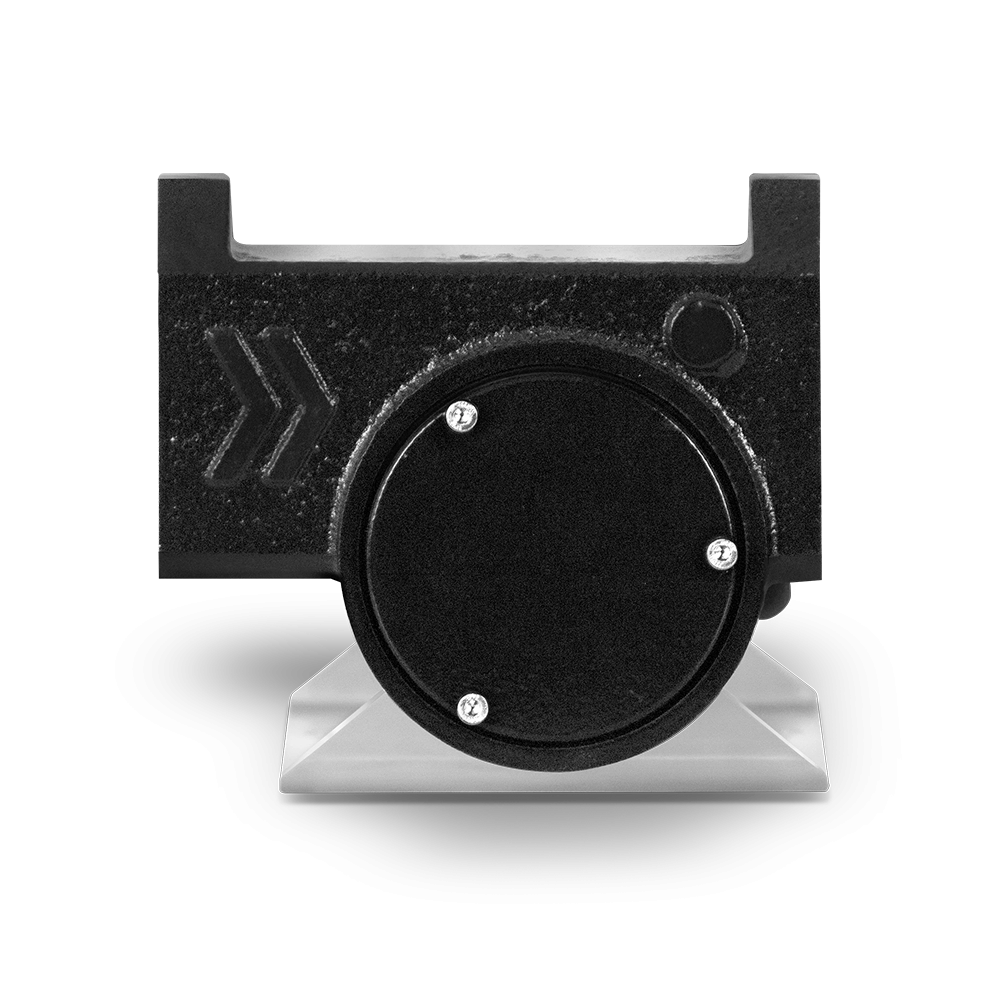

IRON-45 Ex 230 VAC

Electric explosionproof pump for petrol transfer | 42 l/min

Dizel Dizel
Benzin Benzin

Yeni

IRON-45 Ex 230 VAC · 42 l/min
10230-CF00000
  • Self-suction - self-priming, explosionproof, eccentric with self-adjusting blades
  • With recirculation bypass
  • Suction: 2.7 m
  • Priming pipe suction: 5 m
  • Free flow: 42 l/min
  • Consumption: 1 A
  • Motor: 0.12 kW 230 VAC 50/60 Hz single-phase EExd
  • With thermal protector
  • 2,800 rpm
  • S2 30' operation
  • IP-55 protection
  • Operation temperature: -10 ºC · +40 ºC
  • Category: ATEX II2G
  • Protection mode (own supply): Ex db IIA T4 Gb
  • Thread connection: F1" (BSP) and flange
  • ON/OFF switch
  • 3 m cable
  • Anti-rust treatment

Size and weight (approx.):

  • Dim.: 283x143x140 mm (LxWxH)
  • Weight: 7 kg
