Electric Pumps
Family Selection / Electric Pumps / EA-90 12 or 24 VDC

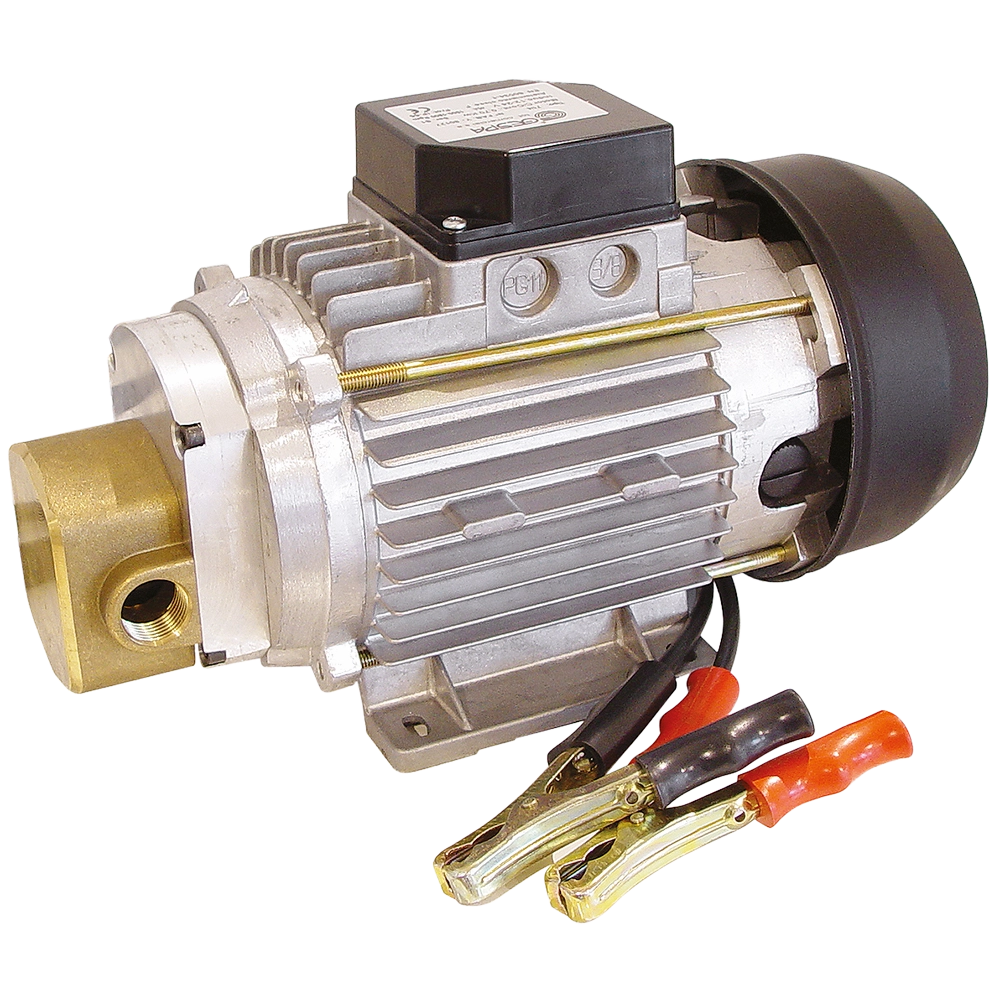

EA-90 12 or 24 VDC

0.37 kW · 20-25 l/min

Lubricant Lubricant
EA-90 12VDC 20-25 L/MIN
03014
EA-90 24VDC 20-25 L/MIN
03090

The self-suction gear pumps are suitable for all type of oil supplies and admit the hose-reel coupling in the delivery.

This pump is suitable for it use in the agriculture, building, public works, industry, ...

It supplies oil up to 2.5 m suction from aerial or buried tanks.



Technical data:

  • With recirculation bypass system
  • It is suitable for lubricant transfer with average/low density
  • Suction: 2.5 m · Delivery: 40 m
  • Flow: 20-25 l/min (SAE-20/50W at 25ºC)
  • Motor: 0.37 kW self-ventilated 12 or 24 VDC
  • S1 continuous duty
  • IP-55 protection
  • Consumption: 35-55 A (12 VDC) and 20-32 A (24 VDC)
  • 1,500 rpm
  • Bypass tared at 5-6 bar
  • Inlet/outlet tube: 1/2" GAS (BSP)
  • With clamps for 12 or 24 VDC battery connection with 2 m of cable
