Electric Pumps
Family Selection / Electric Pumps / EA-88 (0.37 kW) 230 VAC

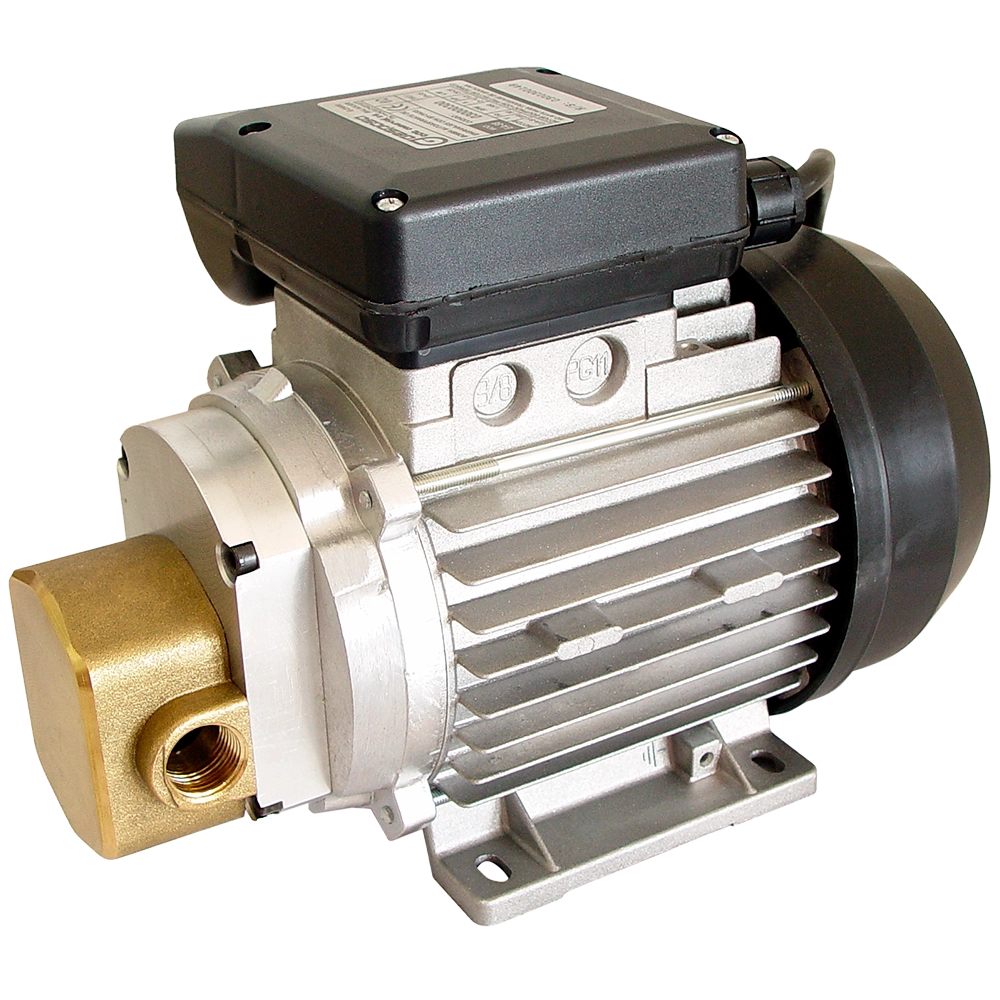

EA-88 (0.37 kW) 230 VAC

20-25 l/min

Lubricant Lubricant
EA-88 (0,37 kW) 230 VAC · 20-25 l/min
03000

Self-suction gear pumps for the lubricant transfer.

They are suitable for its use in the agriculture, building, public works and industry.

Technical data:

  • With recirculation bypass system
  • It is suitable for lubricant transfer with average/low density.
  • Suction: 2.5 m · Delivery: 40 m
  • Oil flow: 20-25 l/min (SAE-20/50 W at 25 ºC)
  • Motor: 0.37 kW self-ventilated 230 VAC 50/60 Hz single-phase · IP-55 protection
  • With thermal protector
  • Consumption: 2-4 A
  • 1,500 rpm
  • Bypass pressure: 5-6 bar
  • Inlet / outlet: 1/2" GAS (BSP)
  • ON/OFF Switch
  • 3 m 230 VAC connection cable with injected plug
  • Body material: brass
