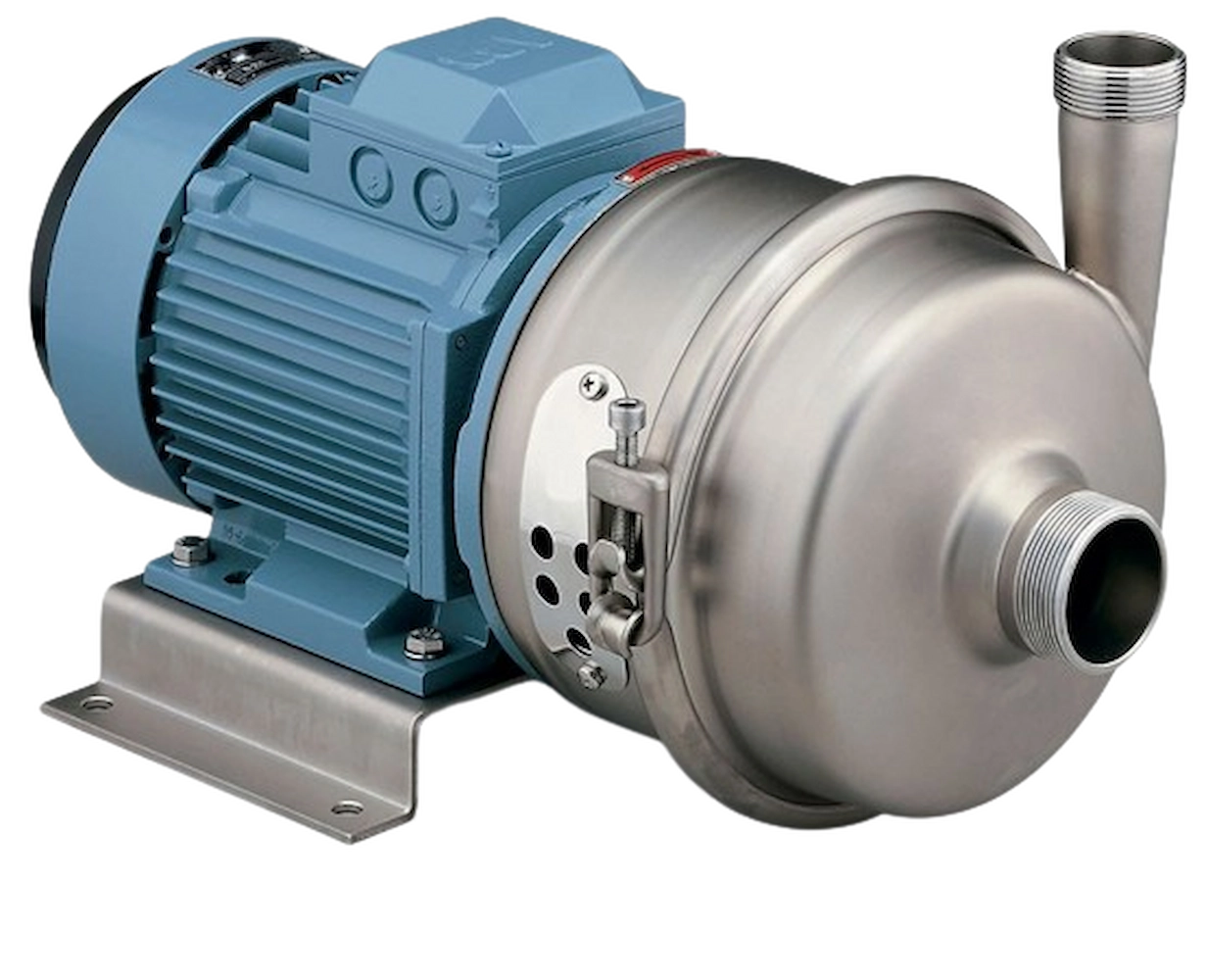

- Centrifugal pump for clean or loaded liquids
- Great mechanical robustness and chemical resistance
- Cold-stamped body, cap and flange
- Quick and easy to disassemble clamp connection (possible screw rings for high pressure)
- Hydraulic high performance microfusion semi-open impeller
- Minimum thickness 3 mm (6 mm in larger sizes)
- Internal simple mechanical seal as standard (possibility of other multiple assemblies: double back pressure seal, tandem, external seal, packing, etc.)
- GAS or DIN 11851 connections (possible Clamp, Fil, SMS, flanges, etc.)
- Different options of technical solutions: heated body, lower drain, elongated flange for high temperature, special dimensions, etc.
- Matte polished finish and stainless steel bench
- Applications: Water, wine, beer, oils, brine, soda, acids, glycols, solvents, phytosanitary, fertilizers, residues, etc.
TECHNICAL SPECIFICATIONS
- Maximum flow: 40 m3/h (800 l/min)
- Maximum height: 8 bar (80 mwc)
- Power: 15 kW (20 HP) · 50 Hz · IP-55
- Temperature: -25 ºC · +180 ºC
- Maximum viscosity: 500 cP
- Rotation speed: 2,900 rpm
- Material: AISI 316 (EN 1.4401)
- Connections: GAS Threads - IN 3" / OUT 1 ½"
