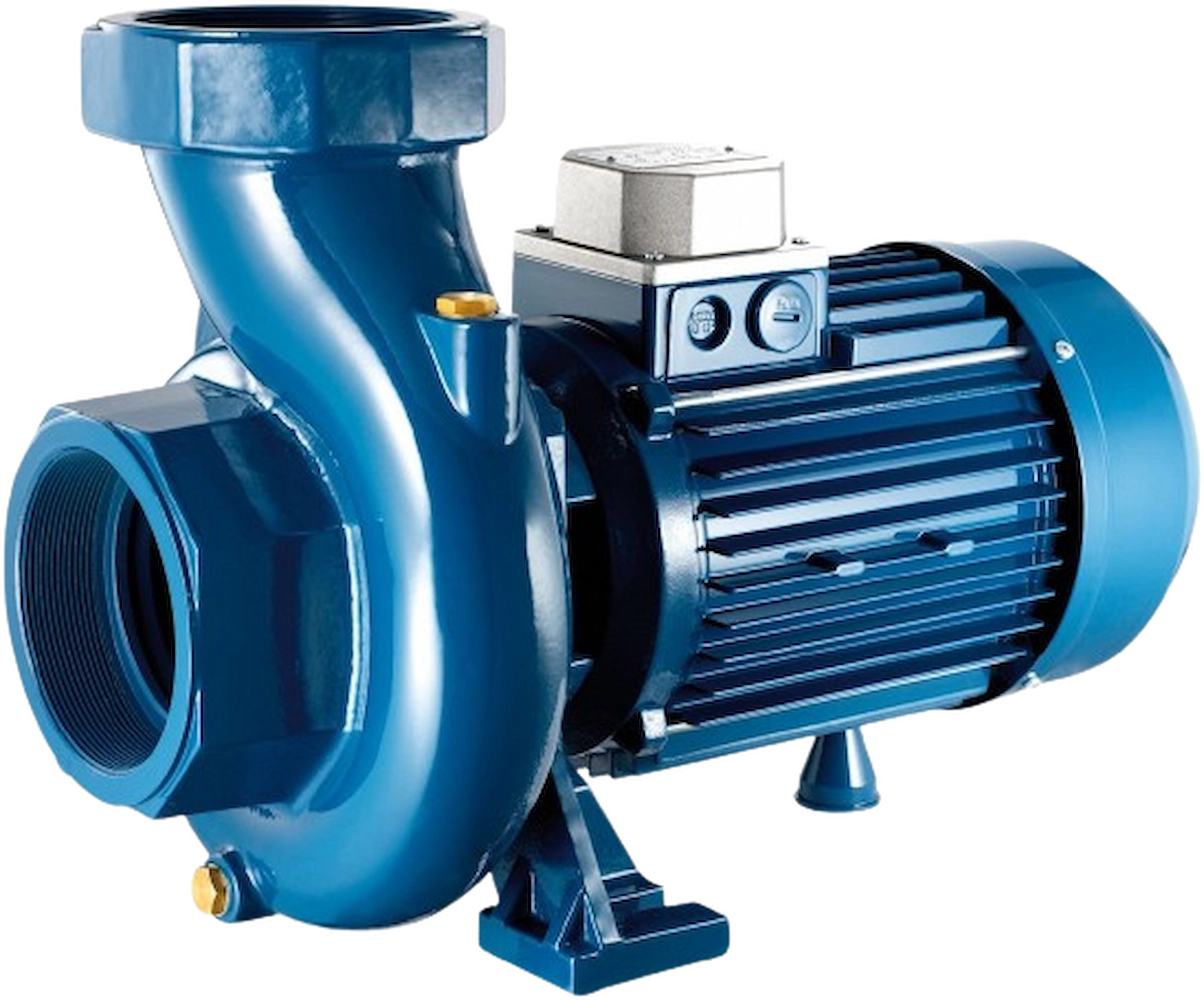

CG-1600 230/400 VAC

Centrifugal · 4 kW · 1,600 l/min

Dizel Dizel
CG-1600 230/400 VAC · 1,600 l/min
022500000
  • Single impeller centrifugal pump, medium sliding high delivery with 4" delivery openings
  • It is suitable for the fuel transfer
  • Flow according to manometric height: from 600 to 1,600 l/min
  • Maximum height: 17 m
  • Consumption: 15/8.8 A
  • Motor: 4 kW 230/400 VAC 50 Hz
  • 2,900 rpm
  • Thermal protector
  • Insulation Class: F
  • IP-44 protection
  • Maximum operating pressure: 1.7 bar
  • Liquid temperature: -20 ºC to +50 ºC

Size and weight (approx.):

  • Dim.: 480x250x330 mm (LxWxH)
  • Weight: 41,1 kg
