Electric Pumps
Family Selection / Electric Pumps / CG-150 230 VAC

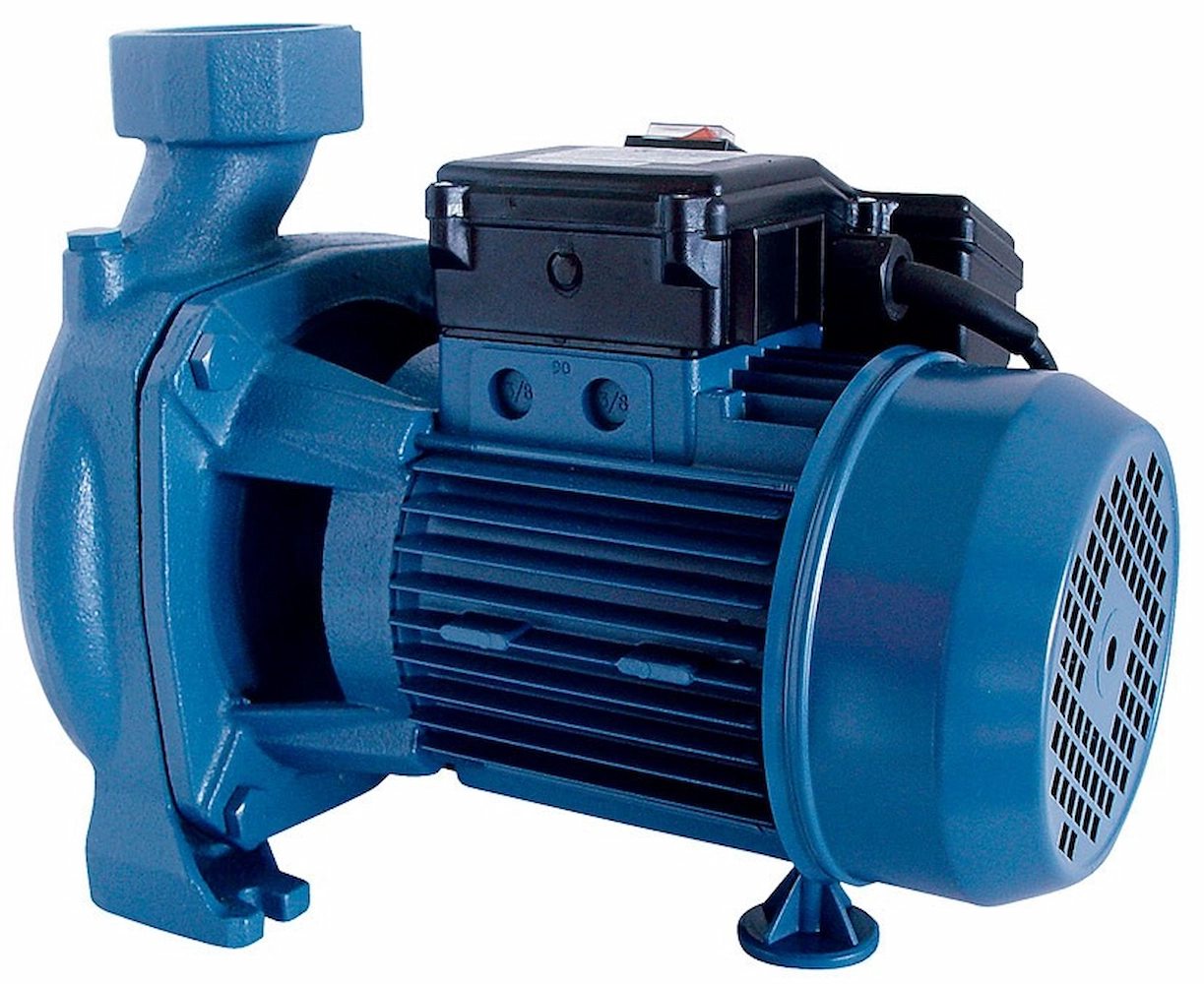

CG-150 230 VAC

Centrifugal · 1,1 kW · 100-500 l/min

Dizel Dizel
CG-150 230 VAC 50 Hz
02050-CF00000
CG-150 230 VAC 60 Hz
02050-CF00007
  • Centrifugal pump suitable for the fuel transfer
  • Flow according to manometric height: from 100 to 500 l/min
  • Maximum height: 25 m.c.a.
  • Suction with check valve: 6 m
  • Consumption: 5-9 A
  • Motor: 1.1 or 1.3 kW 230-240 VAC self-ventilated 50 or 60 Hz single-phase (according to the model)
  • 2,800 or 3,000 rpm (according to the model)
  • S1 continuous duty
  • Thermal protector
  • Connection through F2" (BSP)
Size and weight (approx.):
  • Size: 370x200x250 mm (length x width x height)
  • Weight: 23.3 kg
