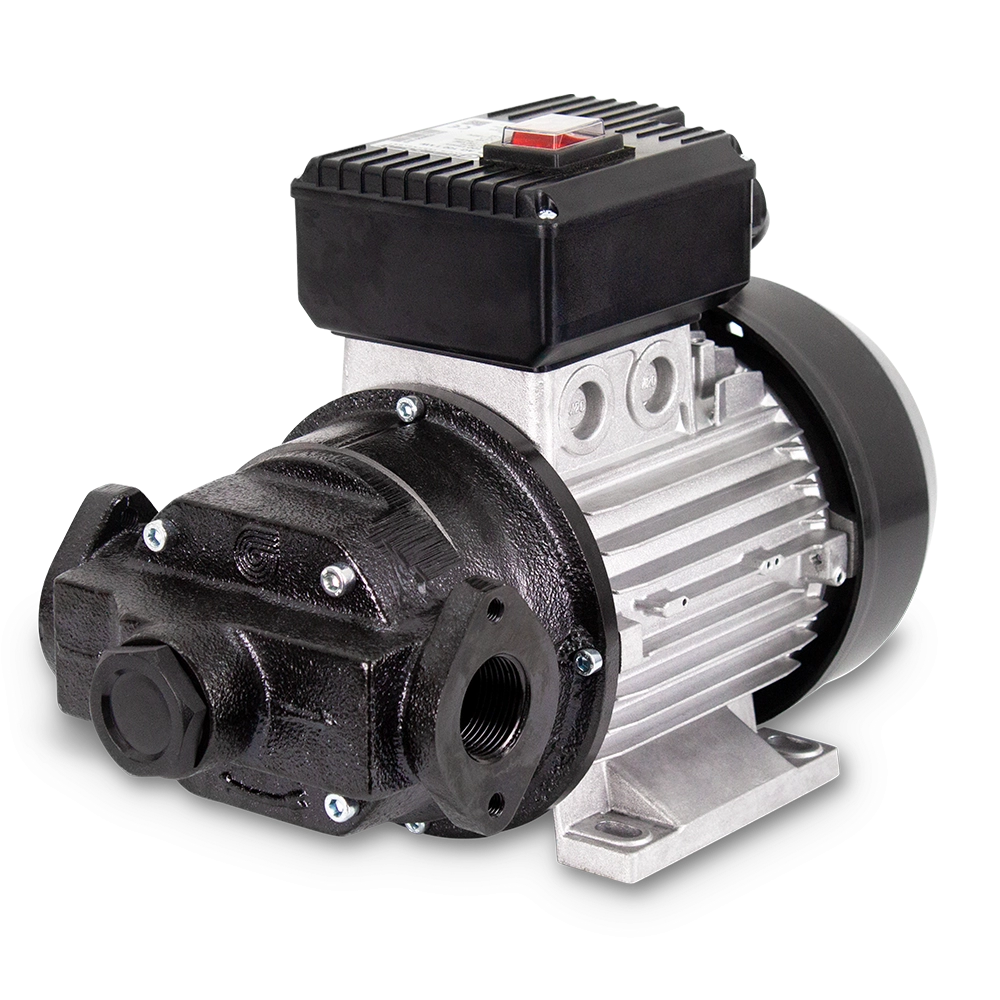

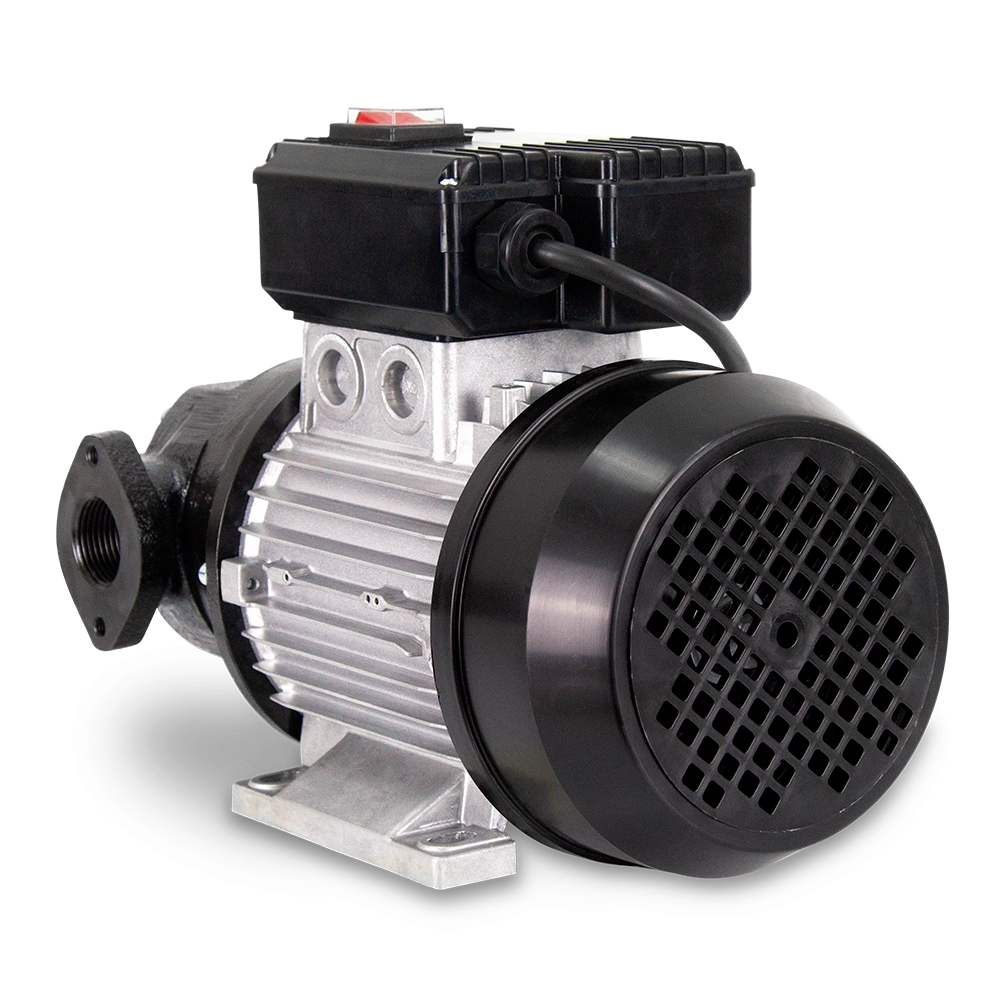

AG-100 230 VAC
Blade self-suction 1 kW · 100 l/min
AG-100 230 VAC · 100 l/min
00360
AG-100 230 VAC · VITON · B100
003600400
- Self-suction - self-priming. Eccentric of self-adjusting blades
- With recirculation bypass
- Suction: 2.7 m · Delivery: 30 m
- Priming pipe suction: 5 m
- Free flow: 100 l/min
- Consumption: 4-6 A
- Motor: 1 kW 230 VAC 50/60 Hz single-phase self-ventilated
- 1,500 rpm
- With thermal protector
- S1 Continuous duty
- IP-55 Protection
- Connection through F1" (BSP) threads and flanges
- ON/OFF luminous switch with IP-55 protection
- 3 m electric cable with homologated plug
- Anti-rust treatment
Size and weight (approx.):
- Dim.: 365x165x245 mm (length x width x height)
- Weight: 15.15 kg
