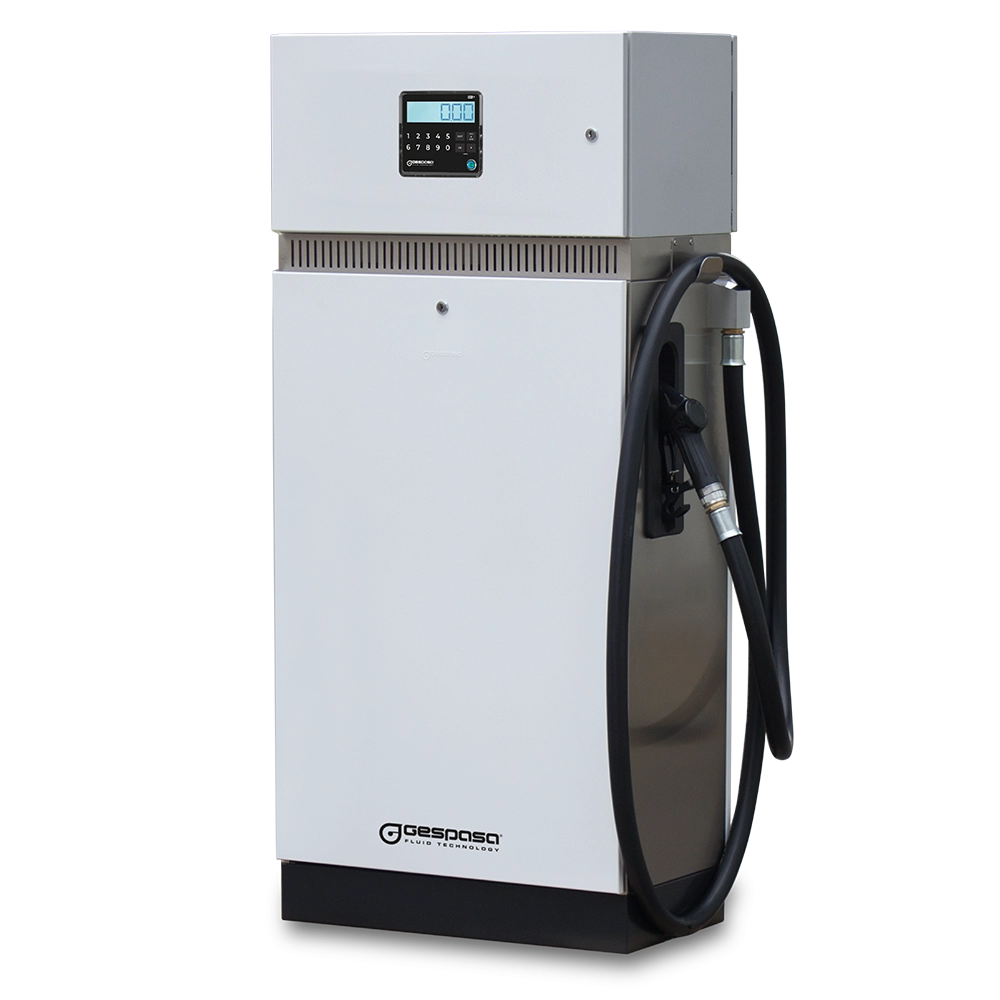

SMHK-90

70-90 l/min · ±0.2 %

Biodizel Biodizel
Dizel Dizel
SMHK-90-60 users · Biodiesel mixer supply kit with GK-7 own consumption controller
26765-CF00000
SMHK-90-130 users · Biodiesel mixer supply kit with GK-7 own consumption controller
26765-CF000001
  • Supply kit composed of two hydraulic pumps with piston meters.
  • It is designed for mixing diesel with oil to get mixed biodiesel.
  • It has an inlet of two independent liquids and supply of the mixed fluid.
  • Interior switch to supply 100% diesel or 100% oil.
  • The mixing selection to be supplied is made through a pulser and a display that there is in its interior.
  • You could supply any percentage among 5 and 95%.

Mixing selection:

  • The mixing selection is automatically made when the vehicle is identified.
  • When the vehicle is typed, you will assign a percentage of mixing to be made.
  • Each vehicle can have assigned a different mixing percentage.
  • When the user identifies the vehicle in the kit, this will automatically supply the assigned mixing percentage.
  • Optional: thermal printer

Composed of:

CHASSIS

  • Sides in stainless steel
  • Doors made of aluminium and the remainder frame made of steel
  • Special treatment to protect against corrosion and QUALICOAT CLASS 1 powder coating finishing
  • Weatherproof

HYDRAULIC GROUP composed of:

  • Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 70-90 l/min · Recirculation bypass valve · filter
  • Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: ±0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical totalisator
  • Motor: 2 motors of 1 kW 230/400 VAC · EExd with ATEX certificate, 3 ph, with IP-55 protection

* Optionally it could be supplied with single-phase motors of 1 kW 230 VAC · EExd with ATEX certificate, with IP-55 protection

  • Mixing system

CONTROLLER

  • GK-7: You will need to purchase a communication kit, which includes the necessary software and hardware to connect your dispenser to a PC

It is supplied with:

  • 4 m delivery diesel hose Ø25 mm double layer with adapters on both ends
  • Automatic nozzle with rotary swivel
Size and weight (approx.):
  • Size: 800x400x1,500 mm (length x width x height)
  • Weight: 110 kg

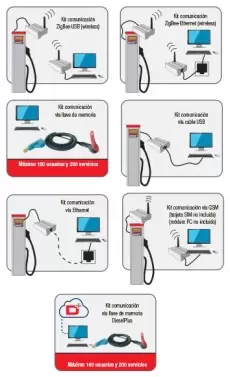

Optional accessories:
- Communication kit via MEMORY KEY (SOFTWARE + converter + memory key)
257120000
- Communication kit via CABLE (SOFTWARE + converter)
257110000
- Communication kit via ETHERNET (SOFTWARE + converter)
257130000
- Communication kit via MODEM / GSM (SOFTWARE + converter)
257140000
- 500 W ON LINE UPS
805001002
- Flexible suction tube with 2´´ flange
807610002
