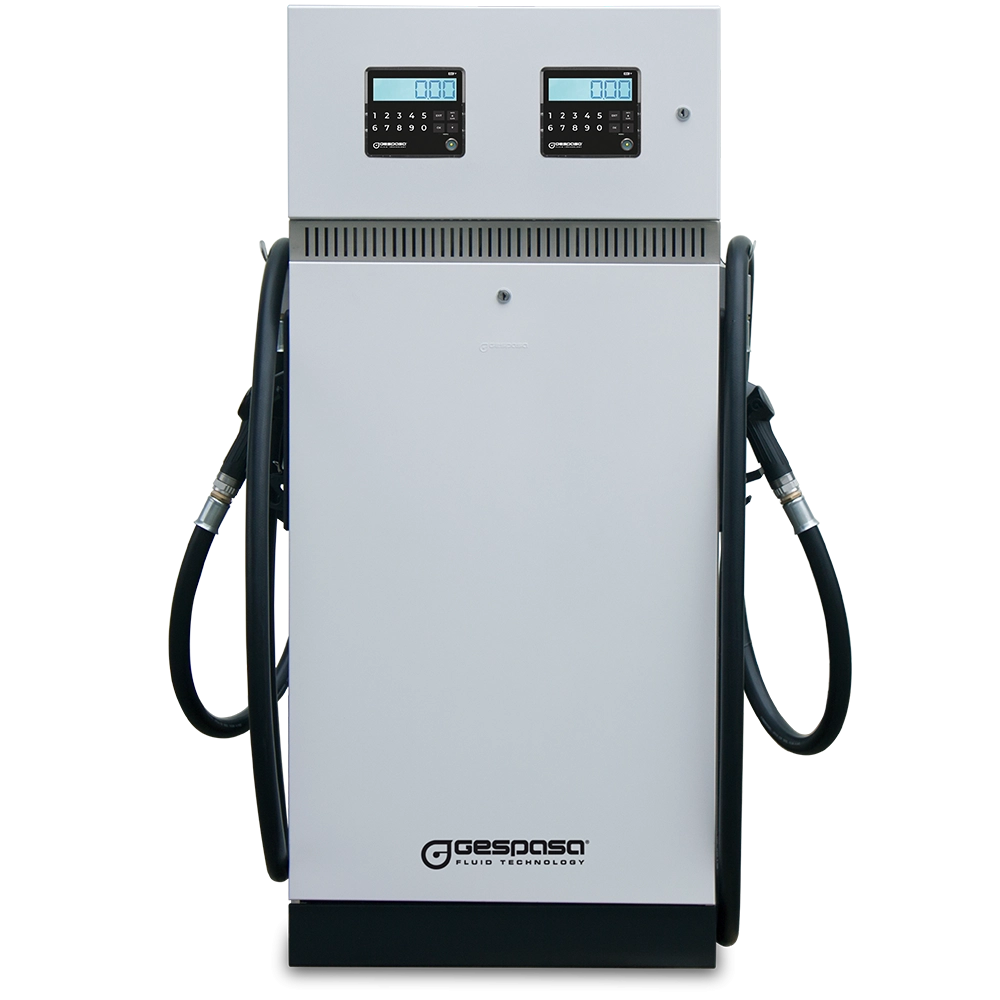

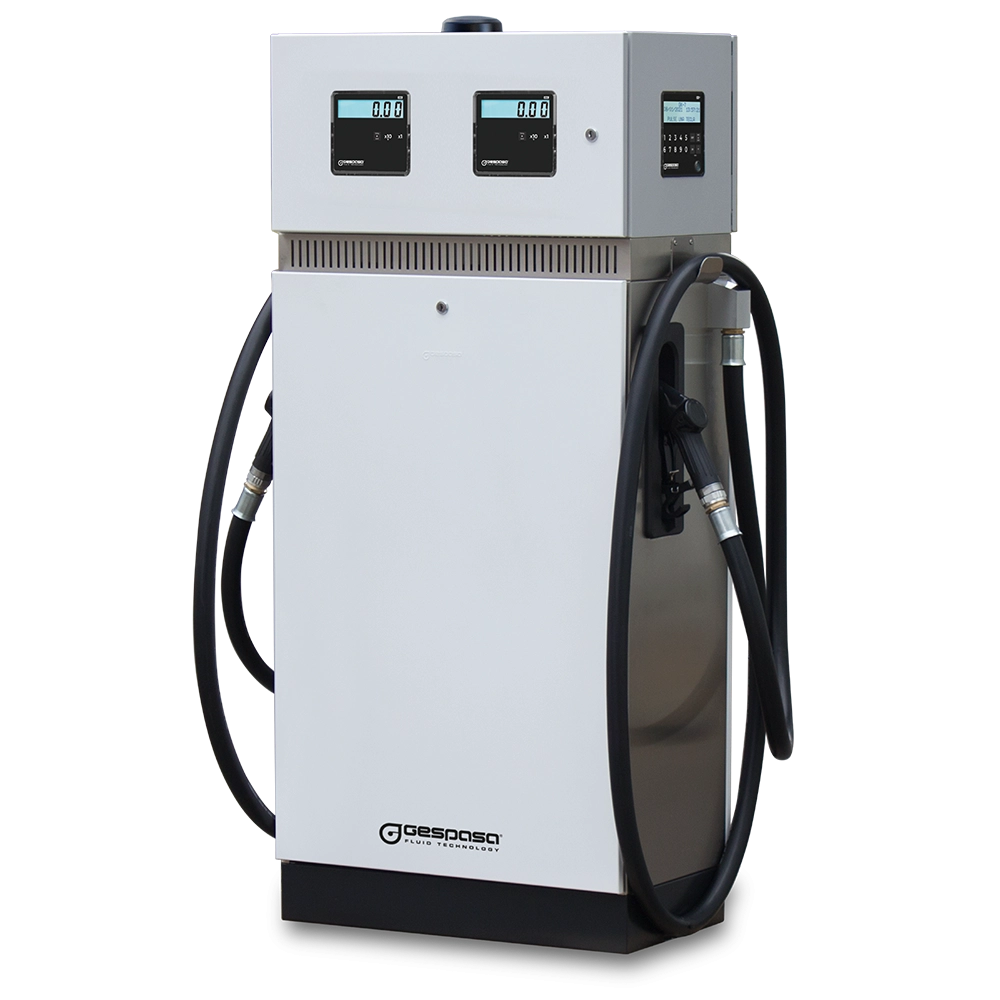

- Supply kits with ATEX components, special for installations of diesel, petrol, kerosene supply.
- This kit is composed of two high accuracy hydraulic groups and the GK-7 or GK-7Plus own consumption controller.
Composed of:
CHASSIS:
- Sides in stainless steel
- Doors made of aluminium and the remainder frame made of steel
- Special treatment to protect against corrosion and QUALICOAT CLASS 1 powder coating finishing
- Weatherproof
2 HYDRAULIC GROUPS composed of:
- Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 80 or 110 l/min · Recirculation bypass valve · filter
- Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: ±0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical totalisator
- EExd Motor with ATEX certificate · IP-55 protection:
- Triphase 80 l/min · 1 kW 230/400 VAC
- Single-phase 80 l/min: 1 kW 230 VAC
- Triphase 110 l/min: 1.5 kW 230/400 VAC
ELECTRONICS (x2): Electronic display
CONTROLLER:
- GK-7Plus: Communicate automatically and wirelessly, through 2G, to the cloud software www.dieselplus.net
- GK-7: You will need to purchase a communication kit, which includes the necessary software and hardware to connect your dispenser to a PC
It is supplied with:
- 4 m delivery diesel double layer hose with 1" adapters in both ends
- Automatic nozzle
Size and weight (approx.):
- Dim.: 800x400x1500 mm (LxWxH)
- Weight: 146 kg
