GK-7

CONNECTION TO PC

Dizel Dizel
  • The GK-7 own consumption is a equipment suitable for the supply control, allowing its use only to authorized personnel.
  • Depending on the security level that you want to implement, we can identify the user and/or the vehicle through codes and/or identification key.
  • Supply with or without preset litres
  • The GK-7 controller in TOTEM column chassis, to be directly fixed on the ground without bases or additional accessories, is made of steel. It can placed in the outside; then the controller is protected and it is long-lasting because of the special interior and exterior treatment against corrosion.



We have the following GK-7 versions to customize installations of different sizes:

60 users/vehicles · 200 services
GK-7 · 60 users + METALLIC CABINET · OWN CONSUMPTION CONTROLLER
25130-CF00000
GK-7 · 60 users + TOTEM · OWN CONSUMPTION CONTROLLER
25136-CF00000
GK-7 · 60 users + METAL BOX · OWN CONSUMPTION CONTROLLER
25334-CF00000
130 users/vehicles · 500 services
GK-7 · 130 users + METALLIC CABINET · OWN CONSUMPTION CONTROLLER
25130-CF00001
GK-7 · 130 users + TOTEM · OWN CONSUMPTION CONTROLLER
25136-CF00001
GK-7 · 130 users + METAL BOX · OWN CONSUMPTION CONTROLLER
25334-CF00001

* Communication with key maximum 100 users/vehicles and 200 services

1,000 users/vehicles · 1,000 services
GK-7 · 1,000 users + METALLIC CABINET · OWN CONSUMPTION CONTROLLER
25130-CF00002
GK-7 · 1,000 users + TOTEM · OWN CONSUMPTION CONTROLLER
25136-CF00002
GK-7 · 1000 users + METAL BOX · OWN CONSUMPTION CONTROLLER
25334-CF00002
(+) internal THERMAL TICKET PRINTER
FE006002
(+) PROTECTION SUNSHIELD
FE016001
OPTIONAL IDENTIFICATION SYSTEMS
(+) Proximity card reader
FE017002
(+) Magnetic card reader
FE017003
(+) TAG reader with spiral cable
FE017004
Size and weight (approx.):

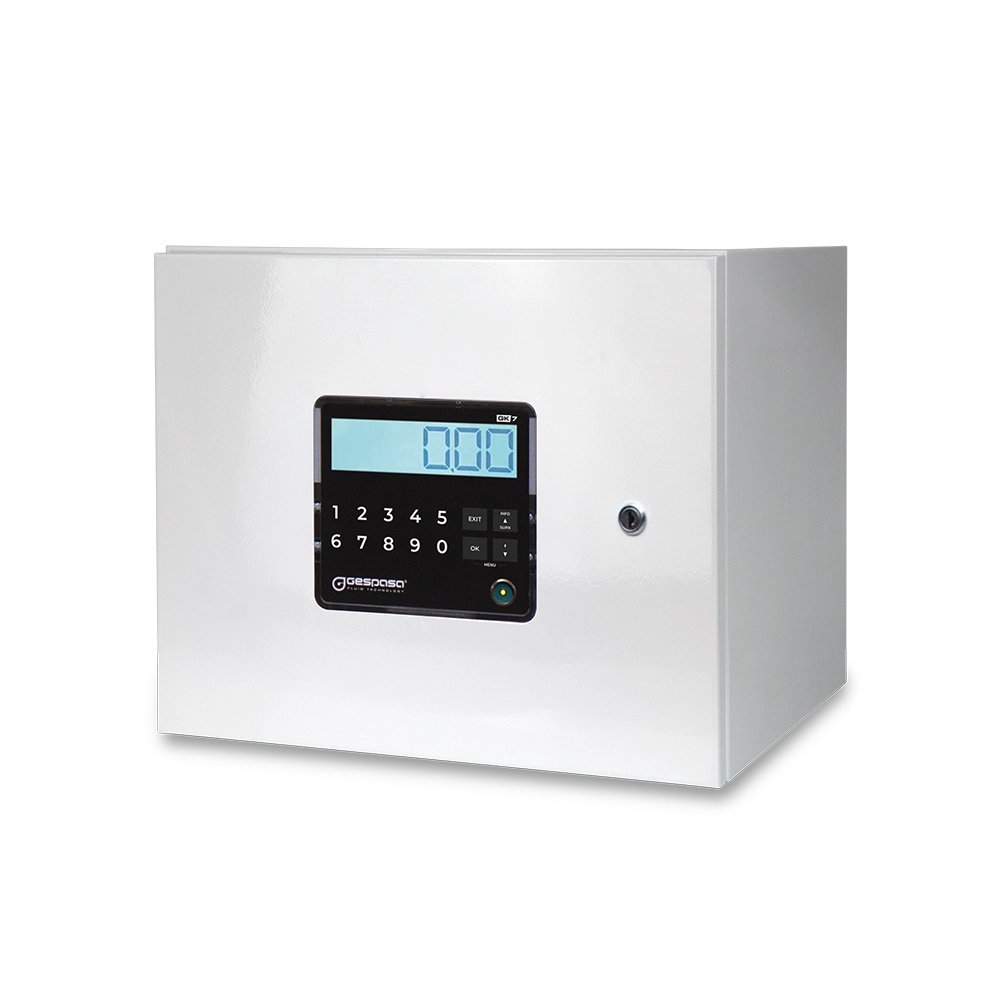

GK-7 + METALLIC CABINET
  • Dim.: 550x400x410 mm (length x width x height)
  • Weight: 17 kg

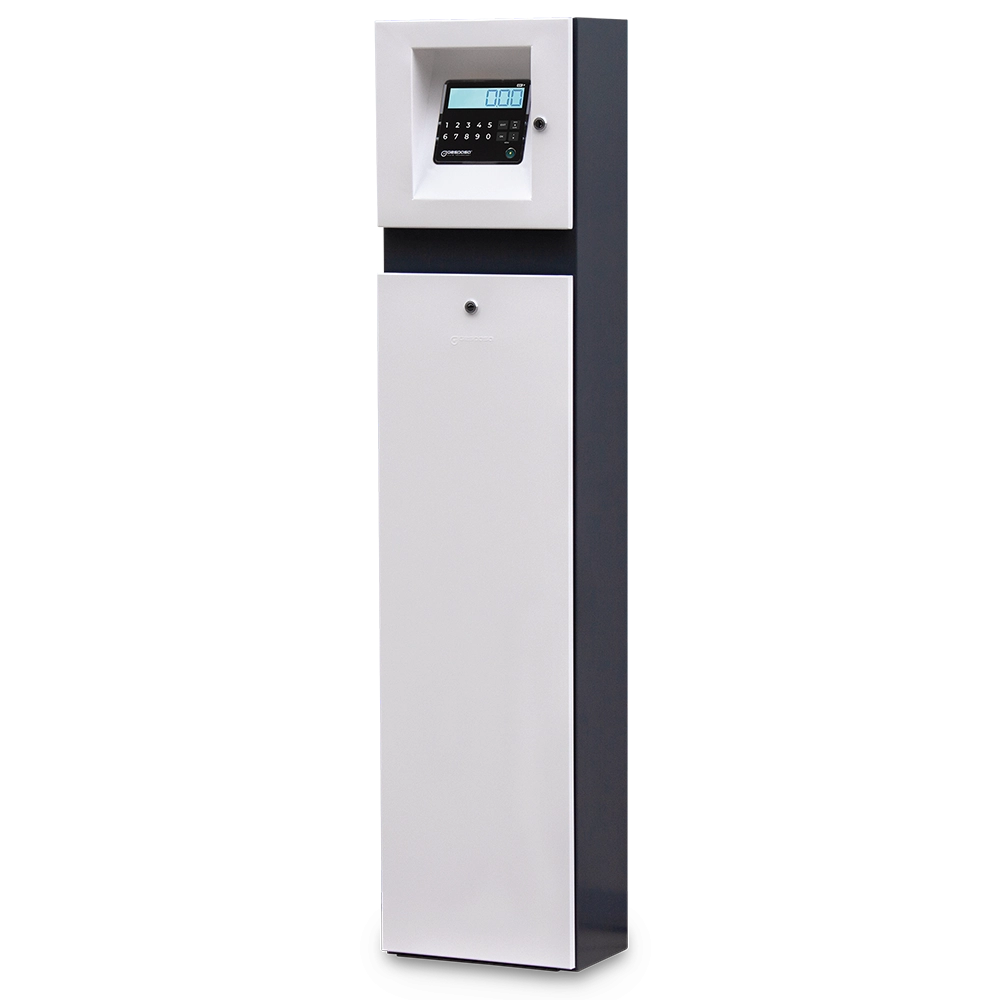

GK-7 + TOTEM

  • Dim.: 305x280x1550 mm (length x width x height)
  • Weight: 45 kg

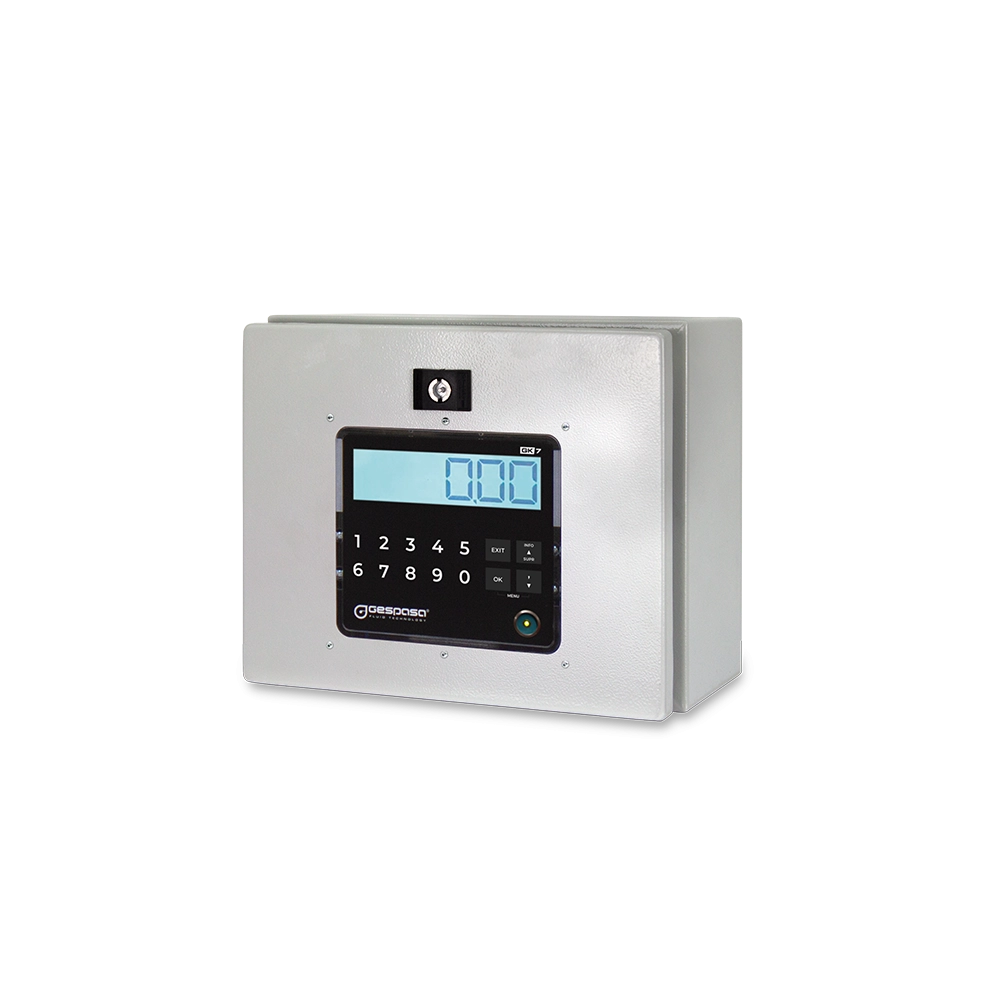

GK-7 + METALLIC BOX

  • Dim. 300x152x248 mm (length x width x height)
  • Weight: 4.150 kg
 UsersVehiclesServicesIt is supplied with
 GK-7 of 60


60

60

200

COMPACT 50K-12
COMPACT 50K-230
COMPACT 75K-230
COMPACT 100K-230

TOTEM 50K-230
TOTEM 75K-230
TOTEM 100K-230

 GK-7 of 130*

 130 130500

COMPACT 50K-230
COMPACT 75K-230
COMPACT 100K-230

TOTEM 50K-230
TOTEM 75K-230
TOTEM 100K-230

SHK-80
SHK-110
SHK-80D
SHK-110D

 GK-7 of 1000


 1000

 1000

1000

SHK-80
SHK-110
SHK-80D
SHK-110D

 *Communication with key maximum 200 services and 100 users

The equipment allows defining different situations to be adjusted to your requirements:

  • User identification: we only identify the users. It is specially useful for cooperatives that want to identify only the person who is supplying.
  • Vehicle identification: we only identify the vehicles. It is specially useful for installations where you only want to identify and control the vehicles and their consumption, without identifying the users.
  • User and vehicle identification: It is the most complete system, offering a high level of security. It is specially useful for installations with a big number of users and/or vehicles, or where the users are often changing the vehicle.

Technical data:

  • Voltage: 230 or 110 VAC (available version at 12/24 VDC)
  • Built-in supply inlet filter
  • Frontal: LCD Display alphanumeric of 4 lines and 20 characters
  • Keypad of 14 keys
  • Consumption: 30 W
  • Service Temperature: from 0 ºC to 40 ºC
  • Relative Air Humidity: among 20 and 80 %
  • Built-in identification key reader

Controller features:

It controls:

  • Supply date and hour
  • Users
  • Vehicles
  • Supplied litres by users and/or vehicles
  • Car mileage (or hours) and consumption
  • Tank litre stock
  • The services are saved in memory and can be transferred to a computer.

The inquiry and configuration operations can be made from the computer through the GKSuite software or directly from the supply kit if you have the code or the Supervisor key. Then you can:

  • Type or delete user and/or vehicles;
  • Assign or change codes or user and/or vehicle keys;
  • Calibrate the kit;
  • Consult the done supplies;
  • Consult and regularize the tank stock;
  • Configure communication and other controller options
  • If you want to manage the kit through a computer the kit potential increases in:
  • a more comfortable and efficient management of all typing, deletion, modification, and consult operations because they are done from the computer;
  • adding the information generated by the kit in a data base;
  • the possibility of exporting the information managed by the program to Excel and .txt (text) formats for its export to other data base systems or programs;
  • the information access control through permissions for different user profiles;
  • Multiconsole: with a computer, the GKSuite software and as many licences as controllers you want to control; you could manage different equipment, both local and remote, in a centralised way;
  • different communication systems to connect the computer with the controller or controllers: via memory key, cable, Ethernet or GSM modem
