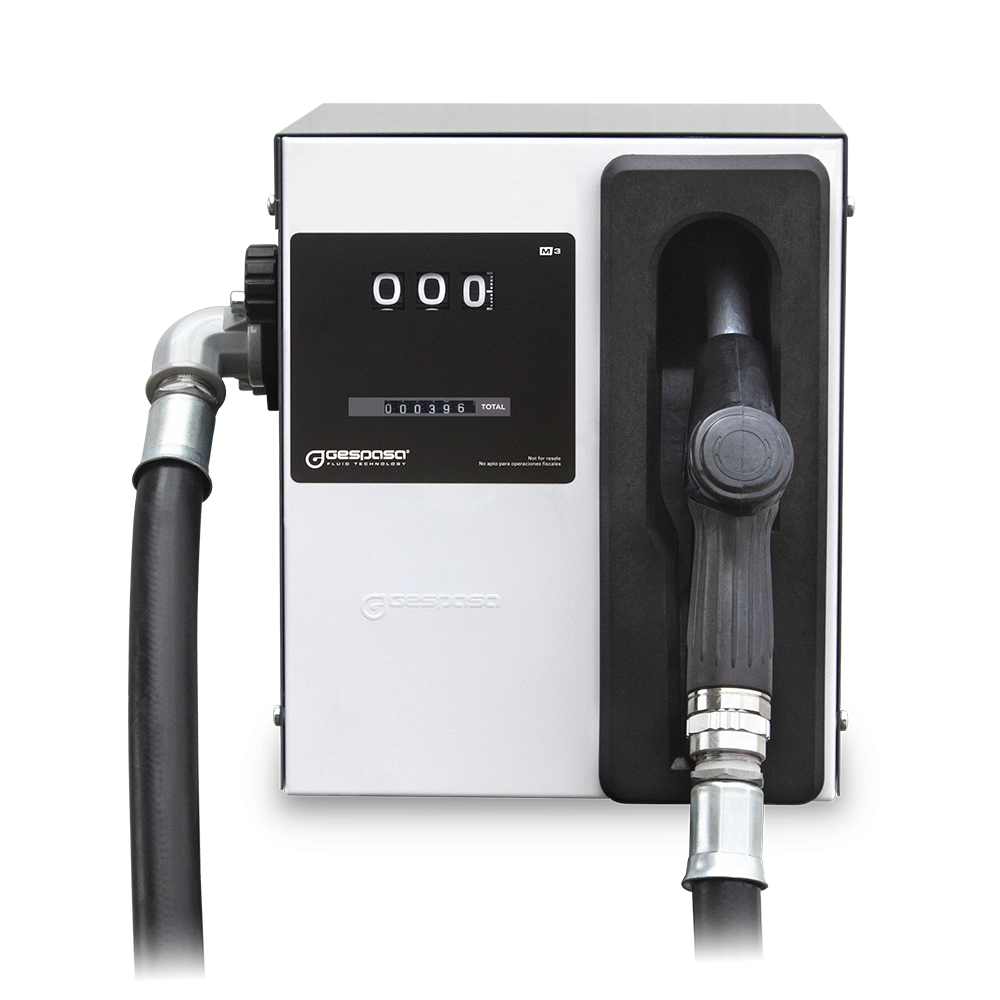

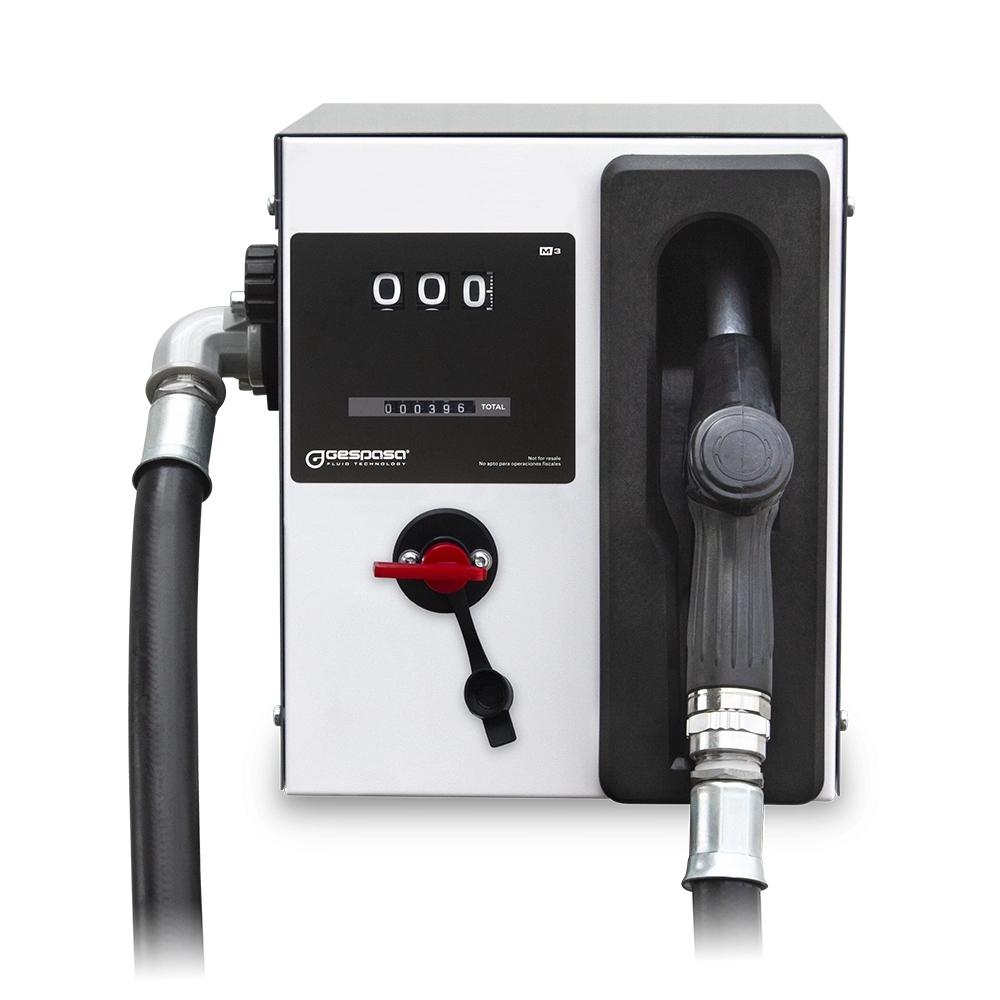

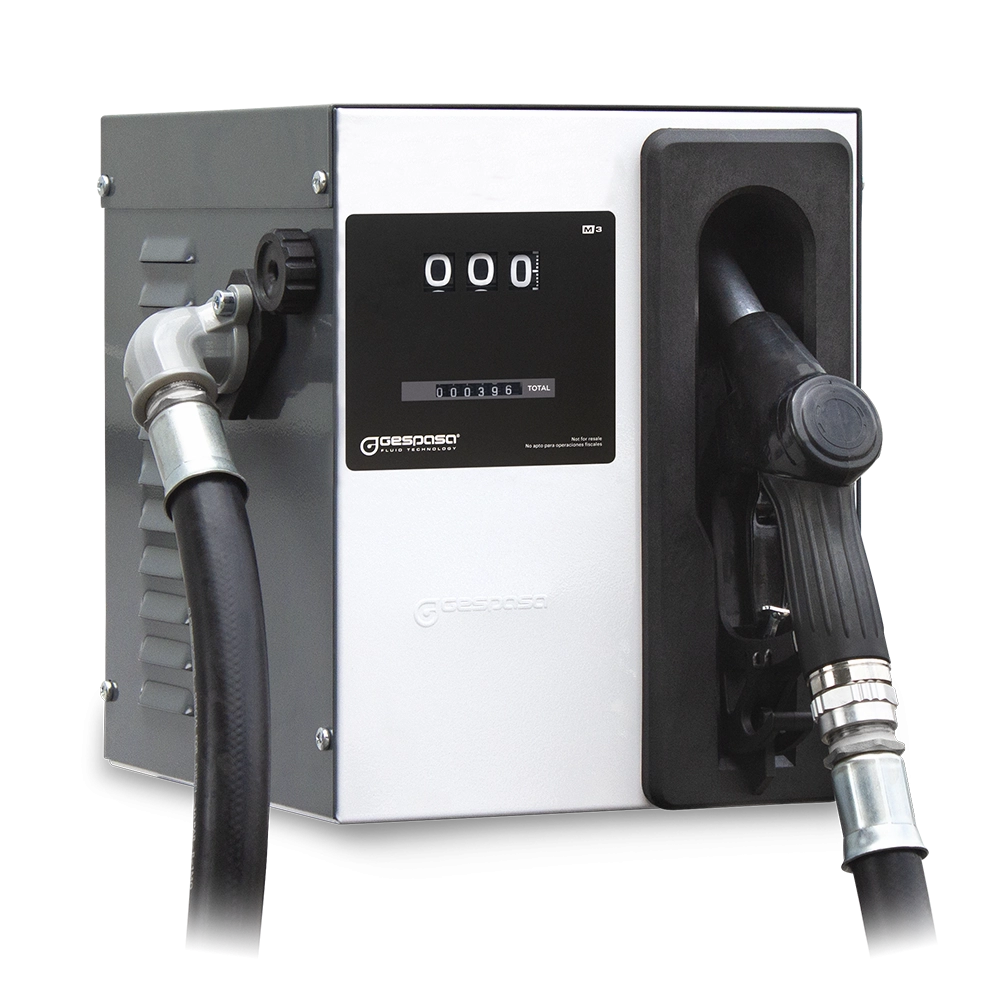

COMPACT M · MECHANICAL SUPPLY KITS

Dizel

Benzin

Mechanical compact supply kits suitable for the diesel or petrol transfer to own consumption vehicles.

Composed of:

CHASSIS:

made of steel
interior and exterior treatment to protect against corrosion
high epoxid paint
weatherproof

PUMP:

self-suction with self-adjusting blades

METER:

MG-80 mechanical meter · Accuracy ±1 %

NOZZLE:

automatic

HOSE:

4 m delivery diesel hose double layer, with adapters in both end

DIESEL

COMPACT 50M-12 V · Mechanical supply kit

28110-CF00000

IRON-50 12 VDC · Flow: 35-45 l/min

Size and weight (approx.):

Dim.: 380x345x360 mm (LxWxH)
Weight: 18 kg

COMPACT 50M-230 V · Mechanical supply kit

28040-CF00000

IRON-50 230 VAC · Flow: 40-50 l/min

Size and weight (approx.):

Dim.: 380x345x360 mm (LxWxH)
Weight: 21 kg

COMPACT 75M-230 V · Mechanical supply kit

28270-CF00000

IRON-75 230 VAC · Flow: 65-70 l/min

Size and weight (approx.):

Dim.: 380x345x360 mm (LxWxH)
Weight: 21 kg

COMPACT 90M-12 V · Mechanical supply kit

28190-CF00000

AG-90 12 VDC · Flow: 70-80 l/min

Size and weight (approx.):

Dim.: 383x345x360 mm (LxWxH)
Weight: 28.5 kg

COMPACT 100M-230 V · Mechanical supply kit

28280-CF00000

AG-100 230 VAC · Flow: 75-85 l/min

Size and weight (approx.):

Dim.: 383x435x360 mm (LxWxH)
Weight: 32 kg

PETROL

COMPACT 50M-12 V Ex · Mechanical supply kit

28140-CF00001

COMPACT 50M-230 V Ex · Mechanical supply kit

28140-CF00000

COMPACT 800M-230 · Mechanical supply kit

28150-CF00000

Petrol	Voltage	Mechanical meter (Viton)	Automatic nozzle	Flow (l/min)	Size and weight (approx.)
COMPACT 50M-12 Ex	12 VDC	MG-80V	PA-80	40-50	383x345x360 mm	28,5 kg
COMPACT 50M-230 Ex	230 VAC			40-50		28,5 kg
COMPACT 800M-230	230 VAC			70-80		32 kg

Optional:

- Hexagonal pedestal base (COMPACT) (height 1 m)

800400015

- F1" aluminium flange kit

800003029

- 4 m Ø19 mm antistatic petrol hose with adapters in both ends

803406101
