USE

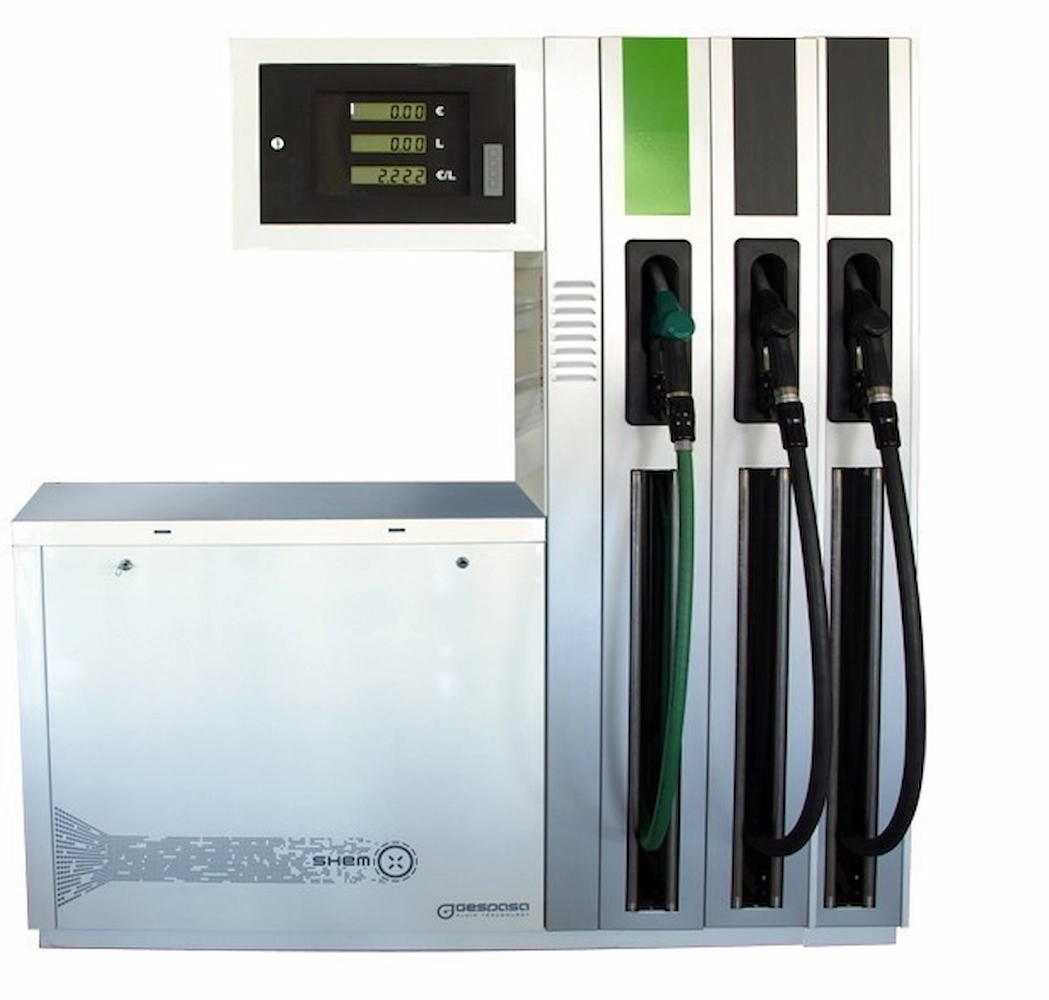

- The SHEM commercial dispensers with GESPASA electronic calculator and ATEX custody are suitable for the diesel or petrol supply and sale.
- It is suitable for service stations, cooperatives, transport companies and so on.
FEATURES
- These models are available from 1 to 8 hoses, with a maximum of 4 pumps.
- The electronics is composed of 3 displays that show:
- Price per litre
- Total amount
- Supplied litres
- The electronics allows to preset the product quantity to be supplied.
- The pumping unit has a degasifier with float chamber that elimiantes the air and vapour of the fuel.
- It is easy its access to all its components.
- Environment temperature: -25 ºC to +55 ºC
- Liquid temperature: -10 ºC to +50 ºC
Composed of:
►CHASSIS:
- Made of steel with a special interior and exterior treatment against the corrosion
- Finish with brilliant epoxid paint. Weather-resistant.
►HYDRAULIC GROUP:
Composed of:
Pump
- Flow: 50 l/min · 80 l/min (according to the model)
- Aluminium pump body
- Self-suction, eccentric of self-adjusting blades with gas separator
- Recirculation bypass valve
- Check valve
- Interior filter
- Self-tightened belt system
Meter
- of aluminium of 4 pistons with positive movement
- Accuracy: 0,2 % (flow from 4 to 80 l/min)
- Pulser of 2 channels of 100 pulses per litre and mechanical totalizer
Motor
- 1 kW 230/400 VAC · triphasic EExd explosionproof (ATEX)
Optional:
- 1 kW 230 VCA 50 Hz · single-phase EExd explosionproof (ATEX)
►ELECTRONIC CALCULATOR
- Electronic LCD with 6-digit display for volume and amount and 4-digit display for price
