Accessories for installation
Family Selection / Accessories for installation / TRUCK KIT GK-7Plus · AG-90 12 or 24 VCC

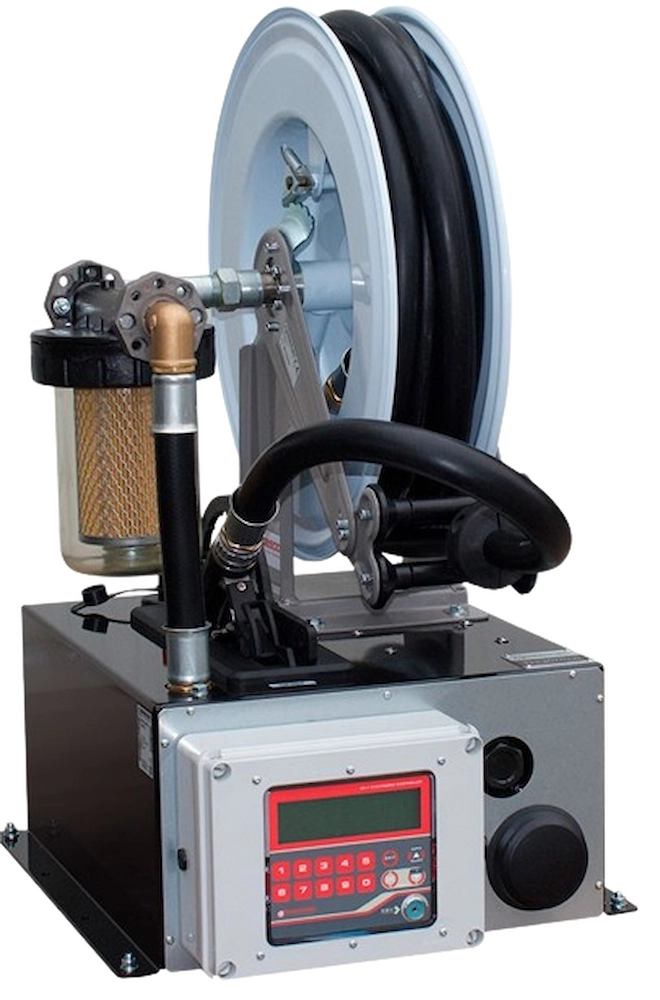

TRUCK KIT GK-7Plus · AG-90 12 or 24 VCC

Dizel Dizel

Yeni

TRUCK KIT with GK-7Plus · AG-90 12 VDC
15771-CF00000
TRUCK KIT with GK-7Plus · AG-90 24 VDC
15771-CF00003
  • Fuel supply kit assembled in a fixed chassis for the fuel supply, filtering and measurement. It is suitable to supply fuel from a van or a truck.
  • It can be assembled in a truck, lorry or a fixed installation.
  • It is equipped with the GK-7Plus control console. Instantaneous wireless Cloud communication. Data consultation through the Internet or APP in your smartphone.

Standard kit composed of:

  • Hose-reel with 10 m 1" hose
  • PA-80 · Automatic nozzle
  • Nozzle hanger
  • AG-90 12 or 24 VDC self-suction pump · 55 l/min* (with Ø1 1/2" suction hose)
  • Connection box for a battery connection cable
  • MGI-110 · Pulser · Accuracy ±0.5 %
  • FG-100 · Transparent microfilter · 5 µm (micron)
  • GK-7Plus console + antenna
Size and weight (approx.):

Set:

  • Dim.: 500x850x850 mm (length x width x height)
  • Weight: 63 kg

Base:

  • Dim.: 500x510 mm (length x width)

Optional:
