BD-30 12 or 24 VDC
diaphragm · 0.18 kW 30 l/min

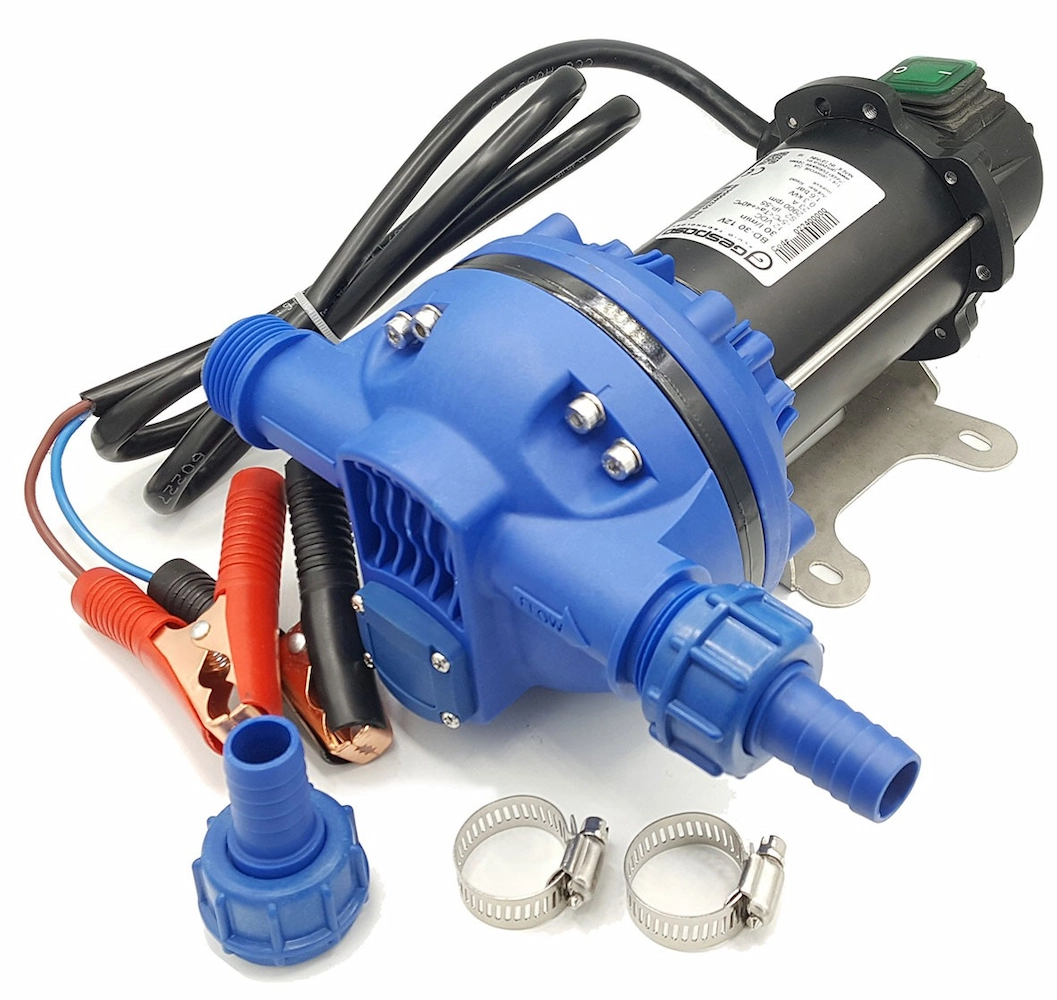

BD-30 12 VDC · Self-priming diaphragm pump for AdBlue/DEF · 30 l/min
02240-CF00000
BD-30 24 VDC · Self-priming diaphragm pump for AdBlue/DEF · 30 l/min
02241
- Flow: 30 l/min
- Consumption: 12 A (12 VDC) · 7,3 A (24 VDC)
- Motor: 0.18 kW 12 or 24 VDC
- 1,750 rpm
- S2 20´ duty
- IP-55 protection
- ON/OFF Switch
- Inlet/outlet: F3/4"
- Min./max. temperature: -5 ºC / +40 ºC
- Pressure: 1.6 bar
Size and weight (approx.):
- Dim.: 265x265x130 mm (length x width x height)
- Size: 3,200 kg
