MGI-400BLUE

±0.8 % · F2"

Su Su
Adblue/Def Adblue/Def

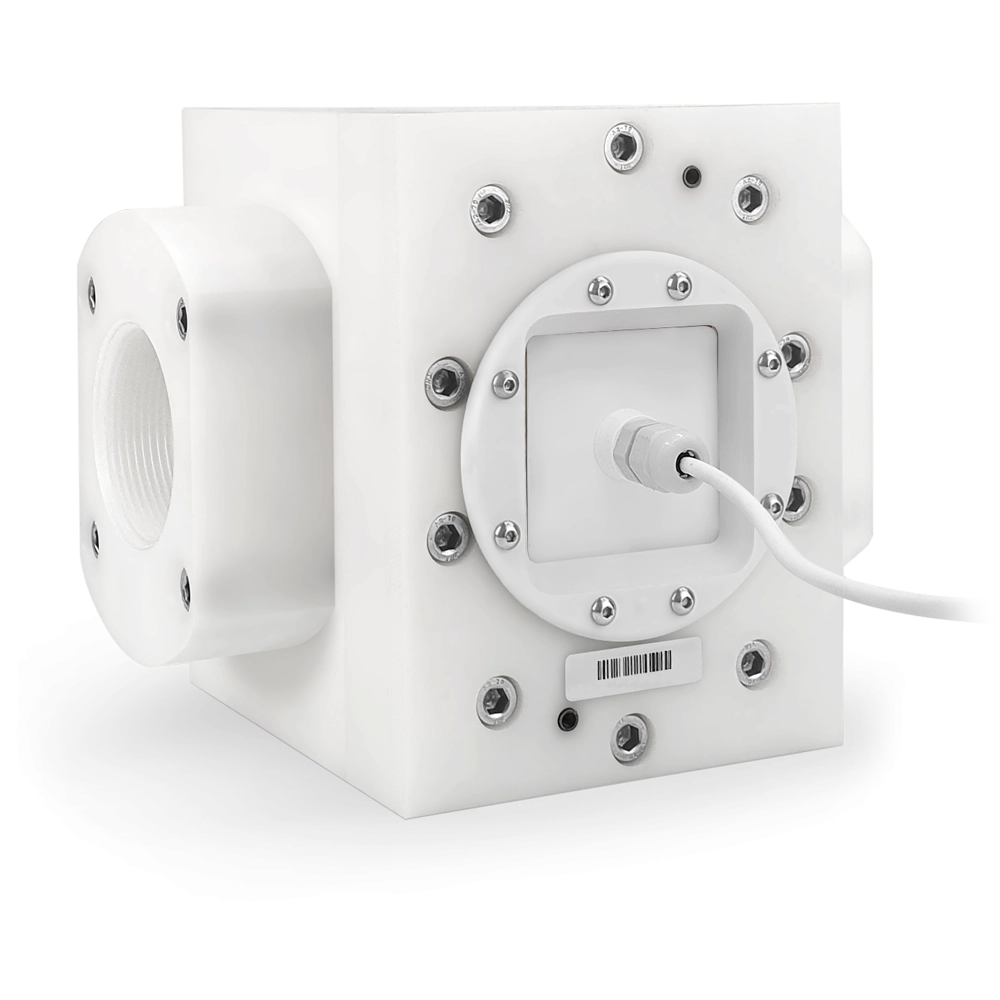

MGI-400BLUE · Pulser
32620
  • Pulser for its in-line assembly, making easier the exact information of the fluid management and control systems.
  • It is made of heavy-duty plastic material with tolerance to temperature changes.



Technical data:

  • Flow: 20-400 l/min
  • Fluid viscosity: 1-200 cSt
  • Max. voltage: 28 VCA
  • Max. power: 3 W
  • Max. intensity: 100 mA
  • IP-66 protection
  • Accuracy: ±0.8 %
  • Maximum pressure: 5 bar
  • Break pressure: 10 bar
  • Min./Max. temperature: -10 / +50 ºC
  • Max. Humidity: 95 HR
  • Two communication channels through REEDS
  • 5.5 pulses per litre and channel
  • Inlet/outlet connection thread: F2" GAS (BSP) with flanges
Size and weight (approx.):
  • Dim.: 220x142x175 mm (length x width x height)
  • Size: 5.35 kg
