Meters
Adblue / Def / Meters / MGE-40BLUE · ELECTRONIC

MGE-40BLUE · ELECTRONIC

4-40 l/min · ±0.8 %

Su Su
Adblue/Def Adblue/Def

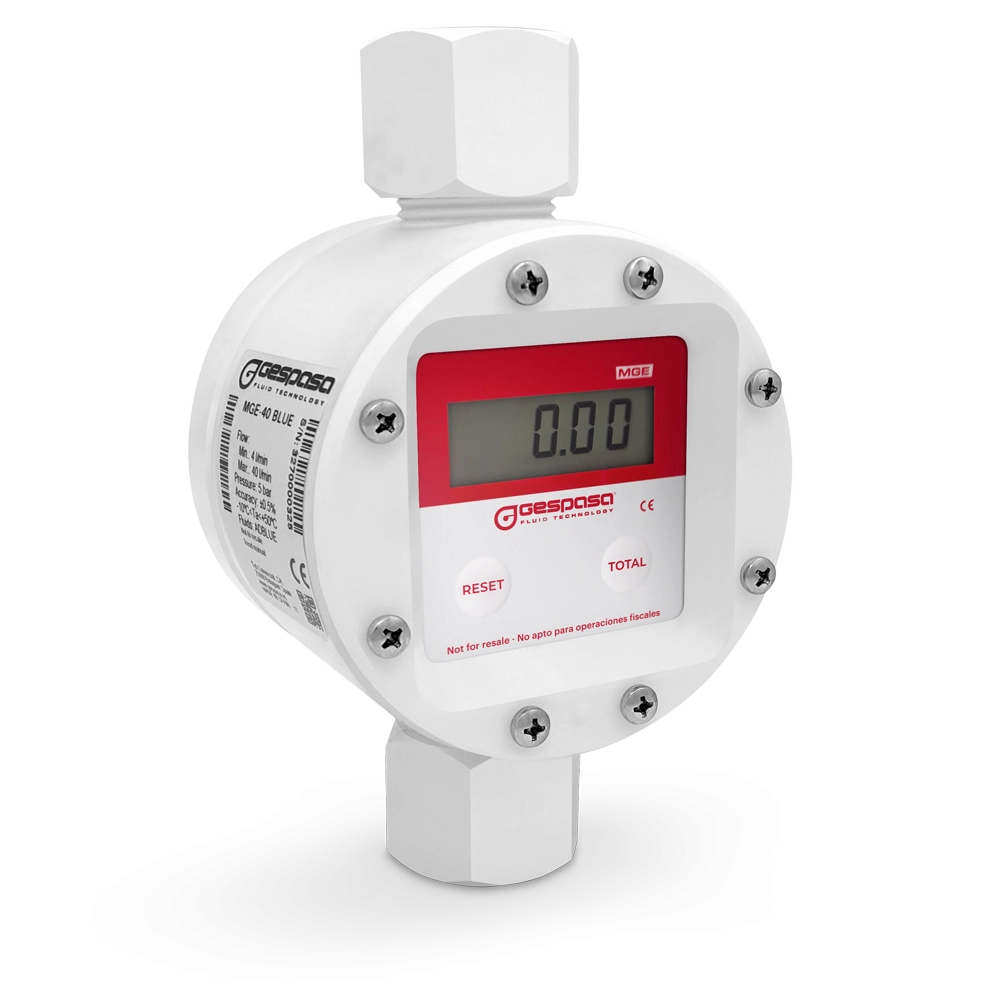

MGE-40BLUE · Electronic meter
32690
  • Electronic meter with measuring chamber, with high accuracy oval gears, and Display-LCD. Its measuring chamber allows measuring AdBlue/DEF, fuel, lubricant ... (please ask for other fluids). Made of heavy-duty plastic material and temperature change tolerance.
  • It can be fitted outdoors.
    It has a frontal facing with joint, avoiding the electronics damages if there is any fluid contact.
  • Removable facing to make easier the battery replacing.



Technical data:

  • Flow: from 4 to 40 l/min
  • Tropicalised electronics
  • 5-digit totalizer
  • It stores the litres of the last service.
  • Maximum pressure: 5 bar
  • Min./max. temperature: -10 ºC / +50 ºC
  • Accuracy: ±0.8 %
  • Inlet/outlet connection: F1"
  • Feeding by button battery of long duration
  • Low battery display
  • It has calibration parameters and stored litre totalizer in a PERMANENT MEMORY.
Size and weight (approx.):
  • Dim.: 103.5x80x170 mm (diameter x width x height)
  • Weight: 0.877 kg
