Adblue / Def / Meters / MGE-400BLUE · ELECTRONIC

MGE-400BLUE · ELECTRONIC

20-400 l/min · ±0.8 % · F2"

Su Su
Adblue/Def Adblue/Def

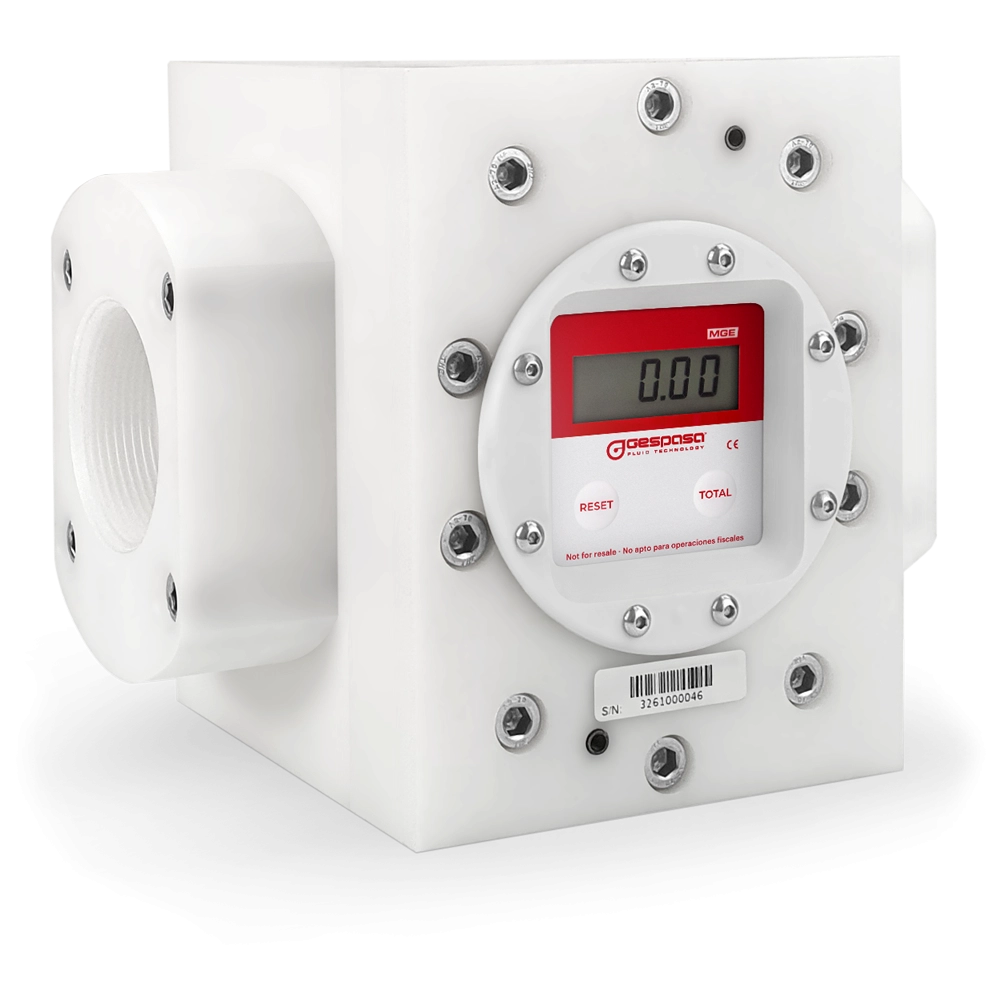

MGE-400 BLUE · Electronic meter
32610-CF00000
  • Electronic meter with oval gear measuring chamber
  • Its measuring chamber allows to transfer AdBlue/DEF, fuel, lubricant (please, consult other liquids).
  • It is made of heavy-duty plastic material with tolerance to temperature changes.
  • It is for private use.



Technical data:

  • Flow: 20-400 l/min
  • Display of 5 digits. It stores the litres of the last service.
  • Min./Max. temperature: -10 / +50 ºC
  • Max. Humidity: 95 HR
  • Accuracy: ±0.8 %
  • Maximum pressure: 5 bar
  • Break pressure: 10 bar
  • Inlet/outlet connection thread: F2" GAS (BSP) with flanges
  • Feeding by button battery of long duration (approx. 5 years)
  • Low battery alarm
  • It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY
Size and weight (approx.):
  • Dim.: 220x142x175 mm (length x width x height)
  • Weight: 5.35 kg
