Adblue / Def / Meters / GE · DISPLAY WITH HOSE MODULE

GE · DISPLAY WITH HOSE MODULE

±0.5 %

Dizel Dizel

Yeni

GE · 230 VAC · Display with hose module with volume preset
253400200
GE · 12-24 VDC · Display with hose module with volume preset
253400300

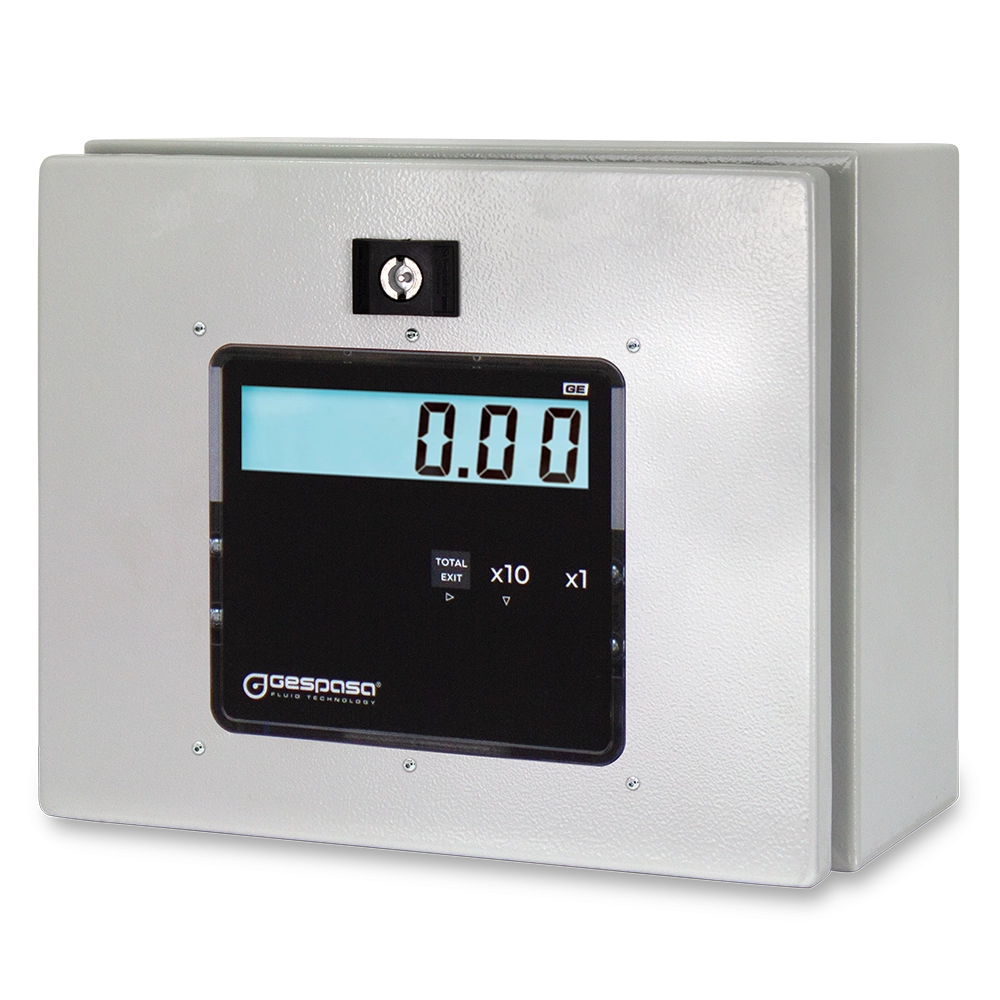

6-digit electronic tropicalised console with luminous display of liquid crystal, powered at 230 VAC or 12-24 VDC, which allows to:

  • See the partial and total of the supplied volume.
  • Connect to different types of meters with pulsers of 1 or 2 channels.
  • Preset the volume to be supplied, connecting it to a pump and/or solenoid valve.
  • Connect it to an external switch or nozzle holder.
  • Connect it to the GK-7M controller through the RS-485 communication bus and the GESPASA communication protocol.

KEYPAD FUNCTIONS:

TOTAL / EXIT: It shows the Total of the volume: By keeping pressed this key, the display shows the total of the supplied volume.

  Press "TOTAL" to cancel the volume preset.

- Key X10: It allows to preset. It increases 10 units each touch. When keeping pressed, it gets automatically increased.

- Key X1: It allows to preset. It increases 1 unit each touch. When keeping pressed, it gets automatically increased.

  • If the volume is among 0.00 and 9999.99, two decimals are shown.
  • If the volume is among 10000.0 and 99999.9, it only has one decimal.
  • If the volume is equal to or higher than 100000, no decimal is shown.

Size and weight (approx.):

  • Dim.: 250x100x200 mm (length x width x height)
  • Weight: 1.165 kg
