FG-450BLUE

200 µm 450 l/min · F2"

Adblue/Def Adblue/Def

Yeni

FG-450BLUE
66450-CF00000

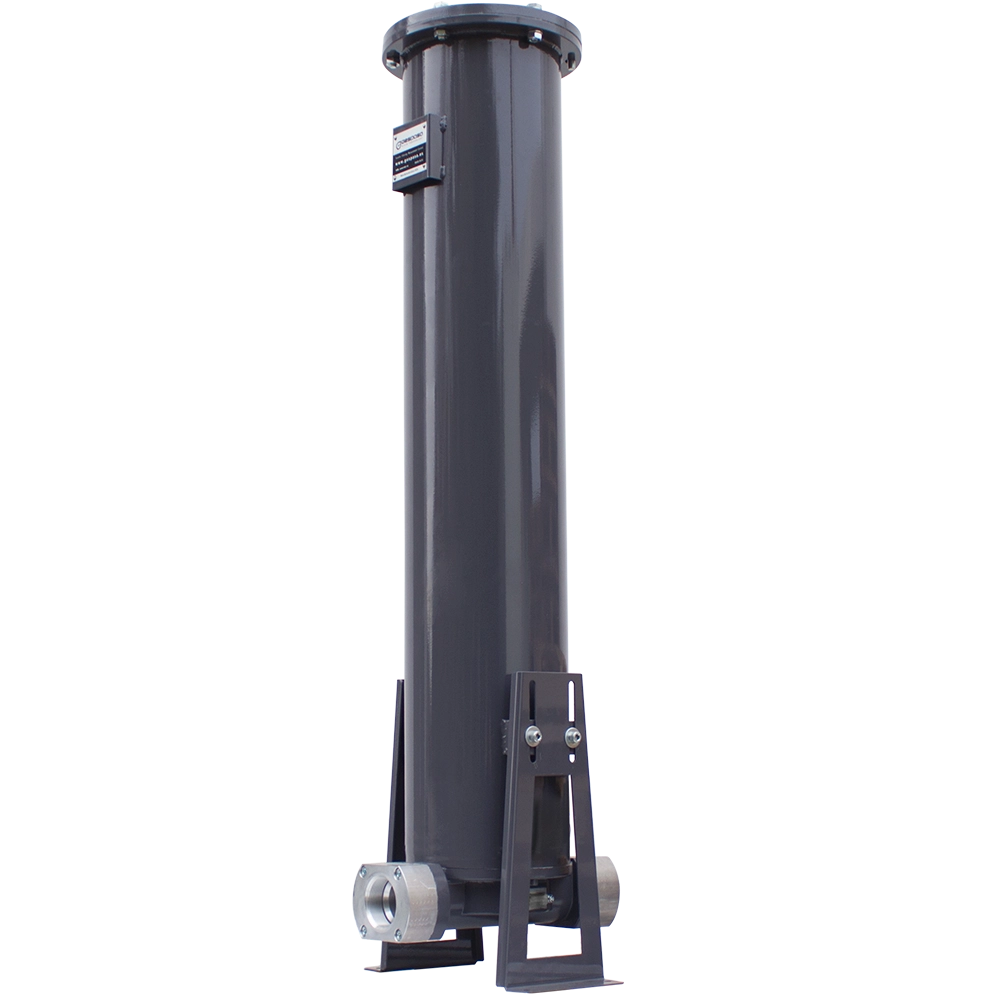

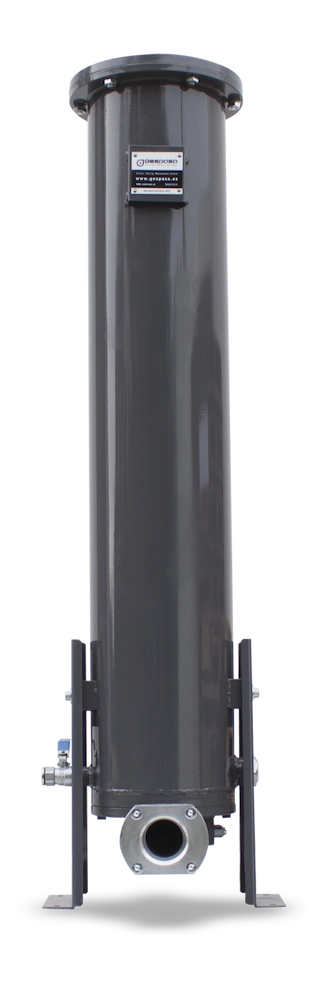

  • Microfilter with stainless steel body for the filtration of solid particles higher than 200 µm (micron).
  • Microfiltration of AdBlue and other compatible fluids
  • The microfilter is supplied with the filtering element installed.

TECHNICAL FEATURES

  • Cartridge with 200 µm (micron) mesh of stainless steel
  • Capacity: 30 litres in the housing interior
  • Flow: 450 l/min
  • Microfilter cover and heading: Aluminium with special treatment for AdBlue/DE
  • Body made of AISI-304 stainless steel
  • Differential manometer
  • Inlet/Outlet Connections: F2" BSP or flange
  • Manual lower drain valve
  • Installation: in the suction or delivery of the dispenser
  • Maximum operating pressure: 6 bar
  • Maximum housing pressure: 10 bar

Size and weight (approx.):

  • Dim.: Ø254x312x1150 mm (Ø x base x height)
  • Weight: 27 kg
