DUO Industrial pump dispensers with GK-7 controller
Adblue / Def / DUO Industrial pump dispensers with GK-7 controller / COMPACT BLUE K · SUPPLY KITS WITH CONTROLLER

COMPACT BLUE K · SUPPLY KITS WITH CONTROLLER

Adblue/Def Adblue/Def
COMPACT BLUE BD-30K 230 VAC · 60 users · 200 services in memory
19680-CF00000
COMPACT BLUE BD-30K 230 VAC · 130 users · 500 services in memory
19680-CF00001
COMPACT BLUE BD-30K 230 VAC · 1,000 users · 1,000 services in memory
19680-CF00002
COMPACT BLUE SB-K 230 VAC · 60 users · 200 services in memory *without pump
19650-CF00000

*Kit without pump to be connected to a submersible or displaced pump

COMPACT BLUE SB-K 230 VAC · 130 users · 500 services in memory *without pump
19650-CF00001

*Kit without pump to be connected to a submersible or displaced pump

COMPACT BLUE SB-K 230 VAC · 1,000 users · 1,000 services in memory
19650-CF00002

*Kit without pump to be connected to a submersible or displaced pump

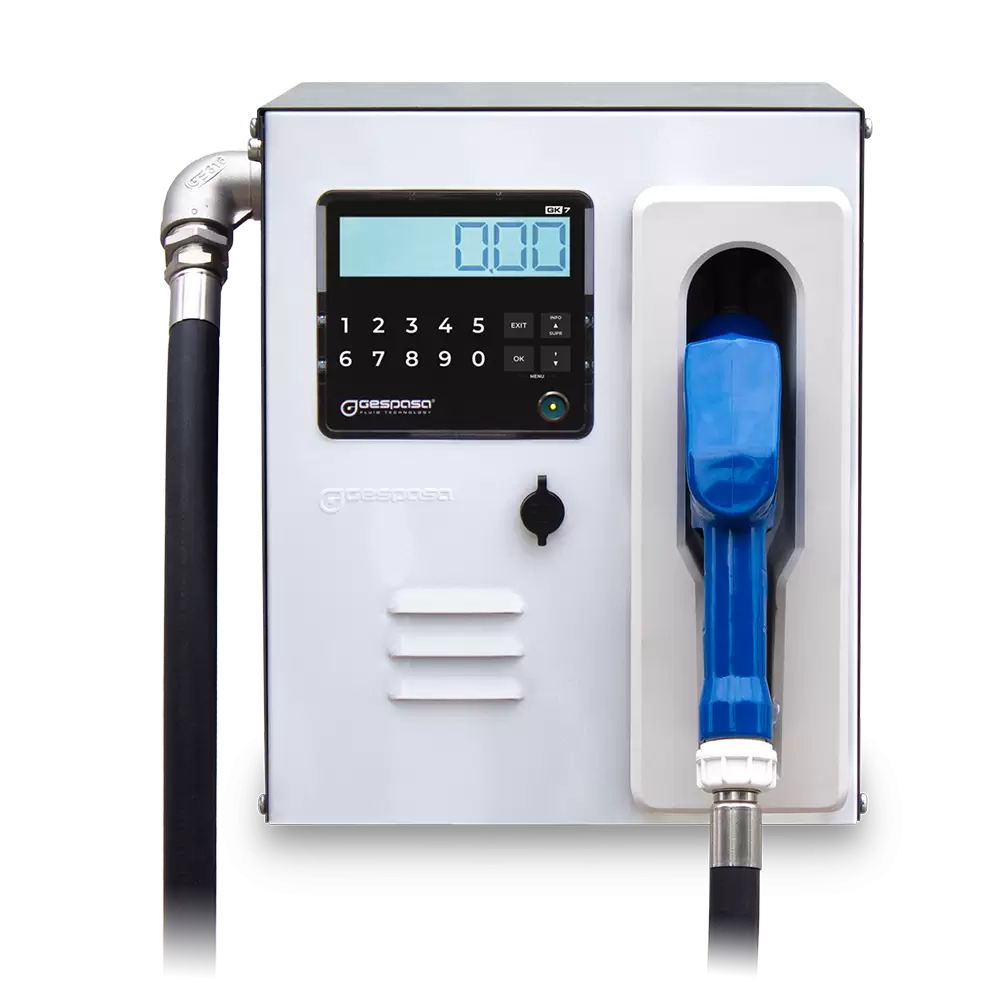

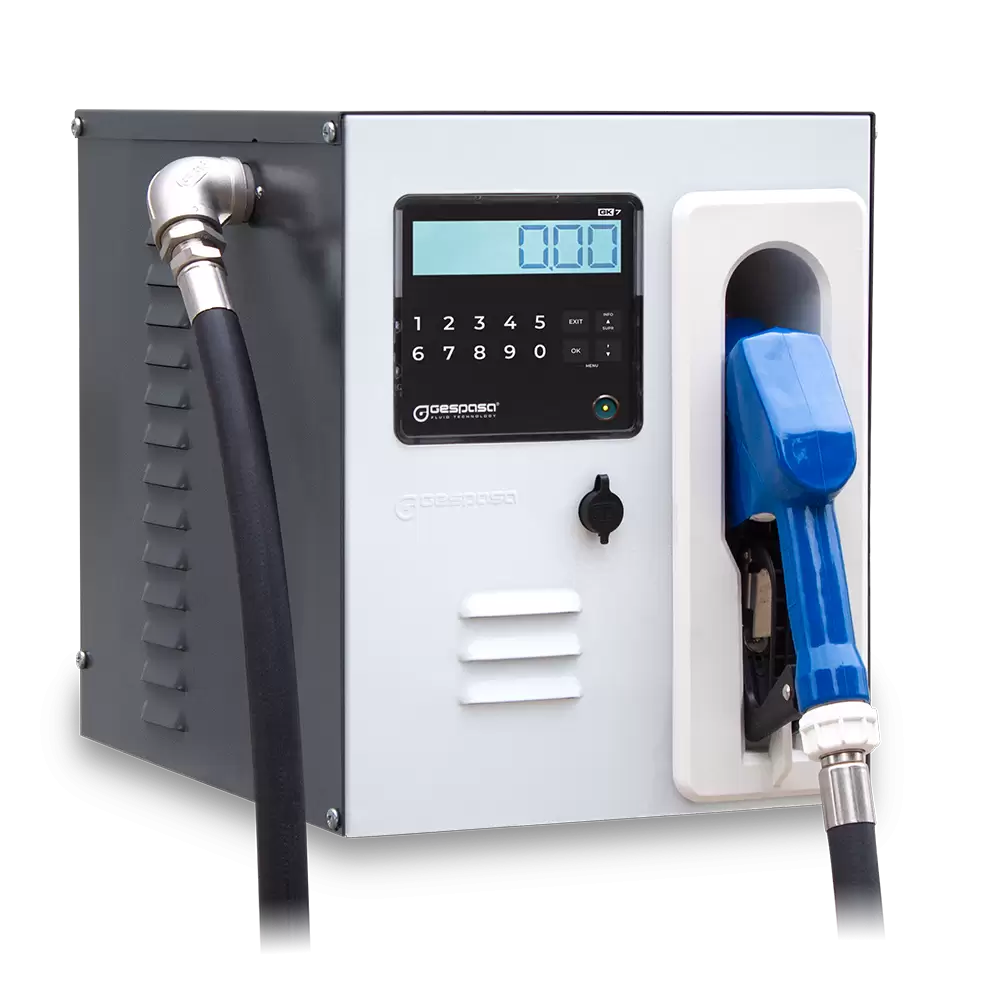

  • The COMPACT BLUE K electronic supply kits with controller are suitable for the AdBlue/DEF supply, measurement and control.
  • These kits are manufactured with compatible material with this type of fluid in order to avoid damages both the liquid and the parts that are in touch with it.
  • The GK-7 controller allows the supply only to authorised personnel and memorises all the services that the users and/or the vehicles do. The dispenser has connection to PC with software for consulting and managing the data of the users, the vehicles and the done supplies.

It is composed of:

CHASSIS:

  • Made of steel
  • Special interior and exterior treatment against corrosion
  • Finished with epoxid paint
  • Weatherproof

PUMP:

PULSER:

CONTROLLER:

  • GK-7 own consumption

NOZZLE

HOSE

  • 4 m Ø19 mm delivery hose special for AdBlue/DEF
  • Nozzle hanger with automatic switch to stop and start the pump

Size and weight (approx.):

  • Dim.: 410x460x410 mm (LxWxH)
  • Weight: 24,75 kg

    GKSuite

    GKSuite Software

    Management of supplies, users, vehicles and levels of your tanks

    USE

    • The GKSuite Software is the application to connect the GK-7 controller or the GENIUS level gauge to your PC or server.
    • It allows to manage the supplies, the users, the vehicles and the levels of your tanks.
    • It is required a communication kit that includes the GKSuite Software and the required converter for the connection of the GK-7 controller or the GENIUS level gauge to your PC.

    FEATURES

    • MANAGE, CONTROL AND LIMIT ACCORDING TO YOUR NEEDS

    Establish limits or balance by user, create groups of users and/or vehicles and get the supply lists by user and/or vehicle. It also allows the integrated management of the GENIUS level gauge.

    • EASILY CONFIGURABLE ALARMS

    They allow to control the tank level, the irregular uses, the consumption of the vehicles or other indicators you need. If you want, it is possible to receive the notice in your email.

    • AUTOMATIC COMMUNICATION WITH THE GK-7 CONTROLLER

    The communication between the GKSuite and the GK-7 is bidirectional. The data are typed in the PC and they are transferred to the GK-7. The configuration can be made manually or configure the GK-Suite so that it automatically communicates regularly.

    • CLIENT-SERVER VERSION

    The GKSuite C/S version allows its installation in a server for a simultaneous access of different users.

    • INTEGRATION WITH YOUR SOFTWARE OR ACCOUNTING SYSTEM

    The database of the GKSuite C/S is connected easily and automatically to other database.

    • CONFIGURATION AND CUSTOMISATION OF THE SOFTWARE

    Configuration of the language, currency, measurement unit (litres or gallons), identification system, ... It allows to assign different permissions of the different users of the software and several other options.

    FUNCTIONS

    Configuration

    • All the configuration can be made from the PC.
    • It allows to add your logo in the lists.
    • It allows to define how your GK-7 is going to work.

    Users and vehicles

    • Create groups.
    • Introduce or delete data.
    • Assign a limit or balance per user*.

    *not compatible with communication via iButton.

    • Assign the fluids to be supplied to the vehicle.
    • Assign the regular consumption of the vehicle.

    Stock

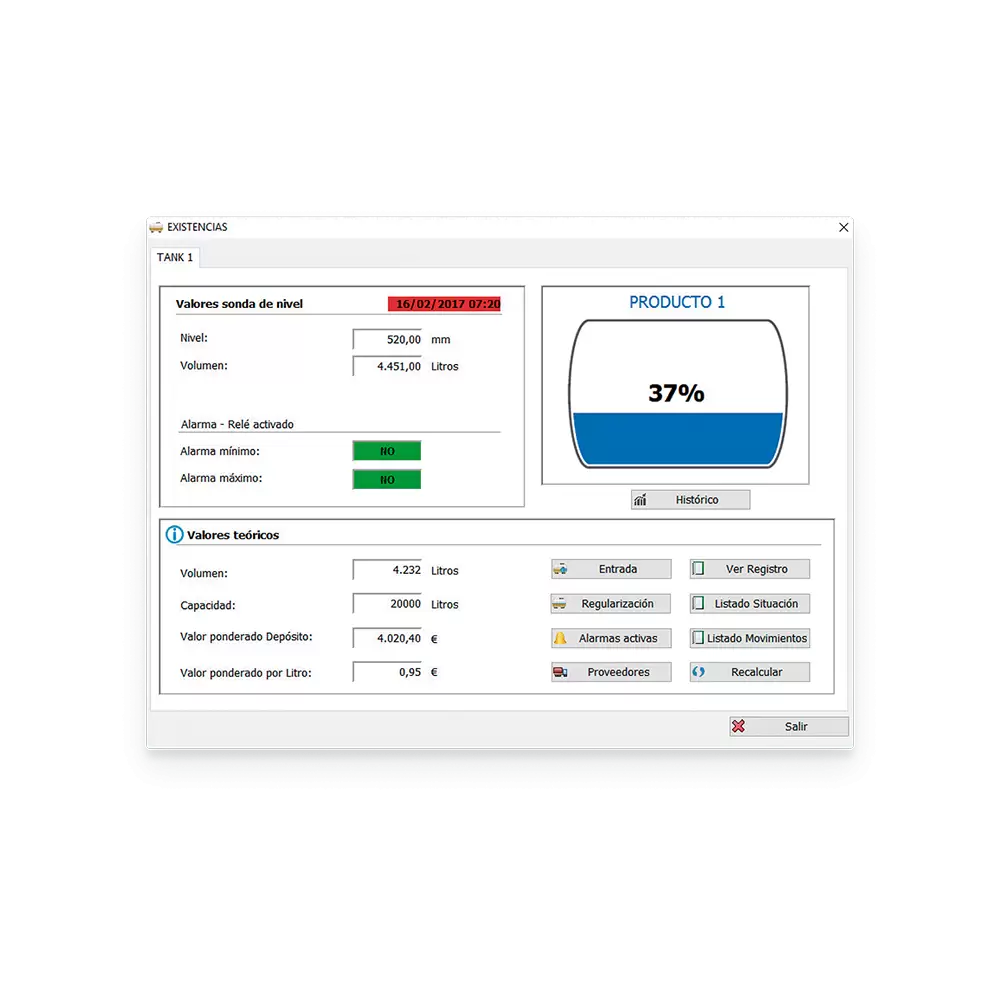

    • Consult the litres there are in the tank and their cost.
    • Type the fuel purchases.
    • Establish level alarms.
    • View the teorethical level or, by installing the GENIUS level gauge, the real level reading.

    Operators

    • Assign different users of the software with different profiles.
    • Limit the use of different areas to certain user.

    Alarms

    • Configure warnings of an irregular use.
    • Establish warnings for programmed actions: maintenance, tank filling, etc.
    • Receive a warning email: when the minimum level is reached, when the tank has been filled, when a user exceedes the supply limit, and so on.

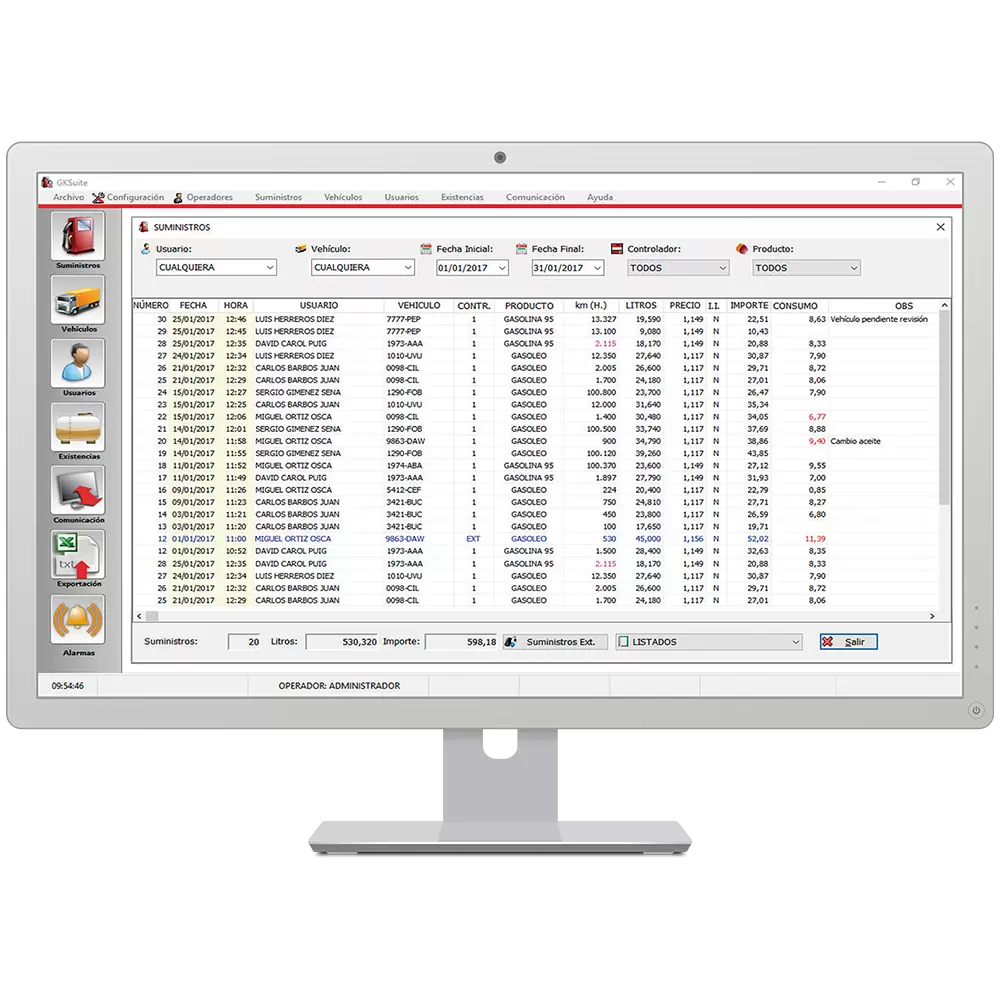

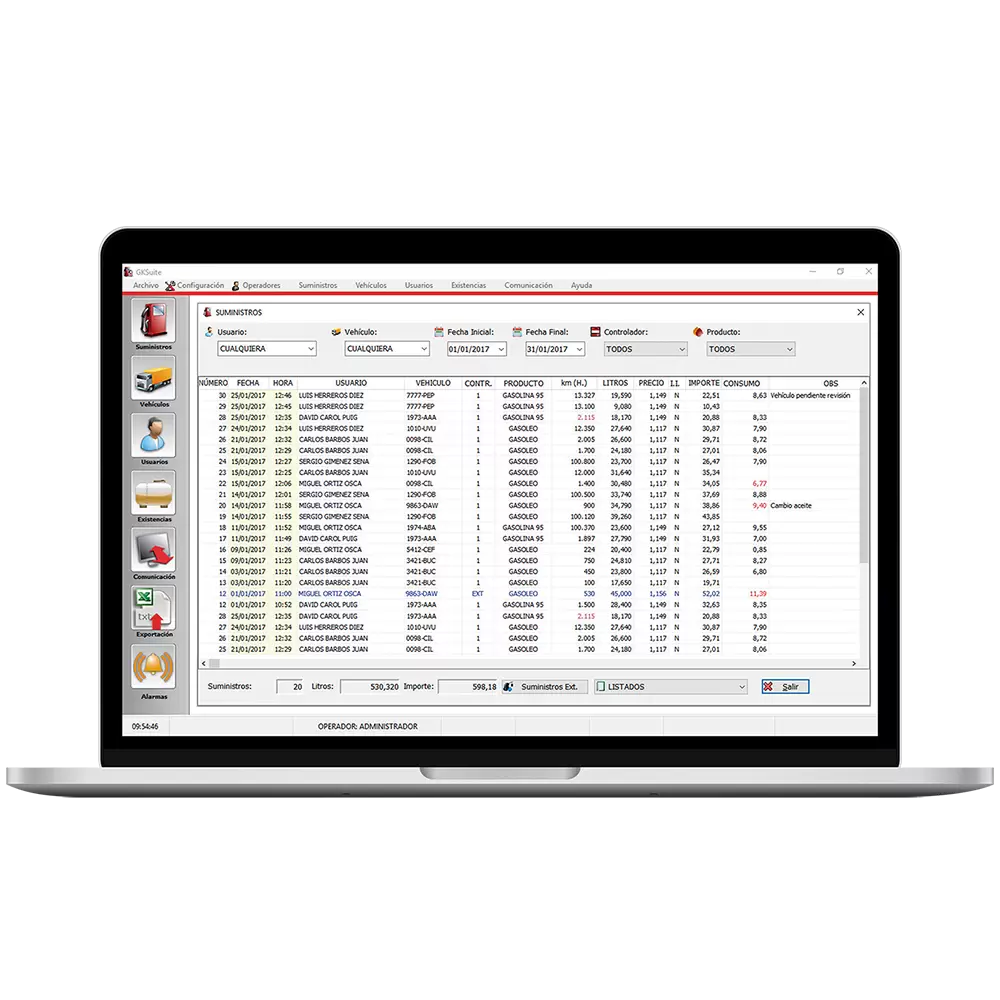

    Supply list

    • Customise your lists by user, vehicle, groups.
    • Summarised or detailed lists of the supplies and their real cost.

    Data Export

    • All the data and lists can be exported to files with *.txt or *.csv format
    • Input or external supplies
    • It is possible to type the supplies you have made in other service station or dispenser.
