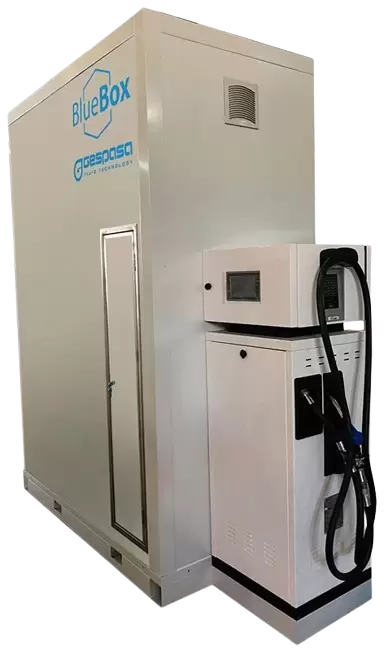

BLUEBOX EX-A

dispenser attached to the tank

Adblue/Def

Yeni

The BLUEBOX EX-A ECO are manufactured according to ISO 22241-3 standard and mainly designed for the installation of a dispenser attached to the tank, either for the own consumption or for retail sale. Its usual location is outdoors and they are suitable for service stations, transport and agricultural cooperatives, quarries, public works, etc.

SPECIFICATIONS
• High density polythene tank
• 30 mm insulated panel
- Fire Classification: CS3d0
- Overall heat transfer coefficient: 0.662 W/m²K
• Double vacuum filter
• Monoblock galvanised steel base
• Stainless steel adapters, valves and pipe
• 2” stainless Camlock coupling filling
• Analogical level indicator
• Access lock door
• Optical warning of maximum-minimum capacity
• To choose the dispenser location

PUMP
• Suitable for AdBlue, AUS32, DEF
• Flow: 70 l/min
• Power 0.75 HP 230 V single-phase
• Protection IP-68 · class F
• Stainless steel
• Security switch
• Submersible pump

OPTIONAL

AdBlue retail sale dispenser
Telemetry
Corporate image
Stock control
Dual system
TODO filling valve

BLUEBOX EX-A 15 ECO · Capacity 1,500 litres

Dim. (approx.): 2,230x870x2,180 mm (length x width x height)

BLUEBOX EX-A 20 ECO · Capacity 2,000 litres

Dim. (approx.): 2,220x1,050x2,180 mm (length x width x height)

BLUEBOX EX-A 30 ECO · Capacity 3,000 litres

Dim. (approx.): 2,830x1,140x1,950 mm (length x width x height)

BLUEBOX EX-A 50 ECO · Capacity 5,000 litres

Dim. (approx.): 2,880x2,010x2,280 mm (length x width x height)
