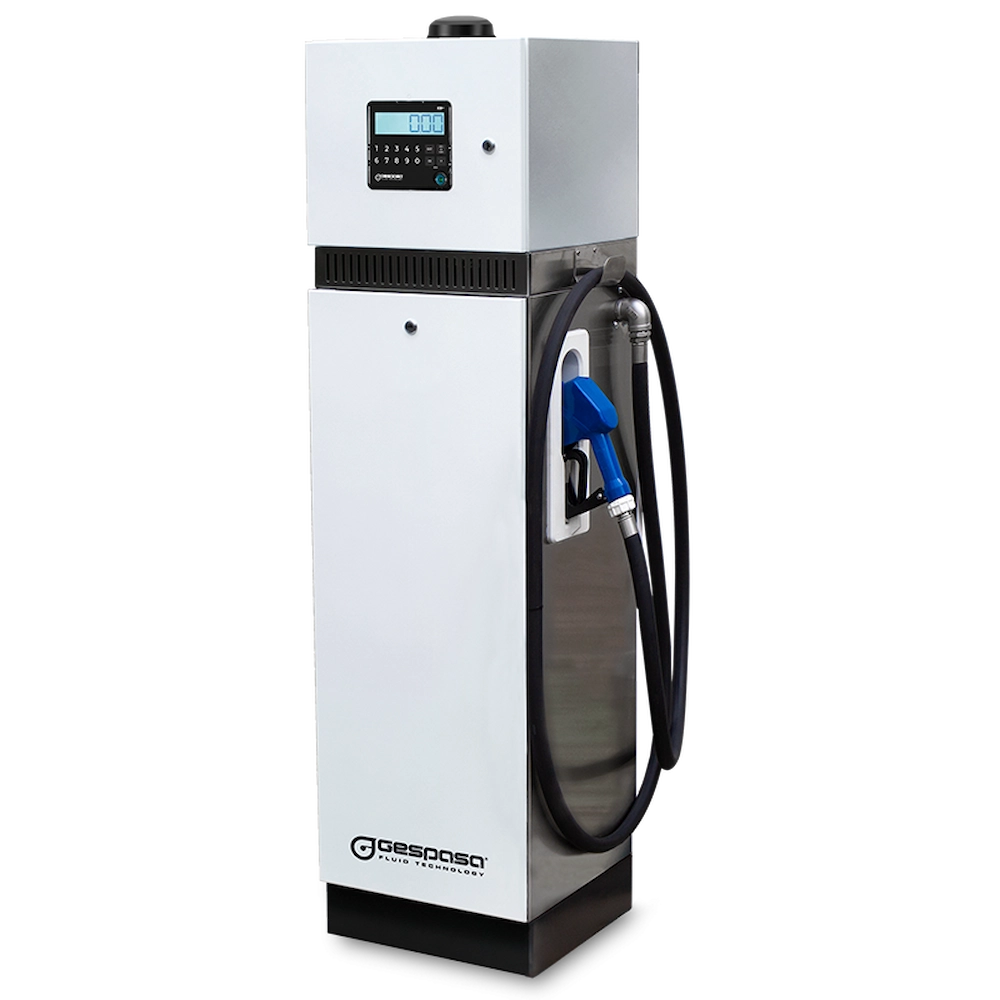

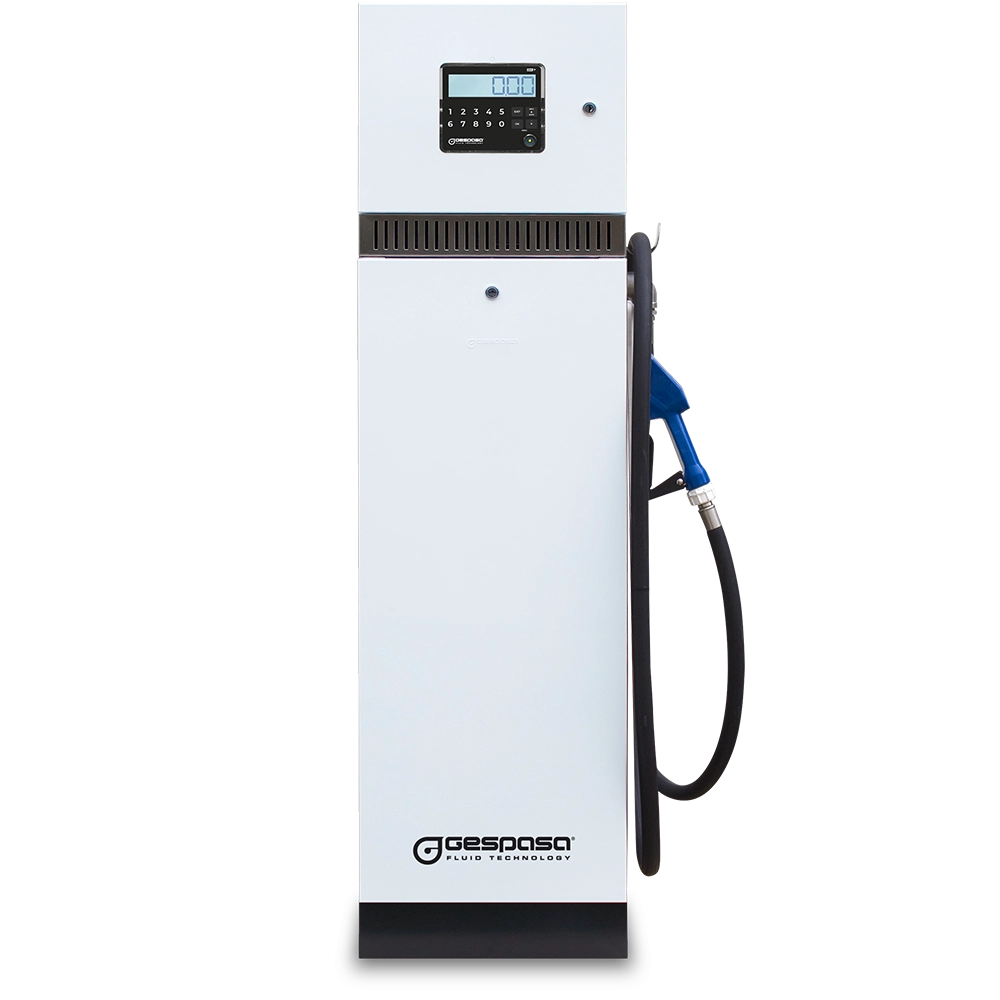

TOTEM BLUE Plus · SUPPLY KITS WITH CONTROLLER

*Kit without pump to be connected to a submersible or displaced pump

*Kit without pump to be connected to a submersible or displaced pump

• The TOTEM BLUE Plus electronic supply kits with controller are suitable for the AdBlue/DEF supply, measurement and control.
• The GK-7Plus controller allows the supply only to authorized personnel and memorizes all the services that the users and/or the vehicles do. The supply kit has the Internet connection. The user can manage the dispenser data like users, vehicles and done supplies from any PC, which is connected to the Internet, entering into the control web site www.dieselplus.net/ with a user name and a password.
• These kits are manufactured with compatible material with this type of fluid in order to avoid damages both the liquid and the parts that are in touch with it.

Composed of:

CHASSIS

• Column for its direct fixation to the ground without bases or additional accessories
• Main body made of stainless steel, doors and heading made of steel with polyurethane paint
• Interior and exterior treatment to protect against corrosion
• Weatherproof

PUMP

• BD-30 230 VAC Diaphragm pump

PULSER:

• MGI-40BLUE · Accuracy ±0.8 %

SOFTWARE

• DIESELPLUS

NOZZLE

• PA-60U automatic

HOSE

• 4 m Ø19 mm delivery hose special for AdBlue/DEF
• Nozzle hanger with automatic switch to stop and start the pump

Size and weight (approx.):

• Dim.: 460x400x1,500 mm (length x width x height)
• Weight: 54 kg



  DIESELPLUS

  DIESELPLUS SOFTWARE

  Cloud software for the management of supplies, users, vehicles and levels of your tanks

  CONTROL AND ACCESS

  • Control the level of your tanks and the supplies made on your dispensers from anywhere, anytime.
  • Access the software from any device with Internet connection or fromthe App Dieselplus.

  CONFIGURATION AND INSTALLATION

  • Assign the safety limits to your users and/or vehicles.
  • Configure your level alarms, irregular supply alarms, and program the maintenance of your fleet.
  • Plug & Play. Wireless installation, without software.

  DATA COLLECTION AND LISTS

  • Automatically receive the lists you are interested on your email.
  • Have your data safe without worrying.
  • Integrate all the data with your own software, ERP or accounting system.
  • Automatically import and/or export the data.

  DIESELPLUS.NET

  The new generation of On-Demand software (SaaS) for the fleet and supply management
  It is not necessary any software installation because it is an online service. The application can be used from any device connected to the Internet any time.
  The main DIESELPLUS.NET function is to manage vehicle supplies like lorries, coaches, taxis, vehicle fleets and so on, being able to be applied to other type of applications like the supply of water, chemical products or other type of fluids.

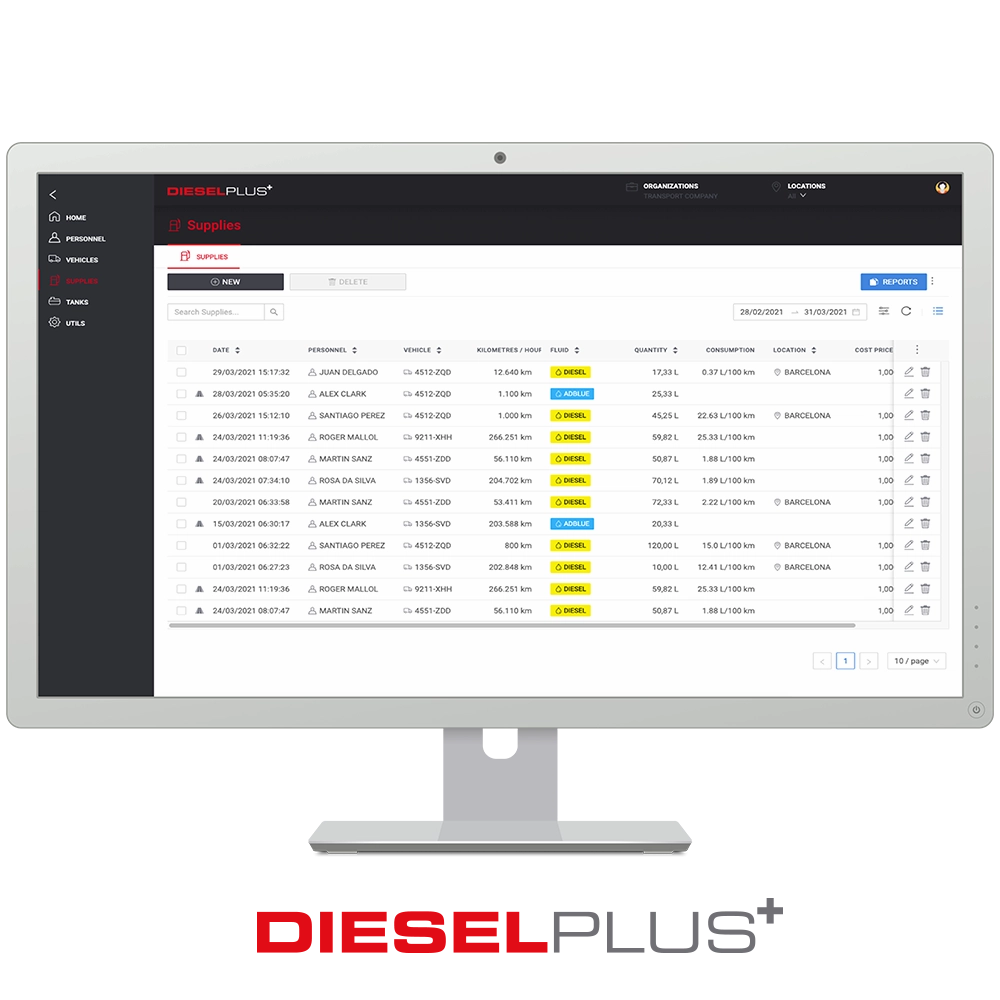

  The control tools such as the supply list by vehicles or users allow to know the exact costs of each unit and even if there is any irregular consumption.
  DIESELPLUS also gives different tools to manage the stocks, the suppliers, the vehicles and their maintenance, the users, ...

  AUTOMATIC WIRELESS COMMUNICATION

  The dispensers with GK-7Plus controller are automatically communicated M2M with the DIESELPLUS servers. This communication is automatic without any user.

  MULTIUSER

  The software can be used by different users at the same time. Each user will be able to access only to the areas that have been previously assigned to them.
  For example, there may be a user who makes the user and vehicle control, and another one who controls the fuel purchases and stock.
  For the shared service management (like stock control ...), it can be established a hierarchical level of operators with different privileges and restricted accesses (Administrator, Supervisor, final user ...).

  MULTISTATION

  One or more users can control different dispensers, which could be placed in different geographical zones and share or not users and vehicles.

  MULTIACCESS / MULTIINSTALLATION

  All the users who have user name and password can access the DIESELPLUS software from any computer connected to the Internet at any time.
  It is allowed to manage the information of many installations from the same operator.

  SAFE DATA

  Any data is automatically communicated with the DIESELPLUS server.
  This minimizes the risk of data loss in the event of controller/dispenser breakdown or in the event of problems with the computing equipment of the end user.

  REPORT ISSUE

  Lists and statistics for an easy interpretation of the information regarding to the alarms, levels, history and so on.

  AFTER-SALES or TECHNICAL SERVICE – E-MAIL OR PHONE

  Direct email or telephone number for the after-sales service in order to solve any doubt or incidence.

  AUTOMATIC UPDATING

  The user will always have the last updated program version automatically without making any type of intervention.

  ADDITIONAL FIELDS

  Configure the questions you want the dispenser makes to the users: Plate number? Working order? Delivery note number? DieselPlus will create the additional fields in the data base.

  ALARMS AND TASKS

  DieselPlus tells you what to do.
  Program your tasks and notifications in DieselPlus.
  You will find an extended task management in DieselPlus. You can plan everything you need to do so that DieselPlus warns you by email and do not stop doing anything. DieselPlus allows you to program different type of tasks such as:
  Tasks and notifications by date
  Tasks and notifications by kilometres (or hours)
  Tasks and notifications of irregular filling and/or emptying of tanks
  Configure your level alams so you do not run out of fuel.
  Alarms of irregular consumption or fraudulent use of the installation so that the system sends you an email when there is any indication of an incidence.

  CONTROL OF DISPENSERS

  DieselPlus is compatible with the GESPASA GK-7Plus controllers that can connect to any pump or dispenser.

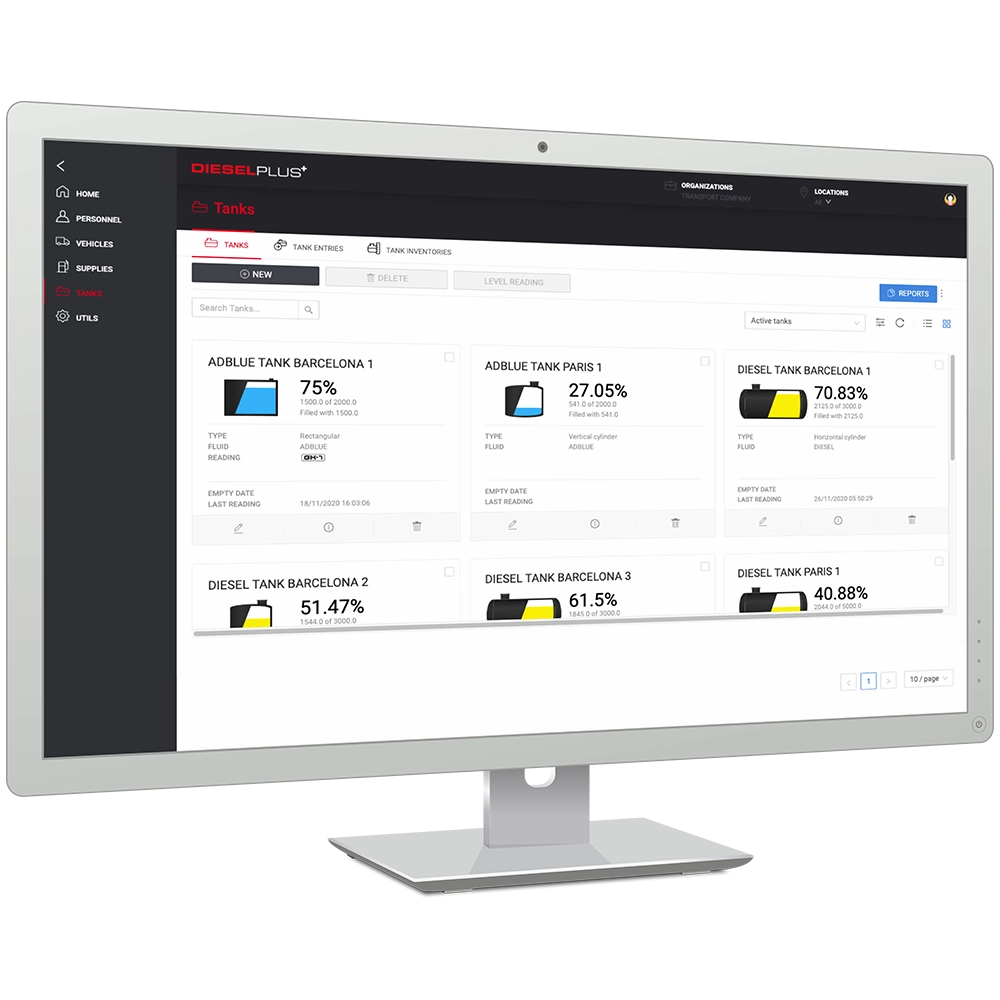

  TANK LEVELS

  It is possible to connect to DieselPlus the DOLPHIN level gauge or other compatible gauges compatible with the TANK MODEM PLUS KIT: GENIUS, Progauge, Veeder-Root, ATG, PETROLEVEL, TLC.
