Customer's request:
Fuel filtration to achieve ISO 11 filtration code.
Line flow: 150 l/min
Solution:

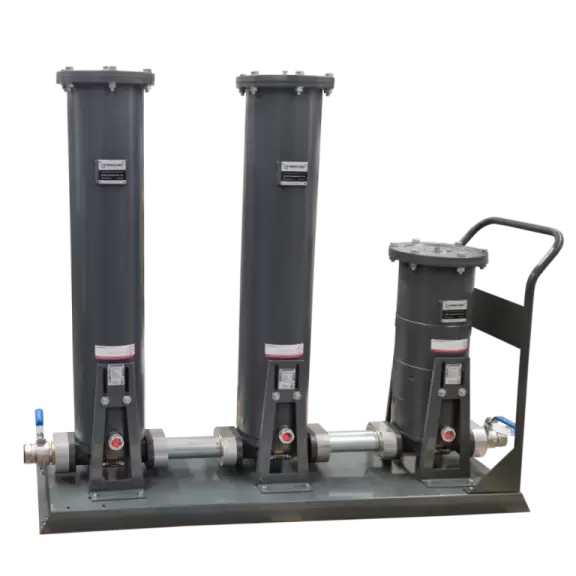

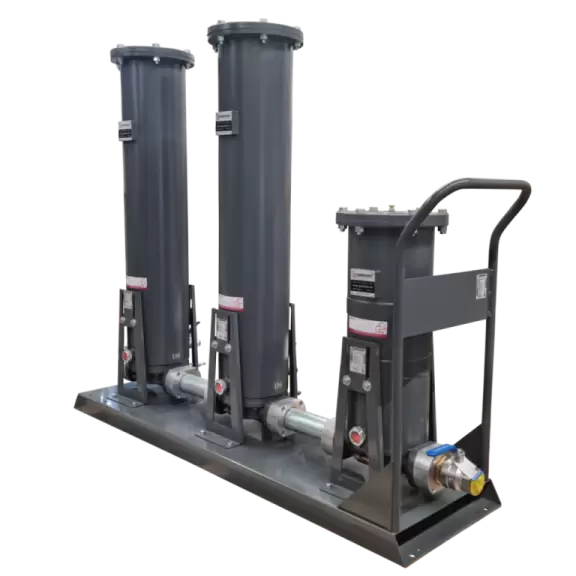

3 in-line filters are mounted on a bench to achieve 3-stage filtration:
1st stage: FG-300 with beta 1000 cartridge at 50 microns.
2nd stage: FG-450 with beta 1000 cartridge at 30 microns, water absorbent.
3rd stage: FG-450 with glass microfiber cartridge, beta 1000 at 2.5 microns.
With this configuration we ensure the filtration of 99.9% of particles larger than 2.5 microns, and by carrying out the filtration in three stages, apart from increasing the filtration efficiency, we prolong the life of each of the installed cartridges.
